Our Linear Swivels Are Lit!

Our Linear Swivels Are Lit!

Swivel Me Right!

Swivel Me Left!

Swivel Me Mighty!

Swivel Me Brighty!



2′ Linear Lights w/ 90° Swivel



We’ve given you an introduction to some of the workhorses from our 2′ Linear light Collection. Now that we’ve established the reliable practicality of our Linears, the only thing better than one of our linear lights is our  linear lights with 90 degrees of swivel.



The addition of our 90° swivel (ESW) brings a flexibility to lighting that allows for a more precise angle of illumination.



Once the angle is achieved, easily tighten the wing nut for a permanent and secure alignment. The ESWs flexibility also allows for easy re-adjustment if the need arises.







We’re highlighting a few examples from our 2′ Linear Collection’s swivel enhanced fixtures. Linear Lights #5744/861 ESW and #5744/872 ESW are 2 wall mounted fixtures with the added flexibility of the ESW. While the Linear Light #5744/1873 ESW is a good example of a swivel affixed linear post light.



With their smaller compact size (2′), our Linear Lights have the added benefit of being installed in areas and environments where a larger silhouette just won’t do. And with the addition of a 90° swivel these “little ones” will be casting a strong, perfectly angled and secure light.



As we’ve said before. They’re small, but mighty. And as bright as any big brother. Why you might even say they’re Mighty Brighty!

2′ Linear Lights w/ 90° Swivel (ESW)

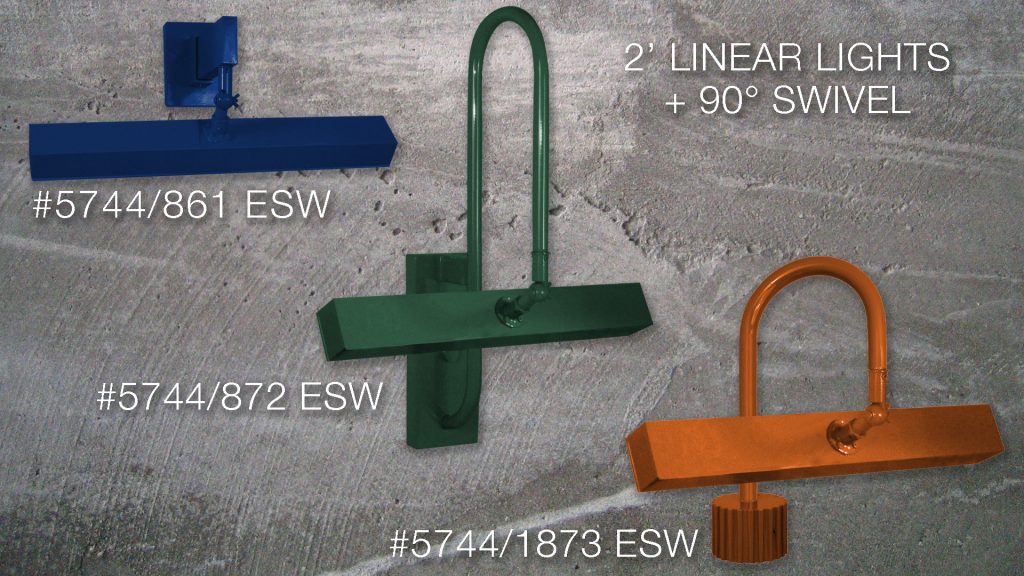

Examples of 2' Linear Lights w/ 90 degree Swivel (ESW)
Examples of 2′ Linear Lights w/ 90 degree Swivel (ESW)

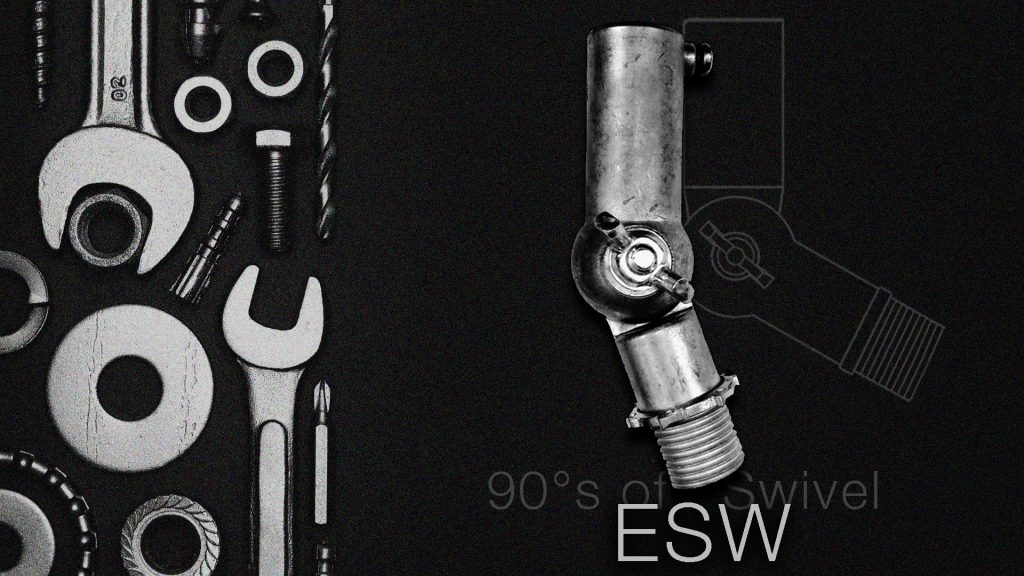

The ESW is a 90° bi-directional swivel that allows for a precise angle of illumination. The swivels flexibility also allows its position to be modified at any time.



ESW 90 degree swivel
Enhance Your Linear Lights w/ a 90° Swivel (ESW)



Our 2′ Linear Lights Pack a Punch

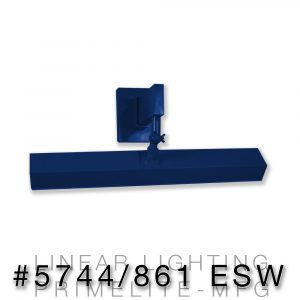

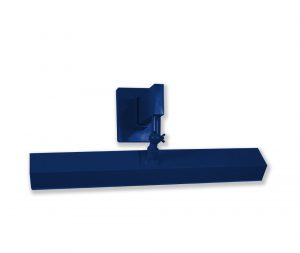

 2′ Linear Light w/ Swivel #5744/861 ESW



linear fixture #5744/861 ESW
Linear Light w/ 90° Swivel #5744/861 ESW

Linear Light #5744/861 ESW

Linear #5744/861 ESW was designed to offer bright and efficient light where needed. The addition of a 90° swivel offers an exactitude in the angle of illumination. Its simple rectangular mount delivers an industrial design styling.



With a 24″ light box, these fixtures contain LED25 integrated diodes and drivers offering a bold output of strong, bright and inviting light. Choose lens color; white, clear or frosted. Your order comes ready to mount and is weather rated for general exterior installations.



Technical Drawing: #5744/861 ESW

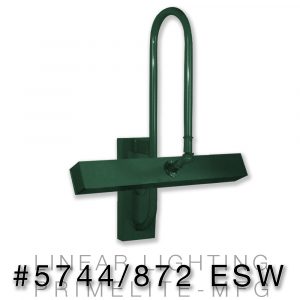

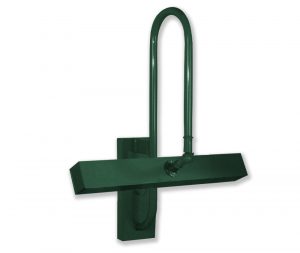

 2′ Linear Light w/ Swivel #5744/872 ESW



Linear Light w/ 90° Swivel #5744/872 ESW
Linear Light w/ 90° Swivel #5744/872 ESW

Linear Light #5744/872 ESW

With its graceful arch and 90° swivel, #5744/872 brings a stylish and forceful light to our Linear Collection. The inclusion of a swivel allows for pinpoint precision of illumination.



With a 24″ light box, these fixtures contain LED25 integrated diodes and drivers offering a bold output of strong, bright and inviting light. Choose lens color; white, clear or frosted. Your order comes ready to mount and is weather rated for general exterior installations.



Technical Drawing: #5744/872 ESW

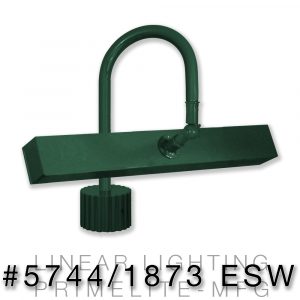

 2′ Linear Light w/ Swivel #5744/1873 ESW

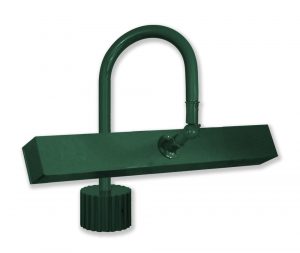

Linear Light w/ 90° Swivel #5744/861 ESW
Linear Light w/ 90° Swivel #5744/1873 ESW

Linear Light #5744/1873 ESW

#5744/1873 ESW is a smaller linear light featuring a 90° swivel. Its shapely arch and integrated strip light are attached to a mount fitted for 3″ diameter posts.



With a 24″ light box containing 25W LED integrated diodes and drivers offering a bold output of strong, bright and inviting light. Choose lens color; white, clear or frosted. Your order comes ready to mount and is weather rated for general exterior installations.



Technical Drawing: #5744/1873 ESW

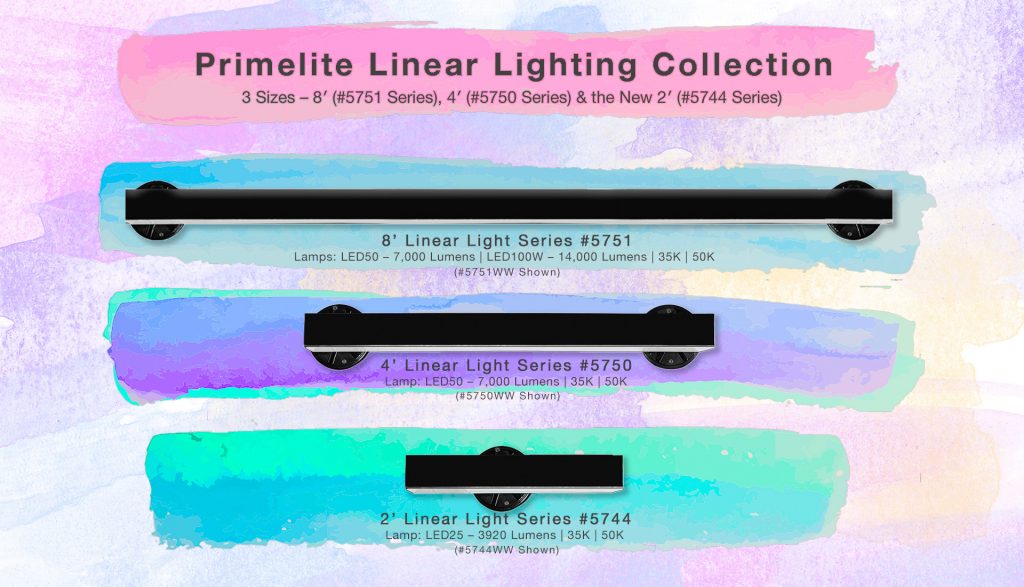

Our Linear Lighting collection is now available in 3 sizes – 8′ (#5751 Series), 4′ (#5750 Series) & the new 2′ (#5744 Series). Offering solutions our clientele have come to expect.
Linear Lighting collection is available in 3 sizes – 8′ (#5751 Series), 4′ (#5750 Series) & the new 2′ (#5744 Series)





Our Linear Lighting Collection is now available in 3 sizes – 8′ (#5751 Series), 4′ (#5750 Series) & the new 2′ (#5744 Series). Offering solutions our clientele have come to expect. These fixtures have been “primarily designed to improve energy efficiency and extend life” with simple yet elegant form factors for aesthetics, light optics, adaptability, and control. The inclusion of our ESW swivel allows for a precise illumination across our Linear Collection.

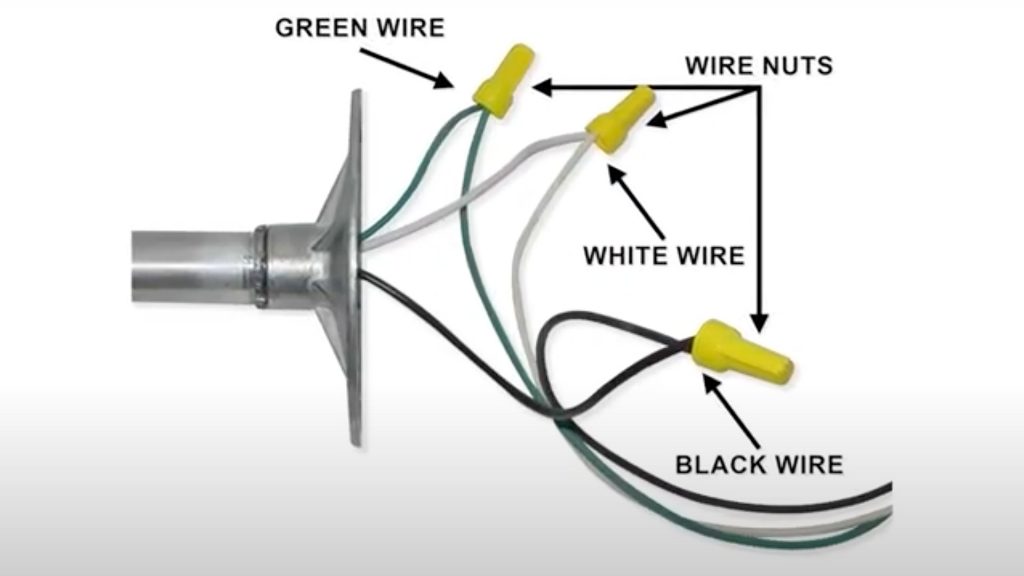

Basic 3 cord wiring
Installation: Basic 3 Cord Wiring



Installation



Primelite’s Linear Collection comes pre-wired and ready to install with a basic 3 cord installation. Simply put – our 2′ linear lights need only 1 outlet box (#5744 Series). The 4′ and 8′ linear lights (#5750 & #5751 Series) need 2 outlet boxes. One electrified. The other, just for fixture stability. Our Linear Lights come pre-wired, pre-tested and ready to hang! Mount! Install! Whatever you call it. We’re there!

Linear. Simple. Affordable. Strong. Easy. Dependable.



Our linear lamps are handcrafted and assembled in our New York warehouse and offer years of stylish reliability. Constructed of strong aluminum, our lights are cost effective and budget friendly. All linear fixtures include integrated LEDs, drivers, all wiring and come with a choice of lens color; white, clear or frosted. The fixtures are weather rated for general exterior installations and arrive at the job site ready to go!



Introduce a touch of color with any of our 29 powder coated colors, including chic metallic-style finishes: nickel, chrome, bronze, brass, galvanized and more.

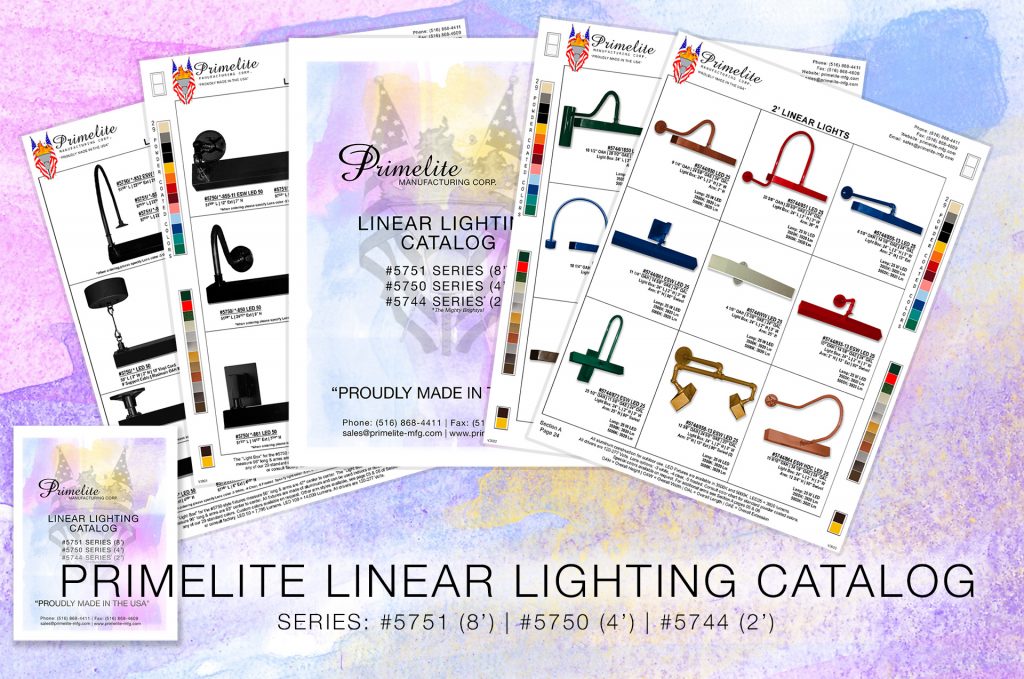

2' Linear Lighting Catalog
Primelite’s 2′ Linear Lighting Catalog



Catalog: Primelite’s 2′ Linear Lighting Series (#5744)

Catalog: Primelite’s 4′ & 8′ Linear Lighting Series (#5750 & #5751)

Catalog: Primelite’s Entire Linear Lighting Series



TechSpecs

#5744/861 ESW

Linear Light w/ 90° Swivel #5744/861 ESW
Primelite Catalog: #5744/861 ESW

  • TypeLinear Light
  • Lamp: LED25 | 24″ LED Diode Strip
  • Lumens: 3920
  • Lens: White | Clear | Frosted
  • Size: 111/4” OAH |  24” OAL | 145/8” OAE
  • Construction: Aluminum
  • 90° Swivel: ESW
  • Installation: Commercial, Residential Environments | Smaller, Tight Spaces
  • Finishes: Choice of 29 powder coated colors. Custom finish upon request.
  • Technical Drawing: #5744/861 ESW



#5744/872 ESW

Linear Light w/ 90° Swivel #5744/872 ESW
Primelite Catalog: #5744/872 ESW

  • TypeLinear Light
  • Lamp: LED25 | 24″ LED Diode Strip
  • Lumens: 3920
  • Lens: White | Clear | Frosted
  • Size: 251/2” OAH |  24” OAL | 113/8“Ext
  • Construction: Aluminum
  • 90° Swivel: ESW
  • Installation: Commercial, Residential Environments | Smaller, Tight Spaces
  • Finishes: Choice of 29 powder coated colors. Custom finish upon request.
  • Technical Drawing: #5744/872 ESW



#5744/1873 ESW

Linear Light w/ 90° Swivel #5744/1873 ESW
Primelite Catalog: #5744/1873 ESW

  • TypeLinear Light
  • Lamp: LED25 | 24″ LED Diode Strip
  • Lumens: 3920
  • Lens: White | Clear | Frosted
  • Size: 15” OAH |  24” OAL | 9″ Ext
  • Construction: Aluminum
  • 90° Swivel: ESW
  • Mount: 3′ Post | Pole
  • Installation: Commercial, Residential Environments | Smaller, Tight Spaces
  • Finishes: Choice of 29 powder coated colors. Custom finish upon request.
  • Technical Drawing: #5744/1873 ESW





Technical Drawings

Linear Lighting #5744 Series

PDF Catalog : 2′ Linear Lighting #5744 Series

Technical Drawings: Whole Series – One PDF File







Copyright 2022 Primelite Mfg.







Posted on

The Illuminance of Our Linear Lighting

The Illuminance of Our Linear Lights

🦇 No Evening Can Resist 🦇

🦇 The Illuminance Of 🦇

🦇 Our Linears 🦇

🦇

2′ Post Mount Linear Lights 🎃



It’s always a 🦇 “thriller” 🦇 for us when we get to bring you the latest from our Linear Lighting Collection. Come and explore the newest fixtures from our 2′ Linear Lighting Series – Post Mount Linear Lights #5744/1850 and #5744/1855. You’ll be 🦇 “thrilled” 🦇 to find that these spectacular “little vessels of illuminance” are ready to offer the best in stylish, functional and affordable illumination.



With its smaller and compact size (2′), these Post Mounts can be installed into areas, and environments, where a larger silhouette wouldn’t work. When mounted atop any of our 3″ aluminum poles or posts, these “little ones” will cast a strong and secure light on the world below. They’re small, but mighty. And as bright as any big brother. Why you might even say they’re Mighty Brighty!





And Remember, “Good things, do come in smaller packages”!





Its a Thriller to introduce Post Mount Linear Light #5744/1850





Securely mounted high above streets, walkways, parks and parking, #5744/1850 and #5744/1855 will bring an efficient, and sufficient, light to any exterior setting. With its included LED25 light strip, each fixture outputs a full 3920 lumens of strong, secure luminance packed into its compact profile.





Our Linear Lighting collection is now available in 3 sizes – 8′ (#5751 Series), 4′ (#5750 Series) & the new 2′ (#5744 Series). Offering solutions our clientele have come to expect.
Linear Lighting collection is available in 3 sizes – 8′ (#5751 Series), 4′ (#5750 Series) & the new 2′ (#5744 Series)





Our Linear Lighting Collection is now available in 3 sizes – 8′ (#5751 Series), 4′ (#5750 Series) & the new 2′ (#5744 Series). Offering solutions our clientele have come to expect. These fixtures have been “primarily designed to improve energy efficiency and extend life” with simple yet elegant form factors for aesthetics, light optics, adaptability, and control.





Its a Thriller to introduce Post Mount Linear Light #5744/1855

Our 2′ Linear Lights Pack a Punch 🎃

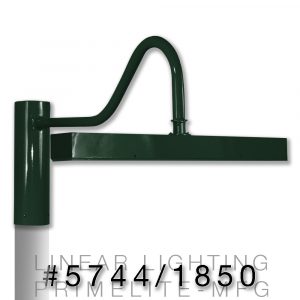

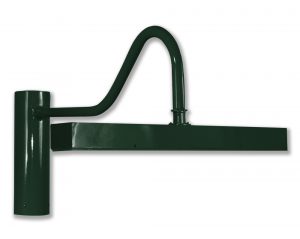

🎃 2′ Linear Post Mount #5744/1850



Post Mount Linear Light #5744/1850
Post Mount Linear Light #5744/1850

Post Mount Linear Light #5744/1850: Our post mounted sign light comes complete with gooseneck arm #1850. Ready to offer a strong and efficient light our Post Lights are strong little guardians for security and safety along town streets, walkways, parks and other public spaces. They are designed to fit any of the wide selection of styles of our 3″ posts and poles



With a 24″ light box, these fixtures contain LED25 integrated diodes and drivers offering a bold output of strong, bright and inviting light. Choose lens color; white, clear or frosted. Your order comes ready to mount and is weather rated for general exterior installations.



The #5744/1850 model is also available with an added 90 degree swivel (ESW), #5744/1850 ESW, allowing a more precise angle of  illumination.



Technical Drawing: #5744/1850 #5744/1850 ESW





our 2′ Linear Lights ensure a long lasting, energy efficient and cost effective solution to your lighting design needs.

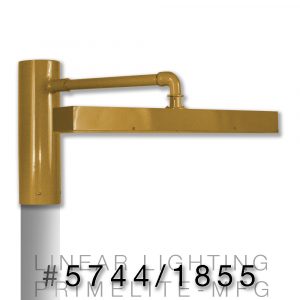

🎃 2′ Linear Post Mount #5744/1855

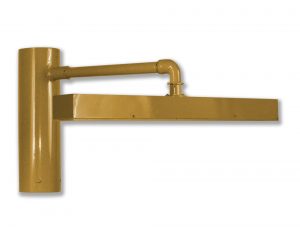

Post Mount Linear Light #5744/1855
Post Mount Linear Light #5744/1855

Post Mount Linear Light #5744/1855: Like its compadre above, #5744/1855 brings a compact solution to any lighting project. Its 24″ light box comes complete with a LED25 integrated diode light strip, drivers and all wiring. Arrives to the job site ready to mount.

Designed to fit any of our 3″ posts and poles and ships with a choice of lens color; white, clear or frosted. The fixture is weather rated for general exterior installation.



The #5744/1855 model is also available with the addition of a 90 degree swivel (ESW), #5744/1855 ESW, offering a more precise angle of  illumination.



Technical Drawings: #5744/1855 | #5744/1855 ESW





Basic 3 cord wiring
Installation: Basic 3 Cord Wiring



Installation 🎃



Primelite’s Linear Collection comes pre-wired and ready to install with a basic 3 cord installation. Simply put – our 2′ linear lights need only 1 outlet box (#5744 Series). The 4′ and 8′ linear lights (#5750 & #5751 Series) need 2 outlet boxes. One electrified. The other, just for fixture stability. Our Linear Lights come pre-wired, pre-tested and ready to hang! Mount! Install! Whatever you call it. We’re there!

Linear. Simple. Affordable. Strong. Easy. Dependable. 🎃



Our linear lamps are handcrafted and assembled in our New York warehouse and offer years of stylish reliability. Constructed of strong aluminum, our lights are cost effective and budget friendly. All linear fixtures include integrated LEDs, drivers, all wiring and come with a choice of lens color; white, clear or frosted. The fixtures are weather rated for general exterior installations and arrive at the job site ready to go!



Introduce a touch of color with any of our 29 powder coated colors, including chic metallic-style finishes: nickel, chrome, bronze, brass, galvanized and more.

🦇 Look-it! 🦇

🦇 “Its Freaken Bats!” 🦇

🦇 I Love Halloween! 🦇





2' Linear Lighting Catalog
Primelite’s 2′ Linear Lighting Catalog



Catalog: Primelite’s 2′ Linear Lighting Series (#5744)

Catalog: Primelite’s 4′ & 8′ Linear Lighting Series (#5750 & #5751)

Catalog: Primelite’s Entire Linear Lighting Series



TechSpecs

#5744/1850 🎃 | #5744/1850 ESW 🎃

linear light #5744/
Primelite Catalog: #5744/1850

  • Also available with 90° swivel –#5744/1850 ESW
  • Technical Drawing: #5744/1850 ESW

#5744/1855 🎃 | #5744/1855 ESW 🎃

linear light #5744/1855
Primelite Catalog: #5744/1855



  • Also available with 90° swivel –#5744/1855 ESW
  • Technical Drawing: #5744/1855 ESW





Technical Drawings

Linear Lighting #5744 Series

PDF Catalog : 2′ Linear Lighting #5744 Series

Technical Drawings: Whole Series – One PDF File







Copyright 2022 Primelite Mfg.







Posted on

We Made You L👀K! Up! #2

We Made You Look Pendant #5744

We Made You L👀k!

Up!



2′ Pendant Linear Light 👀



Look Up! ☝️ There’s a light to brighten the way.

Look Up! ☝️ Hanging stylishly from the rafters above, our new Linear Pendant #5744.

Look Up! ☝️Floating above, a sleek 24″ linear head suspended from strong and secure 18″ chains.

Look! ☝️ ‘Cause We Made You Look. Up!



Look up and explore the latest fixture in our new 2′ Linear Lighting Series – Linear Pendant Light #5744. These soaring “little vessels of illuminance” are ready to offer the best in stylish, functional and affordable illumination.



With a smaller compact size (2′), our Pendants can be installed in areas, and environments where a larger silhouette just won’t do. Suspended from 2 x 18″ chains, these “little ones” cast a strong and secure light.



They’re small, but mighty. And as bright as any big brother. Why you might even say they’re Mighty Brighty!





And Remember, “Good things, do come in smaller packages”!









Securely suspended above workspaces, offices, commercial spaces, and more. These beauties will bring an efficient, stylish and sufficient light to any environment. With its included LED25 light strip, each fixture outputs a full 3920 lumens of bright luminance packed into its compact profile.





Our Linear Lighting collection is now available in 3 sizes – 8′ (#5751 Series), 4′ (#5750 Series) & the new 2′ (#5744 Series). Offering solutions our clientele have come to expect.
Linear Lighting collection is available in 3 sizes – 8′ (#5751 Series), 4′ (#5750 Series) & the new 2′ (#5744 Series)





Our Linear Lighting Collection is now available in 3 sizes – 8′ (#5751 Series), 4′ (#5750 Series) & the new 2′ (#5744 Series). Offering solutions our clientele have come to expect. These fixtures have been “primarily designed to improve energy efficiency and extend life” with simple yet elegant form factors for aesthetics, light optics, adaptability, and control.

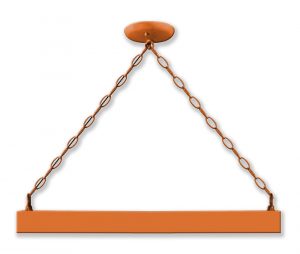

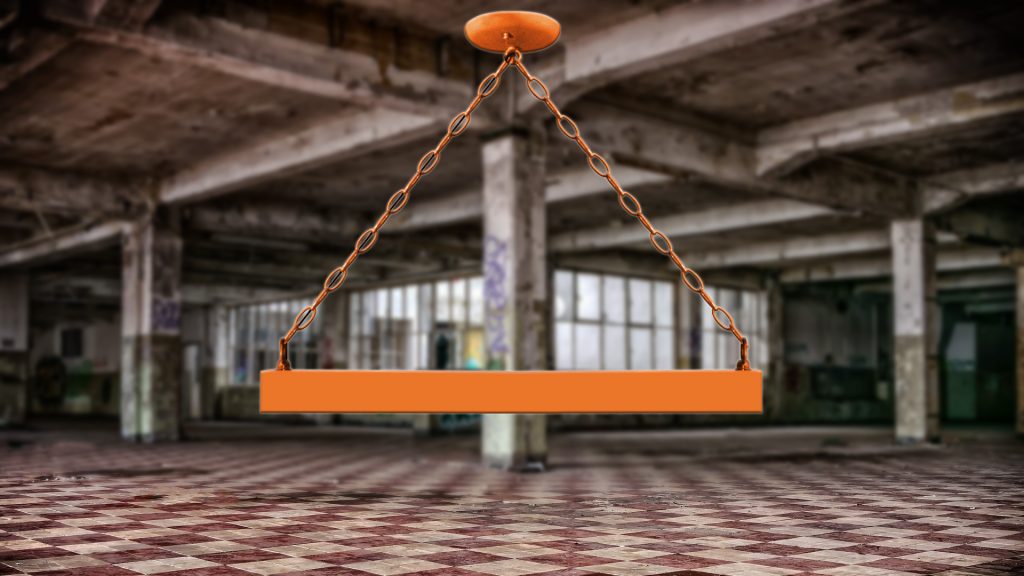

Linear Pendant Light #5744
Linear Pendant Light #5744



☝️Our 2′ Linear Lights Pack a Punch☝️

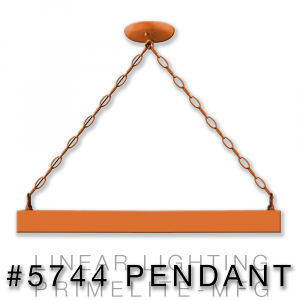

 2′ Linear Pendant #5744 👀

v
Linear Pendant Light #5744

Linear Pendant Light #5744:

Our Pendant lights would be an enhancement to any environment. Fixtures come complete with 2 x 18″ chains, introducing a strong and stylish visage to most installations.

Designed to offer bright and efficient light, whether as multiples hung throughout an open work environment or nestled snuggly within the walls of an office space. These pendants would even work as lighting elements in industrial residential spaces and lofts.



With a 24″ light box, these fixtures contain LED25 integrated diodes and drivers offering a bold output of strong, bright and inviting light. Choose lens color; white, clear or frosted. Your order comes ready to mount and is weather rated for general exterior installations.



The #5744 (Pendant) model is also available in larger sizes. 4′ – #5750 (Pendant) and 8′ – #5751 (Pendant)



Technical Drawing: #5744 (2′ Pendant)





our 2′ Linear Lights ensure a long lasting, energy efficient and cost effective solution to your lighting design needs.





Basic 3 cord wiring
Installation: Basic 3 Cord Wiring



Installation



Primelite’s Linear Collection comes pre-wired and ready to install with a basic 3 cord installation. Simply put – our 2′ linear lights need only 1 outlet box (#5744 Series). The 4′ and 8′ linear lights (#5750 & #5751 Series) need 2 outlet boxes. One electrified. The other, just for fixture stability. Our Linear Lights come pre-wired, pre-tested and ready to hang! Mount! Install! Whatever you call it. We’re there!

Linear. Simple. Affordable. Strong. Easy. Dependable.



Our linear lamps are handcrafted and assembled in our New York warehouse and offer years of stylish reliability. Constructed of strong aluminum, our lights are cost effective and budget friendly. All linear fixtures include integrated LEDs, drivers, all wiring and come with a choice of lens color; white, clear or frosted. The fixtures are weather rated for general exterior installations and arrive at the job site ready to go!



Introduce a touch of color with any of our 29 powder coated colors, including chic metallic-style finishes: nickel, chrome, bronze, brass, galvanized and more.



We Made You Look. Up!





2' Linear Lighting Catalog
Primelite’s 2′ Linear Lighting Catalog



Catalog: Primelite’s 2′ Linear Lighting Series (#5744)

Catalog: Primelite’s 4′ & 8′ Linear Lighting Series (#5750 & #5751)

Catalog: Primelite’s Entire Linear Lighting Series



TechSpecs

#5744 (Pendant) ☝️

Linear Pendant #5744 (Pendant)
Primelite Catalog: #5744 (Pendent)

  • TypeLinear Light | Hanging Pendant
  • Lamp: LED25 | 24″ LED Diode Strip
  • Lumens: 3920
  • Lens: White | Clear | Frosted
  • Size: 20” OAH |  24” OAL | 3″ W
  • Construction: Aluminum
  • Mount: Suspended from 2 x 18″ Chains
  • Installation: Commercial, Residential Environments | Smaller, Tight Spaces
  • Finishes: Choice of 29 powder coated colors. Custom finish upon request.
  • Additional Sizes Available: 4′ (#5750) | 8′ (5751)
  • Technical Drawing: #5744 (Pendant)



Technical Drawings

Linear Lighting #5744 Series

PDF Catalog : 2′ Linear Lighting #5744 Series

Technical Drawings: Whole Series – One PDF File







Copyright 2022 Primelite Mfg.







Posted on

When Two! 2! Two Linear Heads…

linear light #5744/852-2

When Two, 2, Two Heads Are Better Than One!



…Are Better Than One!



2′ 2 Headed Linear Lights



Primelite Mfg is once again at the forefront of innovation, inspiration and motivation. Introducing, the latest in an expanding selection of Linear Lighting, our new 2′ LED Linear Light Collection. These spectacular “little vessels of illuminance” are ready to offer the best in stylish, functional and affordable illumination.



This week we’re highlighting two fixtures from our new 2′ Linear Light Collection. A pair of doubled-headers, Sign Light #5744/858 ESW and its associate, #5744/852-2. With their twin 24″ LED heads (#5744A) this duo epitomizes the style, strength and function of our new Linear Lighting fixtures. They‘re small but mighty. And as bright as any big brother. Why you might even say they’re Mighty Brighty!





 They Might Be Small, But They’re Mighty Brighty!





hanging sign design
An example of an old-skool double sided sign





New Sign Light #5744/858 ESW holds a rather unique place among our Linear Collection, as it was specifically designed to illuminate a 2-sided hanging sign. Though old-skool in design, there is still a need for this type of lighting. In fact you can still find similar signs throughout urban / suburban restaurant and bar spaces, where a hanging sign can enliven, inform and entertain. Found on Main Streets, village sidewalks and in cities where space is limited. And where a double-sided sign would be considered smart marketing.





Illustration showing how fixture #5744/858 ESW would illuminate a double sided hanging sign





And Fixture #5744/858 ESW fits that need. Perfectly.





When mounted, #5744/858 ESW‘s 2 parallel heads, one on each side, will brilliantly illuminate bilateral signage. Each fixture includes 2 x 90 degree swivels (ESW), allowing a precise angle of luminescence. And of course its 2 heads offers double the light output – a full 7840 lumens (3920 per head).

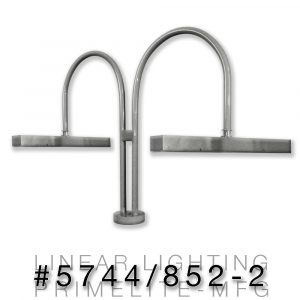

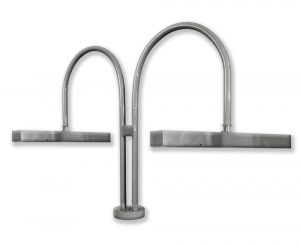

Linear Light #5744/852-2 - Double Headed Parapet Mount





Fixture #5744/852-2 takes a familiar route in its lighting journey. Also designed with double Linear heads, #5744/852-2 brings its twins lights to a parapet installation. Securely mounted high above the town streets, its double heads bring twice the light to any exterior setting. A full 7840 lumens of strong, secure luminescence.





Our Linear Lighting collection is now available in 3 sizes – 8′ (#5751 Series), 4′ (#5750 Series) & the new 2′ (#5744 Series). Offering solutions our clientele have come to expect.
Linear Lighting collection is available in 3 sizes – 8′ (#5751 Series), 4′ (#5750 Series) & the new 2′ (#5744 Series)





Our Linear Lighting collection is now available in 3 sizes – 8′ (#5751 Series), 4′ (#5750 Series) & the new 2′ (#5744 Series). Offering solutions our clientele have come to expect. These fixtures have been “primarily designed to improve energy efficiency and extend life” with simple yet elegant form factors for aesthetics, light optics, adaptability, and control.



2′ Linear Lights Pack a Punch



2′ Linear Light Twin Headed #5744/858 ESW

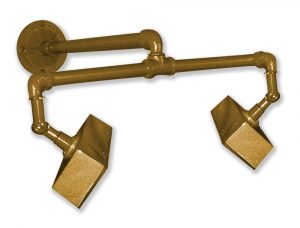

linear light #5744/858
Twin Headed Linear Light #5744/858 ESW

#5744/858 ESW: As mentioned above, Sign Light #5744/858 ESW has a rather unique place among the Linear Collection, specifically to illuminate 2-sided hanging signage. This type of fixture is popular, especially in towns and cities where a double sided hanging sign can be considered smart marketing.

With 2 x 24″ light boxes, these fixtures comes complete with 2 x LED25 integrated diodes and drivers offering a bold output of strong, bright and inviting light. Your order comes with a choice of lens color, white, clear or frosted. The fixture is weather rated for general exterior installations.

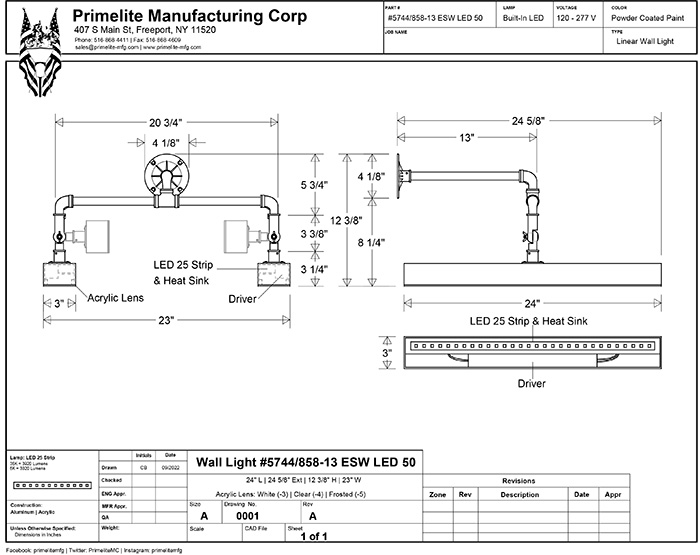

Technical Drawing: #5744/858 ESW





our 2′ Linear Lights ensure a long lasting, energy efficient and cost effective solution to your lighting design needs.



2′ Linear Light Parapet Mount #5744/852-2



linear light #5744/852-2
Linear Light Parapet Mount #5744/852-2

#5744/852-2: Like its compadre above, #5744/852-2 brings a two headed solution to any lighting project. While the Linear lighting output and head design are similar, the difference is in the fixtures mount. #5744/852-2 is designed to be parapet mounted, sitting atop buildings and roofs throughout town.

Its 24″ light boxes comes complete with 2 X LED25 strips of integrated diodes and drivers. And ships with a choice of  lens color, white, clear or frosted.



The #5744/852-2 model is also available with the addition of 2 x 90 degree swivels (ESW), #5744/852-2 ESW, for a more precise illumination.



Technical Drawing: #5744/852-2



Basic 3 cord wiring
Installation: Basic 3 Cord Wiring



Installation



Primelite’s Linear Collection comes pre-wired and ready to install with a basic 3 cord installation. Simply put – our 2′ linear lights need only 1 outlet box (#5744 Series). The 4′ and 8′ linear lights (#5750 & #5751 Series) need 2 outlet boxes. One electrified. The other, just for fixture stability. Our Linear Lights come pre-wired, pre-tested and ready to hang! Mount! Install! Whatever you call it. We’re there!

Linear. Simple. Affordable. Strong. Easy. Dependable.



Our linear lamps are handcrafted and assembled in our New York warehouse and offer years of stylish reliability. Constructed of strong aluminum, our lights are cost effective and budget friendly. All linear fixtures include integrated LEDs, drivers, all wiring and come with a choice of lens color; white, clear or frosted. The fixtures are weather rated for general exterior installations and arrive at the job site ready to go!



Introduce a touch of color with any of our 29 powder coated colors, including chic metallic-style finishes: nickel, chrome, bronze, brass, galvanized and more.





2' Linear Lighting Catalog
Primelite’s 2′ Linear Lighting Catalog



Catalog: Primelite’s 2′ Linear Lighting Series (#5744)

Catalog: Primelite’s 4′ & 8′ Linear Lighting Series (#5750 & #5751)

Catalog: Primelite’s Entire Linear Lighting Series



TechSpecs

#5744/858 ESW

linear light #5744/858 ESW
Primelite Catalog: #5744/858 ESW

  • TypeLinear Light | Double Headed
  • Lamp: 2 x LED25 | 2 x 24″ LED Diode Strip
  • Lumens: 7840 (2 x LED25 | 3920)
  • Lens: White | Clear | Frosted
  • Swivel: 2 x 90° swivels
  • Size: 12 3/8” OAH | 24 5/8” OAE | 23” OAL
  • Construction: Aluminum
  • Installation: Cities, Urban Environments | Smaller, Tight Exterior Spaces
  • Mount: Wall Mounted | 1 Outlet Box
  • Finishes: Choice of 29 powder coated colors. Custom finish upon request.
  • Technical Drawing: #5744/858 ESW

#5744/852-2 (Double Headed | Parapet Mount)

Linear Light #5744/852-2
Primelite Catalog: #5744/852-2

  • TypeLinear Light | Double Headed
  • Lamp: 2 x LED25 | 2 x 24″ LED Diode Strip
  • Lumens: 7840 (2 x LED25 | 3920)
  • Lens: White | Clear | Frosted
  • Size24 1/8” OAH | 31 3/4” OAE | 24” OAL
  • Construction: Aluminum
  • Installation: Cities, Urban Environments | Smaller, Tight Exterior Spaces
  • Mount: Parapet | 1 Outlet Box
  • Finishes: Choice of 29 powder coated colors. Custom finish upon request.
  • Technical Drawing: #5744/852-2





Technical Drawings

Linear Lighting #5744 Series

PDF Catalog : 2′ Linear Lighting #5744 Series

Technical Drawings: Whole Series – One PDF File







Copyright 2022 Primelite Mfg.







Posted on

What’s The Buzz????zzzzzz Tarpon Springs, Florida? We Are! So Exciting!

Gooseneck #20/850 is the Buzz????zzzzz!

Today we’re Buzz????ing with excitement as our lights are found illuminating the streets of Tarpon Springs, Florida. Our latest “What’s The Buzz?” finds Gooseneck #20/850, our top selling light fixture, illuminating the exterior of Back Draughts Pizza on Tarpon Ave.

Here they are shown lit up with festive red and green bulbs! Our economical sign lights, paired with colored bulbs in multiple festive colors, are the perfect way to economically decorate for every holiday, or add everyday ambience!

We’re proud to be economically lighting the way for the people of Tarpon Springs, as they dine al-fresco. We can do the same for your town or business!



Technical Specs:

  • Catalog: #20/850
  • Type: Gooseneck Sign Light
  • Size: 9 1/2″ Dia | 18″ H | 27 1/2″ Ext
  • Lamp: E26 Socket | LED 12 | LED 22
  • Construction: Aluminum
  • Finishes: Choice of 29 Powder Coated Colors. Custom finishes available upon request.
  • Shown in Black with an E26 socket.
  • Location: Back Draughts Pizza, Tarpon Ave, Tarpon Springs FL

Photos: © 2021 Primelite Manufacturing, NY

, , , , ,
Posted on

What’s The Buzz????zzz! Adams, Mass?

Whats the Buzz Adams, MAss

Primelite globe light #1230-4
Primelite globe light #1230-4. Adams, Mass



Gooseneck #15/850

Globe Street Light #1230-4 GNO

Linear Light #5748-LED26

Are the Buzz????zzz!





“The people of Adams, Massachusetts know the value of having American made products in their town. They have over 250 of Primelite’s #1230/4 Globe throughout the town. Along with Primelite’s #5748 LED 26 sign light and Primelite’s #15/850. We here at Primelite would like to thank the people of Adams, Massachusetts for buying our American made products.”



“Adams, Massachusetts a Primelite kind of town”





Gooseneck #15/850
Primelite Gooseneck Light #15/850. Adams, Mass



Buzz????zzz!Specs:

Catalog: #15/850

Style:  Gooseneck | Sign Light | Barn Light | Exterior | Interior

Lamp: Incandescent | LED

Finishes:  Choice of 29 powder coated colors. Plated finish available. Custom finish upon request.

Establishment: Adams, Mass





streetlight #1230-4 GNO
Streetlight #1230-4 GNO, Adams, Mass



Buzz????zzz!Specs:

Catalog: #1230-4 GNO

Style:  Globe | Streetlight

Lamp: Incandescent | LED

Finishes:  Choice of 29 powder coated colors. Plated finish available. Custom finish upon request.

Establishment: The Town of Adams, Mass




Linear Light #5748-LED26
Linear Light #5748-LED26, Adams, Mass


Buzz????zzz!Specs:

Catalog: #5748-LED26

Style:  Linear Light | Signlight

Lamp: LED

Finishes:  Choice of 29 powder coated colors. Plated finish available. Custom finish upon request.

Establishment: Retail Establishment in Adams, Mass








streetlight, Adams, maAdams, Mass globe streetlight

Posted on

Simply Utilitarian in Both Design and Function

u·til·i·tar·i·an

yo͞o tiləˈterēən/

adjective

designed to be useful or practical rather than attractive.
synonyms:
practical, functional, pragmatic, serviceable, useful, sensible, efficient, utility, workaday, no-frills;
plain, unadorned, undecorative

Another week, another light fixture added to Primelite’s ever-expanding LED catalog. This week we’re introducing Sign Light #5748 LED26. Utilitarian in both design and function, #5748 offers a strong and bright spread of LED illumination. Its 48″ head is available in 2 LED options, LED26 3500K (4010 lumens) and LED26 5000K (4110 lumens).



The sign light includes 2 – 90° swivels for accurate and precise positioning, making this fixture perfect for lighting larger signs, storefronts and wall washings. In fact consider this fixture for use in parking lots, alleyways, anywhere strong, and cost-effective, lighting is needed.



[Tweet “Utilitarian in both design and function, #5748 offers a strong … spread of LED illumination”]





In need of a larger light source? Primelite also carries the 8′ Sign Light, #5796 LED52, which is also available in 2 options, LED52 3000K (8020 lumens ) and LED52 5000K (8220 lumens)





Still on the fence about proposing an LED fixture versus the old incandescent standby? Just remember – Savings! Savings! Savings! Because once you add in the power consumption savings, our fixtures are as cost-effective as they are durable.



[Tweet “Utilitarian in both design and function, Sign Light #5748 offers up strong LED illumination”]



And remember – Primelite Mfg offers a 5-year warranty on all our LED systems!



Tech⚙Specs

Catalog: Primelite #5748 LED26

Style:  4″ Sign Light

Size:  Wt. 54″ | Ht. 7″
Lamp:
     LED26 (3500K (4010 Lumens) | 5000K (4110 Lumens)
Lens: Acrylic, Clear
Voltage: Multi-Volt LED Driver
Construction: 100% Aluminum
Finish:  White



Catalog: Primelite #5796 LED52

Style:  8″ Sign Light

Size:  Wt. 103″ | Ht. 7″
Lamp:
     LED52 (3500K (8020 Lumens) | 5000K (8220 Lumens)
Lens: Acrylic, Clear
Voltage: Multi-Volt LED Driver
Construction: 100% Aluminum
Finish:  White



Technical Drawing (Cut Sheet):

Technical Drawing (Cut Sheet):





Contact our office for more information.

Via Phone: 516-868-4411
Via our Contact Form

Primelite’s Online Catalog C (LED)
Check out our new online LED Catalog for our growing line of LED fixtures.



Posted on

What is the Buzz????zzz! in Plainfield, NJ?





Gooseneck #19/16-850 is the Buzz????zzz!





Buzz????zzz!: Primelite #19/16-850

Fixture: Gooseneck #19/16-850

Location:  World Supermarket, Plainfield, NJ

Installation: Exterior | Storefront | Signage











Buzz????zzz!Specs:

Catalog: Primelite #19/16-850

Style:  Gooseneck | Sign Light | Barn Light

Size: 16″ Dia | H 28¼” | Ext 21¾”

     Shade: #19/16 –  16″ Dia | H 15¾”

     Arm: #850 – L 22″

Lamp: Incandescent | LED

Finishes:  Choice of 29 powder coated colors. Plated finish available. Custom finish upon request.

Technical Drawing (Cut Sheet): Gooseneck #19/16-850





















Posted on

What is the Buzzzzz! in West Revere, MA?

Gooseneck #111/10-864 is the Buzz????zzz!



Buzz????zzz!: Primelite #111/10-864

Fixture: Gooseneck | Sign Light

LocationSabor Peruvian Fusion, West Revere, MA

Installation: Exterior | Storefront







Buzzzzz!????Specs:

Catalog: #111/10-864

Size: Dia. 10″ | Ht. 12″ | Ext. 34″
     Gooseneck Shade: #111/10 – Dia. 10 | Ht. 5″

     Gooseneck Arm: #864– Ht. 12″ | Wt. 34″ | Pipe: ½”

Construction: 100% Aluminum
     Shade: Spun Aluminum
     Arm: Extruded Aluminum
     Canopy: Cast Aluminum

Lamp: Incandescent (60W) | LED (LED12 & LED22 | 800 & 1800 Lumens | 3K, 4K)

Finishes: Choice of 29 powder coated colors. Custom finish upon request

Installation: Signs, Canopies, Store Front, Office, Exterior, Commercial Interior

EstablishmentSabor Peruvian Fusion, West Revere, MA







More What is the Buzzzzz!…



































Posted on

There’s An Electricity In The Air! Can You Feel It?



There’s an Electricity in the Air! Can You Feel It?



Even as Primelite keeps an ear to the ground for the latest in news and trends of the LED revolution, we’re proud to introduce our new Multi-Volt LED Driver. What’s a Multi-Volt Driver? Simply put, our Gooseneck LED lighting systems now allow easy installation and compatibility with most commercial voltage configurations.



[Tweet “Our Gooseneck LED lighting systems now allow easy installation in commercial voltage configurations”]



Our self-regulating LED drivers automatically set to the correct voltage for the electrical installation. No more concern of which LED Goosenecks will work for your project. You can choose from our large selection of Gooseneck products, and know that they will work. Instinctively!





Another feature offered by the new Multi-Volt LED Driver – our LEDs are fully dimmable! Now, with voltage adaptation and dimming capabilities, you can be confident Primelite’s LED Goosenecks will bring a precise “bright” to any project.



Our new Multi-Volt LED Driver can be installed in most of our Gooseneck fixtures, with either a LED12 or LED22 iLED array. And remember – once you add in the power consumption savings, our goosenecks, with integrated LED systems, are as cost-effective as they are durable! Primelite Mfg offers a 5-year warranty on all our integrated LED systems (iLEDs)!



[Tweet “Choose from our large selection of Gooseneck products, and know that they will work. Instinctively!”]



An example? Our most popular, and best-selling, Gooseneck – #20/850 – is now available in LED12 or LED22, both with the Multi-Volt Driver!



Tech⚙Specs

Catalog: #20/850 LED

Style: Gooseneck | Sign Light

Size: Dia. 9½” | Ht. 18″ | Ext 25″

Gooseneck Shade: #20 – Dia. 9½ | Ht. 12″

Gooseneck Arm: #850 – Ht. 6″ | Wt. 22″ | ½” IPS Pipe

Construction: 100% Aluminum
     Shade: Spun Aluminum
     Arm: Extruded Aluminum
     Canopy: Cast Aluminum

Lamp: LED12 (800 Lumens | 4K) | LED22 (1800 Lumens | 3k, 4K)

LED Driver: Multi-Volt | 120V – 277V

Finishes: Choice of 29 powder coated colors. Custom finish upon request

Recommended Spacing: 4′ between fixtures






Technical Drawing (Cut Sheet):
















LED12

Lamp: LED12

800 lumerns | 120V – 277V



Lamp: LED22

1800 lumerns | 120V – 277V



Contact our office for more information.

Via Phone: 516-868-4411
Via our Contact Form

Primelite’s Online Catalog C (LED)
Check out our new online LED Catalog for our growing line of LED fixtures
