RLM LED Post Light

LED RLM aluminum barn shade with an acrylic lens for outdoor installation a mount fitted for 3″ diameter posts.  UL Listed & Dark Sky friendly.

Post Sold Separately.

Catalog # 23/1595 LED

Product price
Additional options total:
Order total:
    Reset options
Request a Quote
Categories: ,

Description

Catalog # 23/16-1595 LED | 23/19-1595 LED | 23/24-1595 LED

Dimensions: Multiple sizes available. See Lamp Options for details.

Construction: Aluminum | Acrylic

Finishes: Choice of 29 powder-coated color options. Custom finish upon request.

Lamps: LED

Description: LED RLM aluminum barn shade with an acrylic lens for outdoor installation a mount fitted for 3″ diameter posts.  UL Listed & Dark Sky friendly.

Post Sold Separately.

Custom Options Available! Contact Us for a Quote

Lamp Options

This shade is available in the following lamp configurations:

23/16-1595 LED12 16″ LED12 Shade

Diameter: 16″ | Total Height: 10.5″

Includes integrated 12 Watt LED with an 800 Lumen output and 50,000-hour bulb life. Choose between 3000K warm light or 4000K bright light.

23/16-1595 LED22 16″ LED22 Shade

Diameter: 16″ | Height: 10.5″

Includes integrated 22 Watt LED with a 1,800 Lumen output and 50,000-hour bulb life. Choose between 3000K warm light or 4000K bright light.

23/16-1595 LED40 16″ LED40 Shade

Diameter: 16″ | Height: 10.5″

Includes four integrated 10 Watt LED chips for a total of 40 Watts with a 5,060 Lumen output and a 50,000-hour bulb life. Choose between 3000K warm light or 4000K bright light.

23/19-1595 LED22 19″ LED22 Shade

Diameter: 19″ | Height: 12″

Includes integrated 22 Watt LED with a 1,800 Lumen output and 50,000-hour bulb life. Choose between 3000K warm light or 4000K bright light.

23/19-1595 LED40 19″ LED40 Shade

Diameter: 19″ | Height: 12″

Includes four integrated 10 Watt LED chips for a total of 40 Watts with a 5,060 Lumen output and a 50,000-hour bulb life. Choose between 3000K warm light or 4000K bright light.

23/19-1595 LED68 19″ LED68 Shade

Diameter: 19″ | Height: 12″

Includes four integrated 17 Watt LED chips for a total of 68 Watts with a 7,212 Lumen output and a 50,000-hour bulb life. Choose between 3000K warm light or 4000K bright light.

23/19-1595 LED124 19″ LED124 Shade

Diameter: 19″ | Height: 12″

Includes four integrated 31 Watt LED chips for a total of 124 Watts with a 15,128 Lumen output and a 50,000-hour bulb life. Choose between 3000K warm light or 4000K bright light.

23/24-1595 LED40 24″ LED40 Shade

Diameter: 24″ | Height: 12″

Includes four integrated 10 Watt LED chips for a total of 40 Watts with a 5,060 Lumen output and a 50,000-hour bulb life. Choose between 3000K warm light or 4000K bright light.

23/24-1595 LED68 24″ LED68 Shade

Diameter: 24″ | Height: 12″

Includes four integrated 17 Watt LED chips for a total of 68 Watts with a 7,212 Lumen output and a 50,000-hour bulb life. Choose between 3000K warm light or 4000K bright light.

23/24-1595 LED124 24″ LED124 Shade

Diameter: 24″ | Height: 12″

Includes four integrated 31 Watt LED chips for a total of 124 Watts with a 15,128 Lumen output and a 50,000-hour bulb life. Choose between 3000K warm light or 4000K bright light.

Cut Sheet

# 23/16-1595 LED12 Technical Drawing

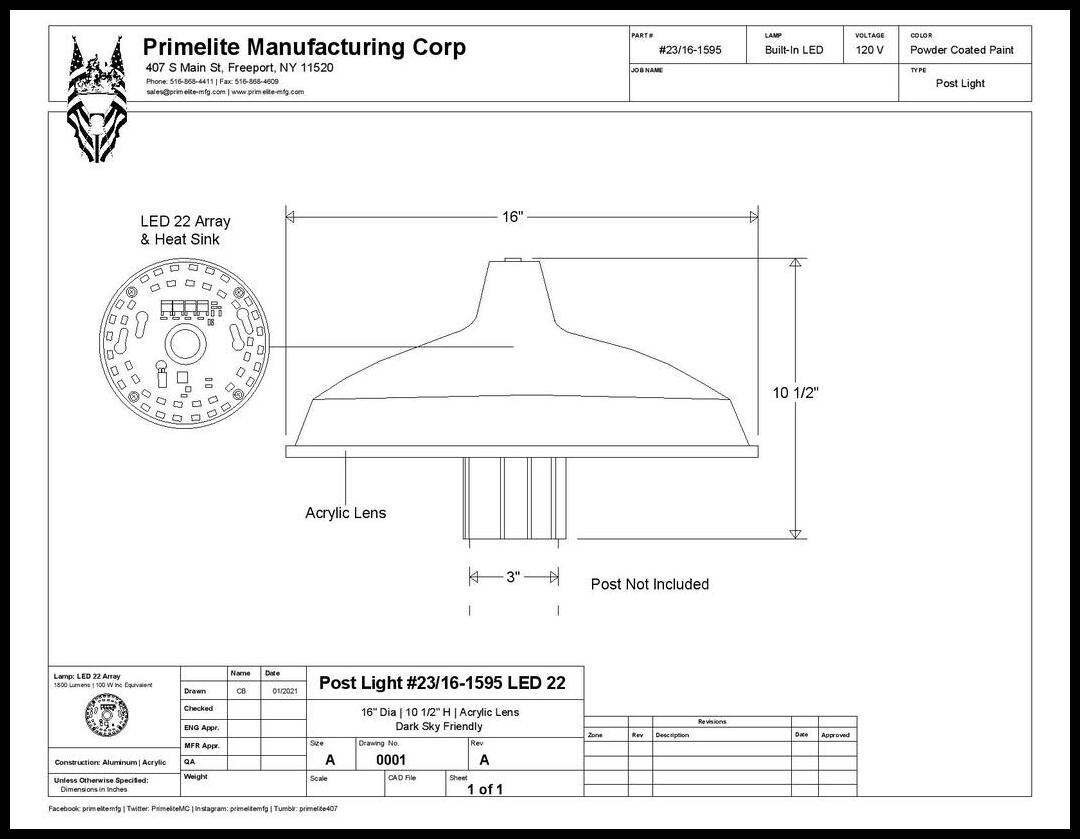

# 23/16-1595 LED22 Technical Drawing

# 23/16-1595 LED40 Technical Drawing

# 23/19-1595 LED22 Technical Drawing

# 23/19-1595 LED40 Technical Drawing

# 23/19-1595 LED68 Technical Drawing

# 23/19-1595 LED124 Technical Drawing

# 23/24-1595 LED40 Technical Drawing

# 23/24-1595 LED68 Technical Drawing

# 23/24-1595 LED124 Technical Drawing



Color Options

Primelite in Color!

Primelite offers a wide selection of colors, 29 dazzling colors! From red, blue, yellow, orange, to our painted metallic finishes; chrome, galvanized, soft nickel and more. All available at no additional cost, except for Verdi Green Rub. Primelite will also work with you when a custom color is needed. Send us a paint chip or a pantone color, and Primelite will deliver the perfect fixture, color and finish!

Colors (powder coated): White, Matte White, Almond, Gray, Black, Black Gloss, Yellow, Orange, Red, Burgundy, Pink, Light Blue, Dark Blue, Navy Blue, Turquoise, Green, Hunter Green, Verdi Green, Soft Nickel, Aluminum, Chrome, Gold, Antique Brass, Copper, Galvanized, Bronze, Bronze Tone, Brown and Verdi Green Rub.
