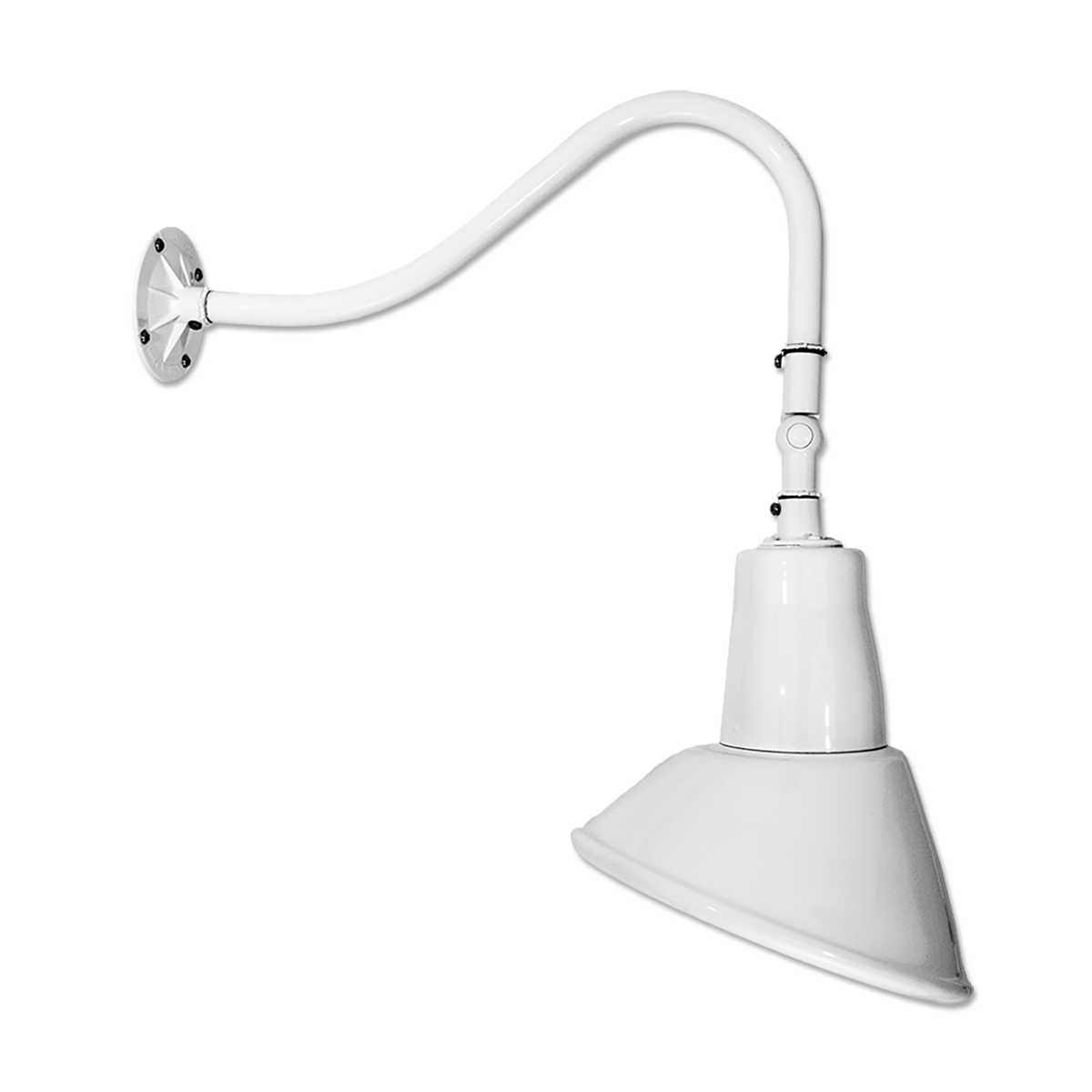

Angled all-aluminum shade head w/ 90-degree swivel for exterior installation on a short gooseneck arm with a 4″ cast canopy mount for an octagonal box. UL Listed.
Dimensions: Arm Length: 16″ | Shade Diameter: 9.5″ | Shade Height: 12.5″ | Extension: 20″
Construction: Aluminum
Finishes: Choice of 29 powder-coated color options. Custom finish upon request.
Lamps: Incandescent | LED
Swivel: 90-Degree ESW
Description: Angled all-aluminum shade head w/ 90-degree swivel for exterior installation on a short gooseneck arm with a 4″ cast canopy mount for an octagonal box. UL Listed.
Custom Options Available! Contact Us for a Quote
This sign light is available in the following lamp configurations:
| 20/859 ESW | Incandescent Shade
Designed for use with an incandescent lightbulb of up to 200 Watts (bulb not included). |
| 20/859 ESW LED12 | LED12 Shade
Integrated 12 Watt LED chip with an 800 Lumen output and 50,000-hour bulb life. Available in 3000K or 4000K LED color temperature. |
| 20/859 ESW LED22 | LED22 Shade
Integrated 22 Watt LED chip with an 1,800 Lumen output and 50,000-hour bulb life. Available in 3000K or 4000K LED color temperature. |

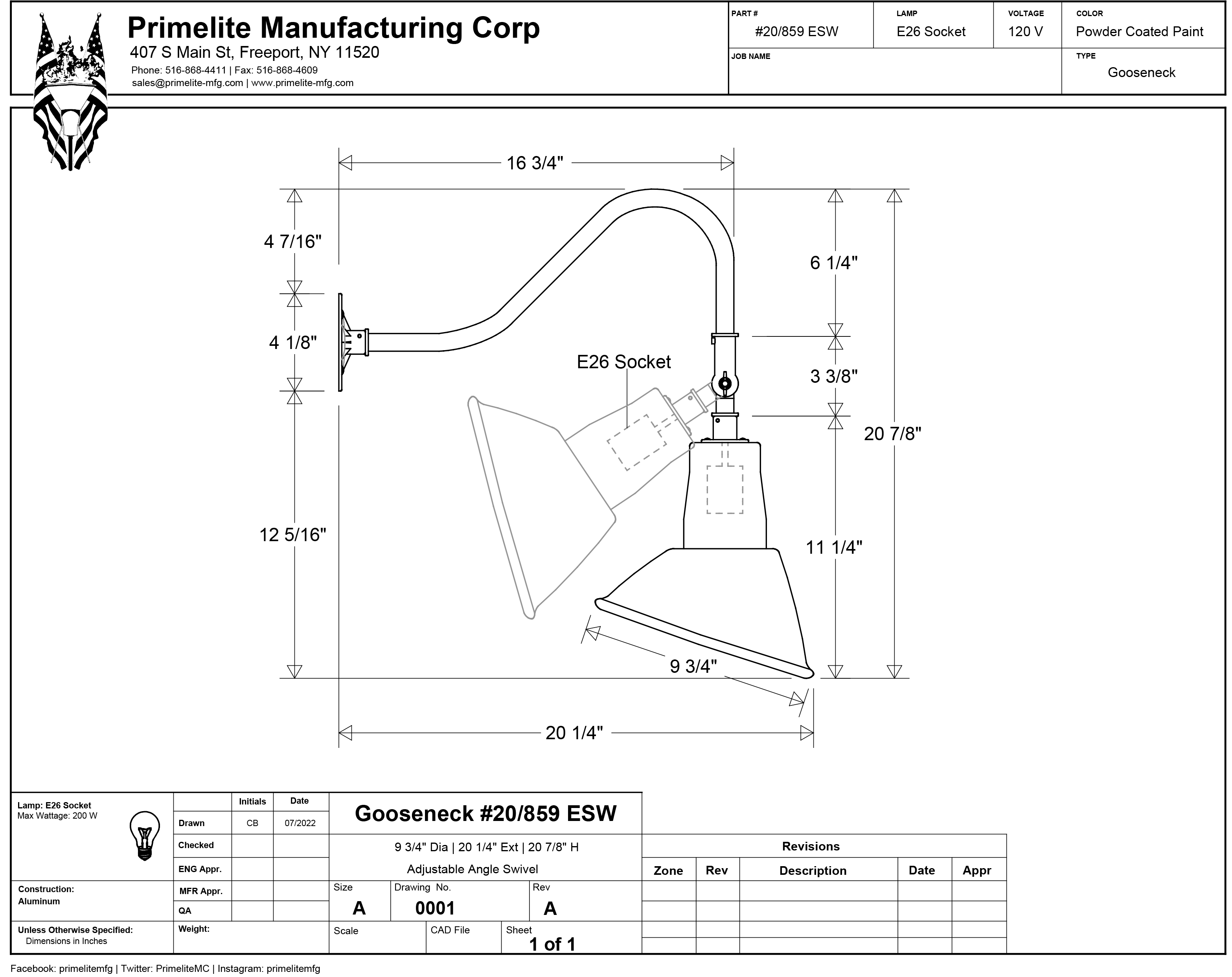

#20/859 ESW – Technical Drawing
#20/859 ESW LED12 – Technical Drawing
#20/859 ESW LED22 – Technical Drawing
