techcnical drawing gooseneck arm #850

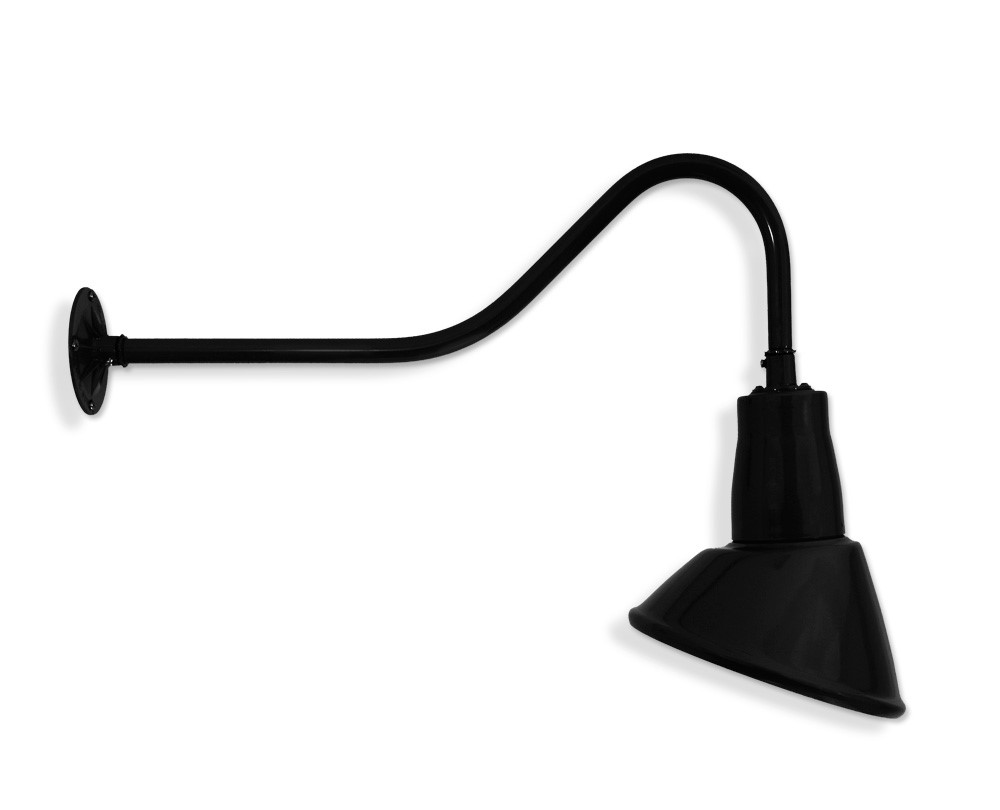

Angle Shade on Standard Gooseneck Sign Light

All-aluminum outdoor gooseneck on 4″ cast canopy.

Catalog # 20/850

Product price
Additional options total:
Order total:
Request a Quote
Categories: ,

Description

Catalog # 20/850 | 20/12-850

Arm Dimensions: 7/8″ Diameter | 22″ Gooseneck Arm Extension | 4″ Cast Canopy for Octagonal Junction Box | 1/2″ Schedule 40 Pipe | 90-degree front bend

Lamp Dimensions: Multiple sizes available, see Fixture Options for details.

Construction: Aluminum

Finishes: Choice of 29 powder-coated color options. Custom finish upon request.

Lamps: Incandescent | LED

Available Options: 90° Angle ESW Swivel

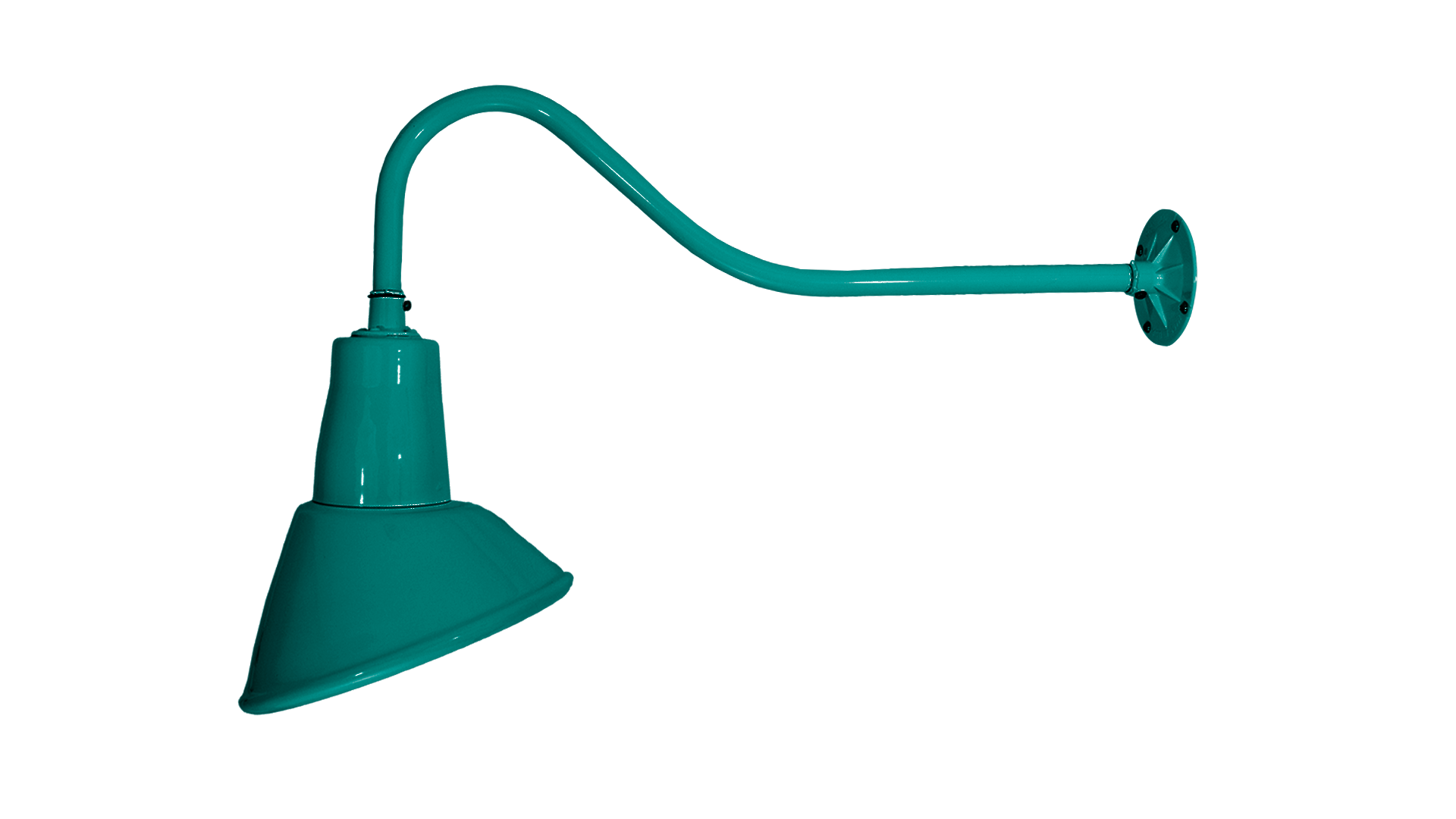

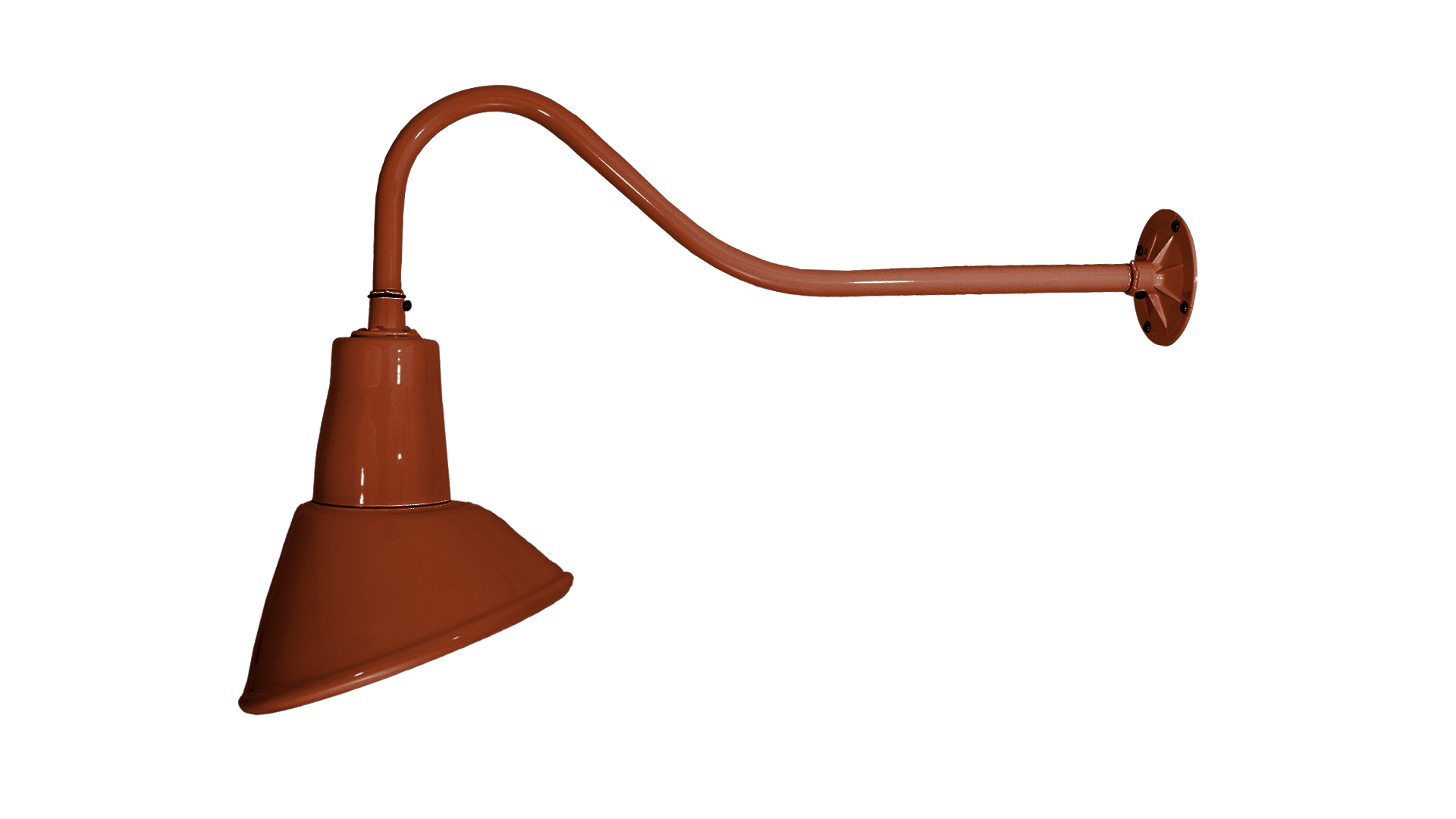

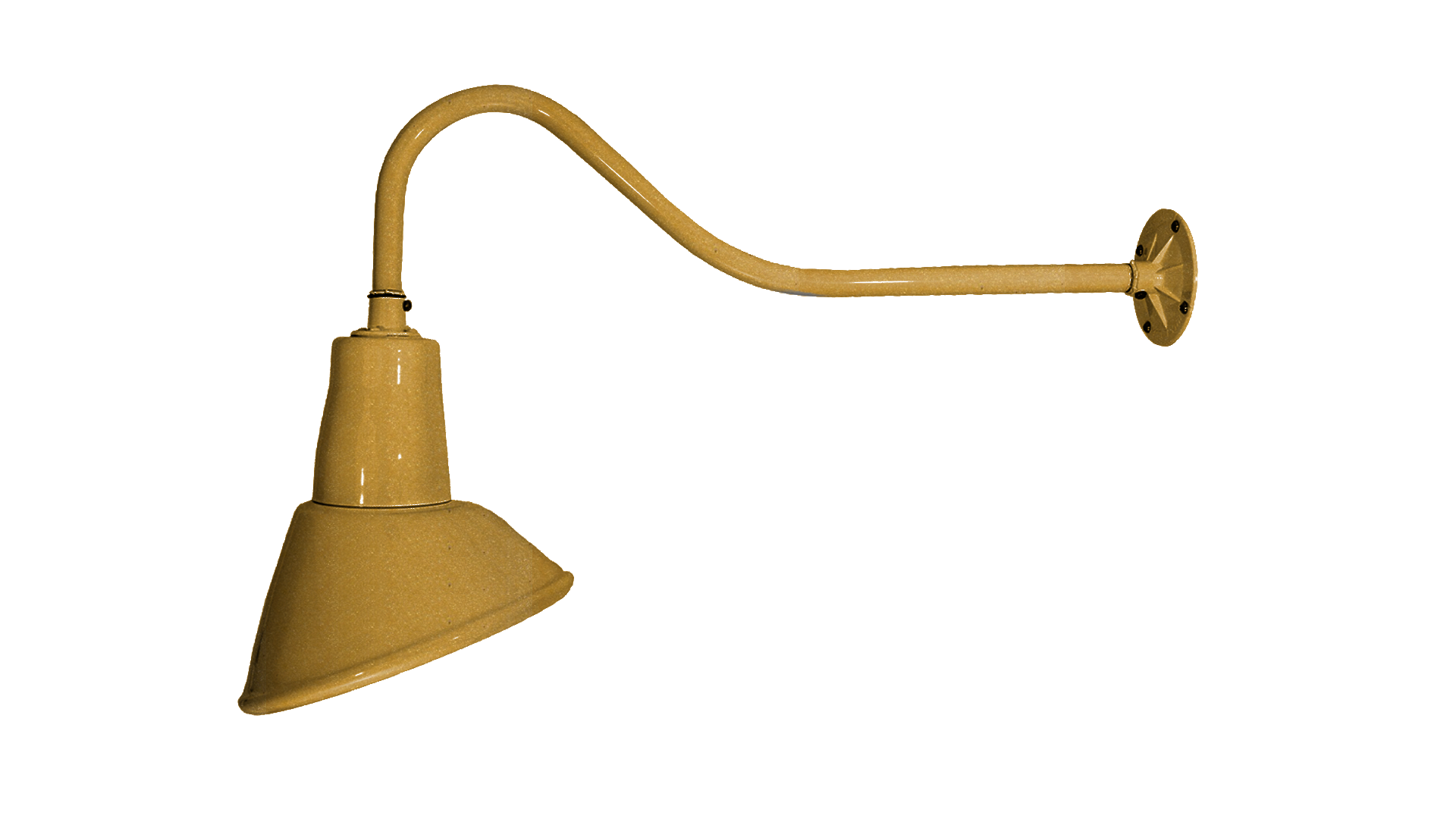

Description: Our 20/850 gooseneck is one of our most popular and versatile gooseneck designs. Its all-aluminum construction is UL Listed for wet conditions, meaning these fixtures will never rust and make any outdoor space look great. The 20/850 fixture features high-temperature porcelain sockets and a 4″ cast canopy that will screw directly onto any 4″ octagonal junction box.

Our 20/850 gooseneck fixture can be painted in your choice of over 25 powder-coated finishes and is available in incandescent and LED configurations.

Choose between 9.5″ diameter (20/850) or 12″ diameter (20/12-850) shade heads.

Custom Options Available! Contact Us for a Quote

Product Detail

20/850 9.5″ Lamp Head

Overall Dimensions: 18.5″ height | 9.5″ diameter | 26″ extension

Shade Head Dimensions: 12.5″ height | 9.5″ Diameter

Designed for use with an incandescent lightbulb of up to 200 Watts (bulb not included).
20/850 ESW 9.5″ Lamp Head with ESW Swivel

Overall Dimensions: 18.5″ height | 9.5″ diameter | 26″ extension

Shade Head Dimensions: 12.5″ height | 9.5″ Diameter

Swivel: 90° Angle ESW

Designed for use with an incandescent lightbulb of up to 200 Watts (bulb not included).
20/850 LED12 9.5″ Lamp Head LED12

Overall Dimensions: 18.5″ height | 9.5″ diameter | 26″ extension

Shade Head Dimensions: 12.5″ height | 9.5″ Diameter

Integrated 12 Watt LED chip with a 50,000-hour bulb life.
20/850 ESW LED12 9.5″ Lamp Head LED12 with ESW Swivel

Overall Dimensions: 18.5″ height | 9.5″ diameter | 26″ extension

Shade Head Dimensions: 12.5″ height | 9.5″ Diameter

Swivel: 90° Angle ESW

Integrated 12 Watt LED chip with a 50,000-hour bulb life.
20/850 LED22 9.5″ Lamp Head LED22

Overall Dimensions: 18.5″ height | 9.5″ diameter | 26″ extension

Shade Head Dimensions: 12.5″ height | 9.5″ Diameter

Integrated 22 Watt LED chip with a 50,000-hour bulb life.
20/850 ESW LED22 9.5″ Lamp Head LED22 with ESW Swivel

Overall Dimensions: 18.5″ height | 9.5″ diameter | 26″ extension

Shade Head Dimensions: 12.5″ height | 9.5″ Diameter

Swivel: 90° Angle ESW

Integrated 22 Watt LED chip with a 50,000-hour bulb life.
20/12-850 12″ Lamp Head

Overall Dimensions: 21″ height | 12″ diameter | 26.5″ extension

Shade Head Dimensions: 13.5″ height | 12″ diameter

Designed for use with an incandescent lightbulb of up to 200 Watts (bulb not included).

Cut Sheet

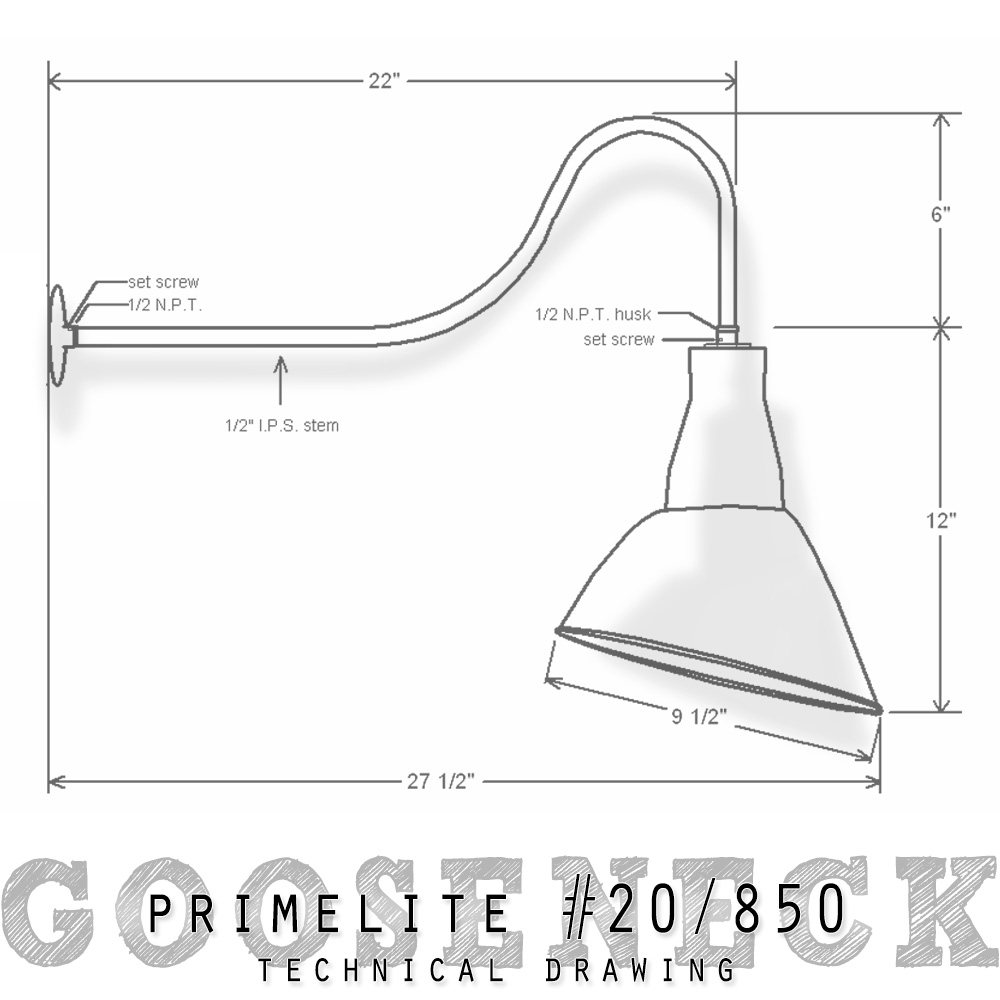

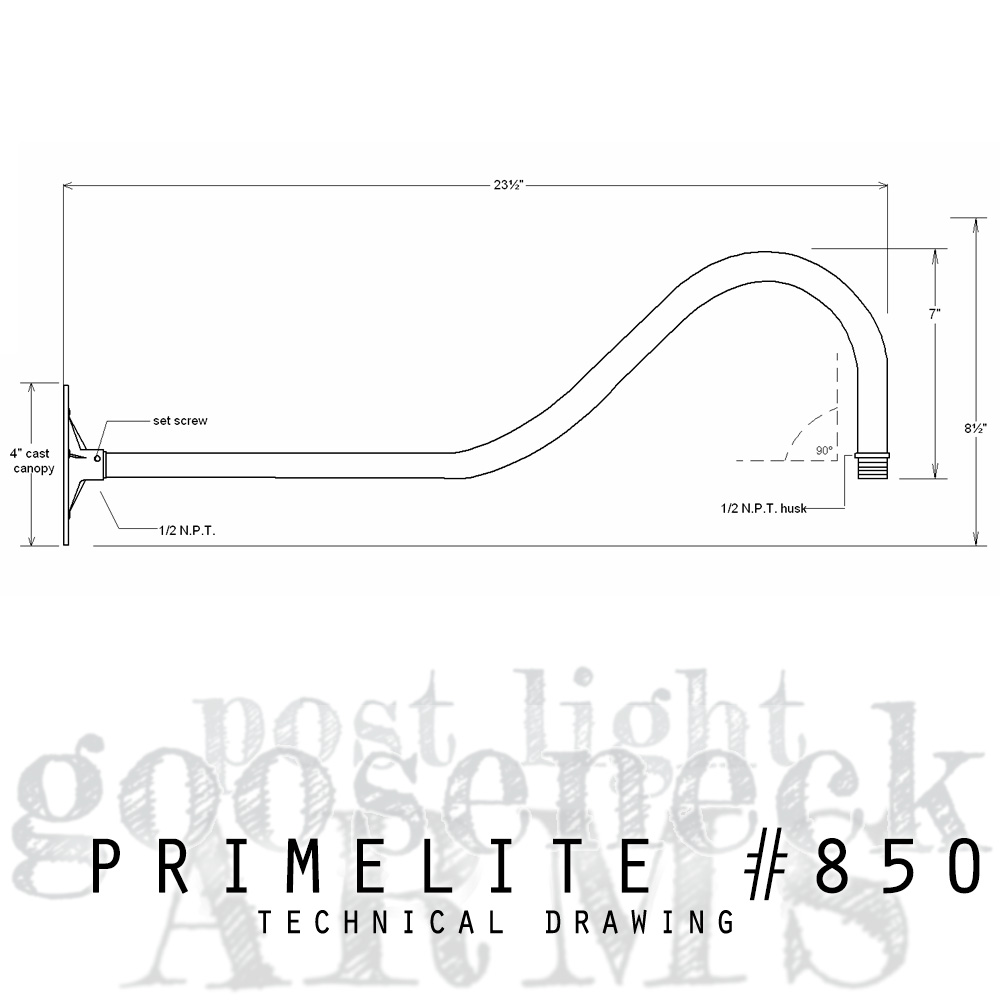

#20/850 – Technical Drawing

#20/850 ESW – Technical Drawing

#20/850 LED – Technical Drawing

#20/850 LED12 – Technical Drawing

#20/850 LED22 – Technical Drawing

#20/850 LED16 STS – Technical Drawing

ESW – Technical Drawing

Color Options

Primelite in Color!
Primelite offers a wide selection of colors, 29 dazzling colors! From red, blue, yellow, orange, to our painted metallic finishes; chrome, galvanized, soft nickel and more. All available at no additional cost, except for Verdi Green Rub. Primelite will also work with you when a custom color is needed. Send us a paint chip or a pantone color, and Primelite will deliver the perfect fixture, color and finish!
Colors (powder coated): White, Matte White, Almond, Gray, Black, Black Gloss, Yellow, Orange, Red, Burgundy, Pink, Light Blue, Dark Blue, Navy Blue, Turquoise, Green, Hunter Green, Verdi Green, Soft Nickle, Aluminum, Chrome, Gold, Antique Brass, Copper, Galvanized, Bronze, Bronze Tone, Brown and Verdi Green Rub.
