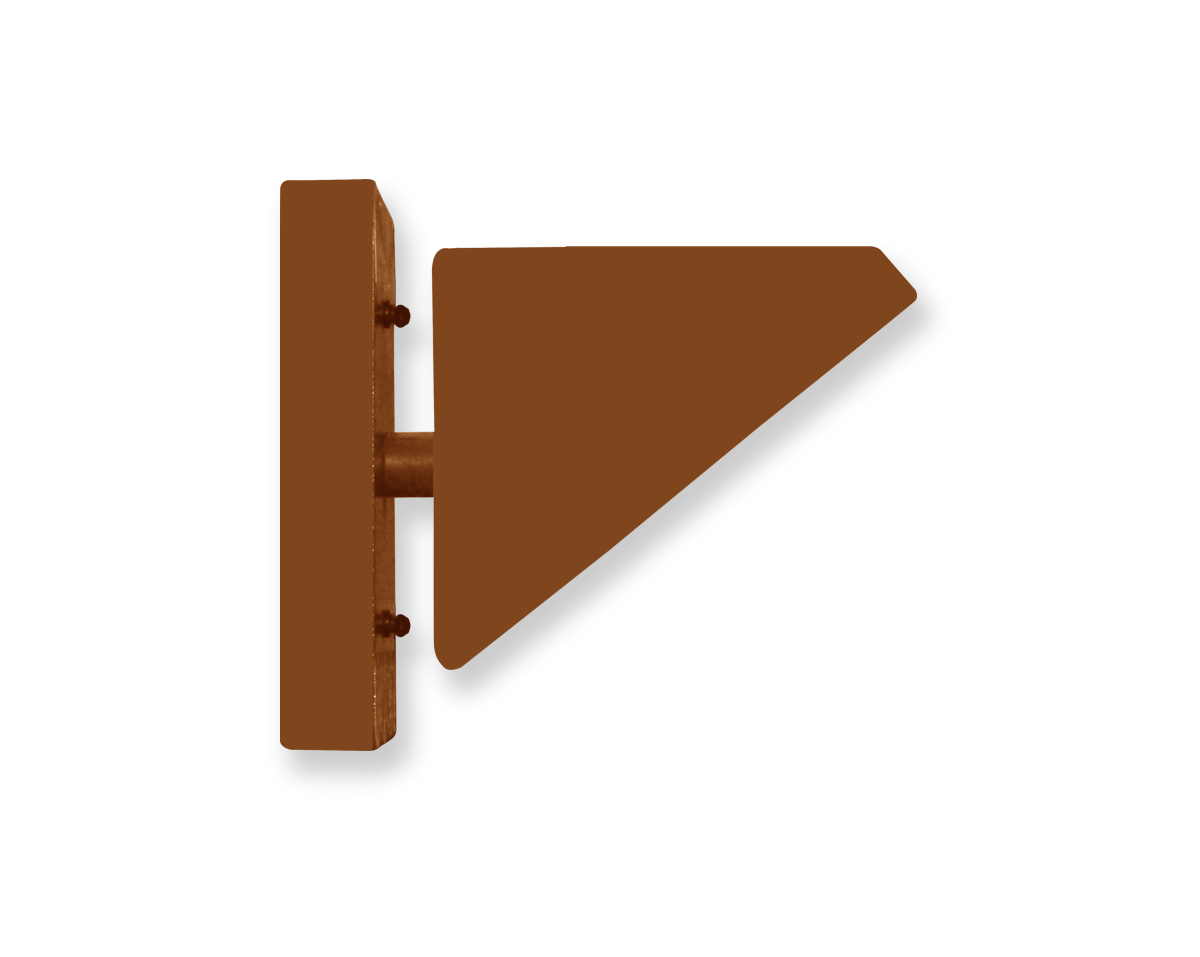

Wall Mounted Uplight Sconce | “The Wedge”

The Wedge – All-aluminum LED wall wash-up light sconce available in dimmable LED12 or LED24 in your choice of 29 powder-coated colors. Designed for indoor use but can be made for outdoor use upon request.

Wall Mounted Uplight #620 LED is a wall-mounted LED uplight specifically designed in response to requests for a type of lighting in which the fixture itself is visually quiet, almost unseen. All the while wedge #620 LED12 and #620 LED24 bring the necessary illumination to your projects while quietly filling the space with a pleasing, reflective, light.

Catalog # 620 LED

Product price
Additional options total:
Order total:
Request a Quote

Description

Catalog # 620 LED

Dimensions: Ht 6″ | Wt 10″ | Ext 6 ½”

Construction:  All-Aluminum Construction

Finishes:  Choice of 29 powder-coated colors | Custom finish upon request

Lamps: LED12 (950 Lumens, 3K/4K) | LED24 (1900 Lumens, 3K/4K) | Dimmable

Description: All-aluminum LED wall wash-up light sconce available in dimmable LED12 or LED24. Designed for indoor use but can be made for outdoor use upon request.

  • Made in the USA
  • 100 Aluminum Construction
  • Available in 29 Colors
  • Washes up Wall
  • Built-In LED Option
  • 12 Watts ( 950 Lumens)or 24 Watts (1900 Lumens)
  • Soft White (3000 Kelvin) or Bright White (4000 Kelvin)

Custom Options Available! Contact Us for a Quote

Fixture Options

620 LED12 12 Watt LED

Ht 6″ | Wt 10″ | Ext 6 ½”

All-aluminum LED wall wash-up light sconce. Integrated 12W LED with 950 Lumen output, 50,000-hour bulb life in 3K or 4K color temperature.

620 LED24 24 Watt LED

Ht 6″ | Wt 10″ | Ext 6 ½”

All-aluminum LED wall wash-up light sconce. Integrated 24W LED with 1,900 Lumen output, 50,000-hour bulb life in 3K or 4K color temperature.

Cut Sheet

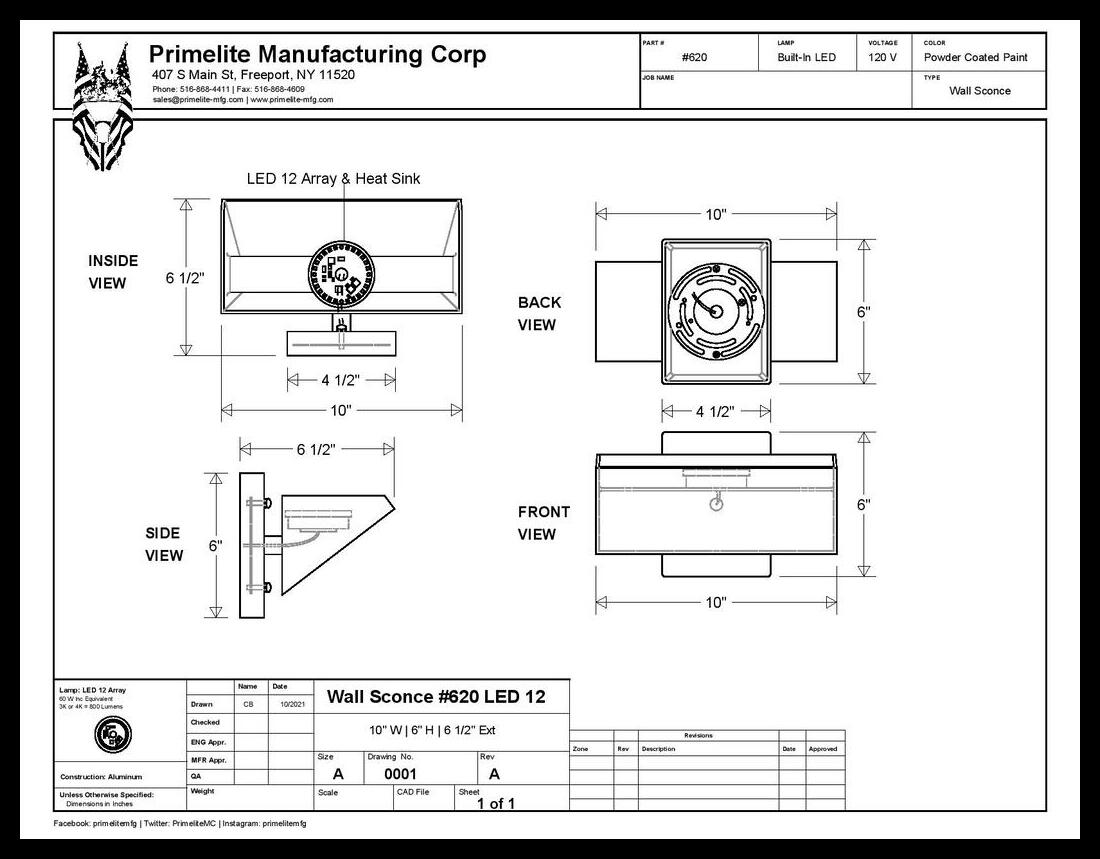

# 620 LED12 Technical Drawing

# 620 LED24 Technical Drawing

Color Options

Primelite in Color!
Primelite offers a wide selection of colors, 29 dazzling colors! From red, blue, yellow, orange, to our painted metallic finishes; chrome, galvanized, soft nickel and more. All available at no additional cost, except for Verdi Green Rub. Primelite will also work with you when a custom color is needed. Send us a paint chip or a pantone color, and Primelite will deliver the perfect fixture, color and finish!
Colors (powder coated): White, Matte White, Almond, Gray, Black, Black Gloss, Yellow, Orange, Red, Burgundy, Pink, Light Blue, Dark Blue, Navy Blue, Turquoise, Green, Hunter Green, Verdi Green, Soft Nickle, Aluminum, Chrome, Gold, Antique Brass, Copper, Galvanized, Bronze, Bronze Tone, Brown and Verdi Green Rub.
