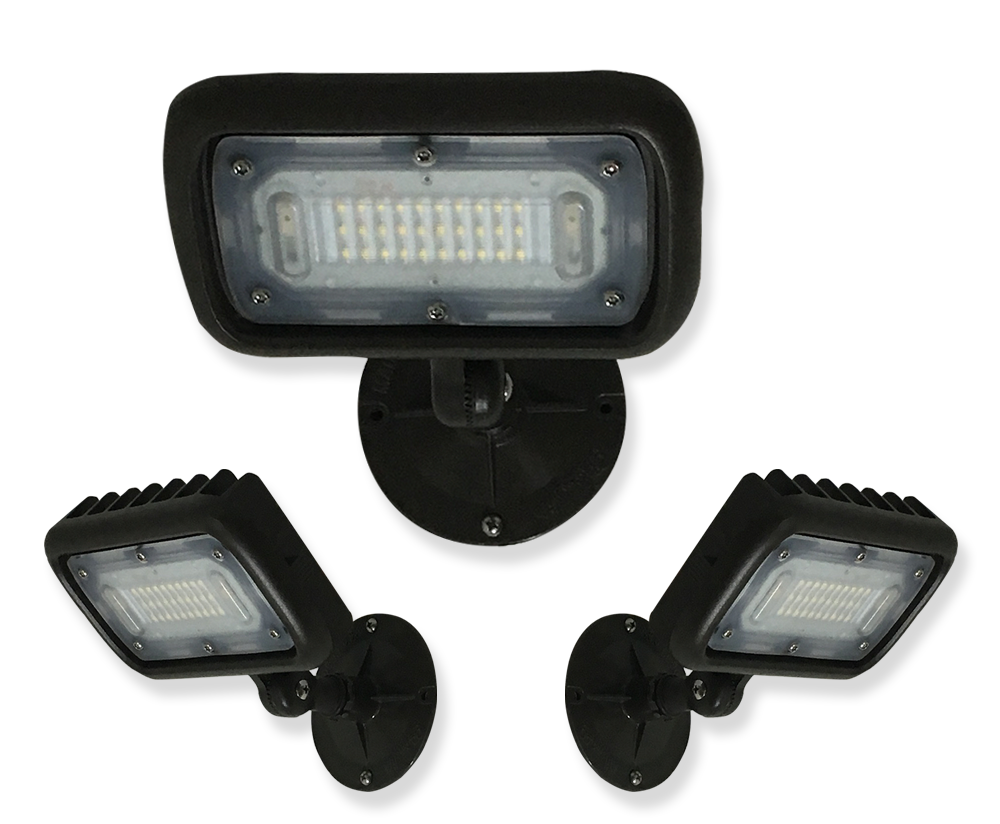

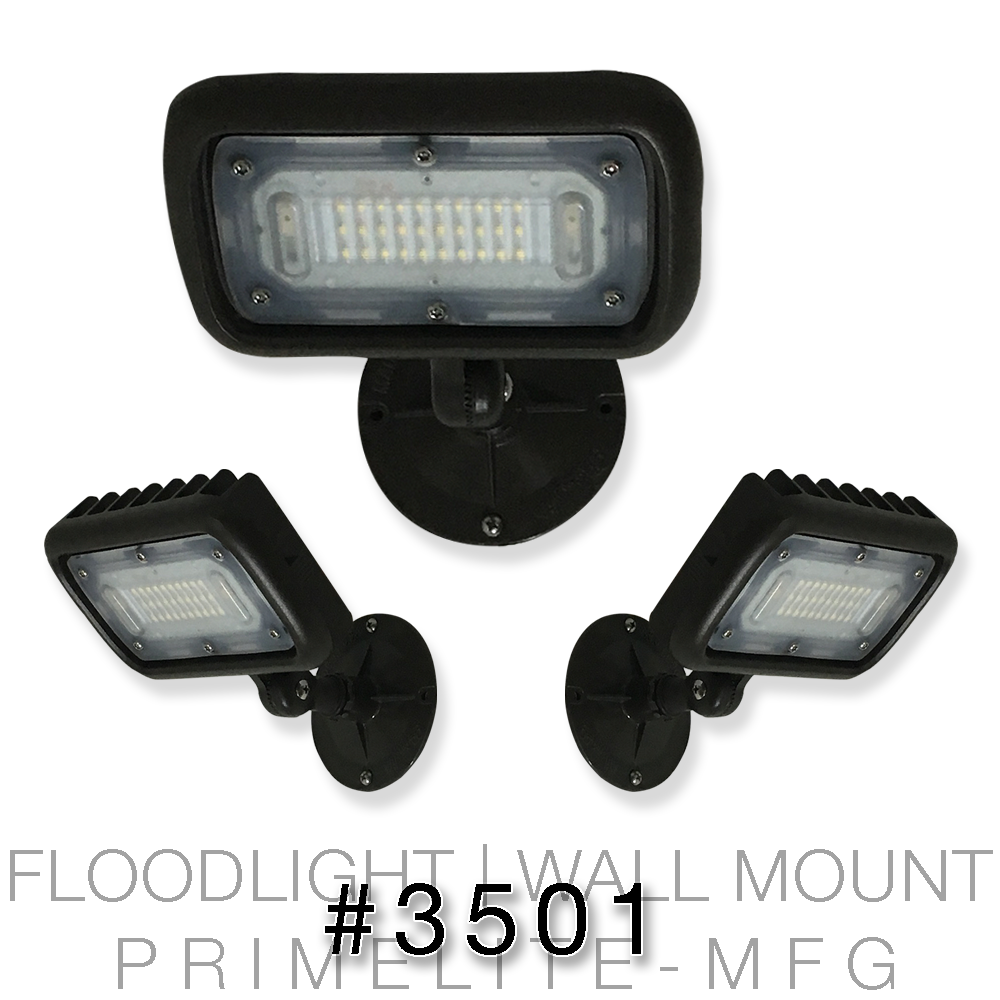

30W LED Wall Floodlight

30 Watt LED floodlight designed for wall or ceiling mount on any 4″ round junction box. Features a 180° swivel to adjust the angle of light.

Catalog # 3501 LED30
Product price
Additional options total:
Order total:

Request a Quote

Description

Catalog # 3501 LED30

Size: Height: 8.75″ | Width: 7″ | Extension: 3.375″ | 180° Swivel

Construction: Cast Aluminum

Finishes: Available only in Bronze (shown)

Lamps: 30W LED

Description: 30 Watt LED floodlight designed for wall or ceiling mount on any 4″ round junction box. Features a 180° swivel to adjust the angle of light.

  • Made in the U.S.A.
  • Estimated 50,000-hour life
  • 30 Watts LED
  • 3600 Lumens (120 Lumens per watt)
  • 0-10V Dimmable
  • Available in either Soft White 3000K, Cool White 4000K, or Natural Light 5000K
  • IP66 rated and suitable for use in ambient from -40°C to 50°C (-40°F 122°F)
  • Wide Flood beam spread 110°H x 110°V
  • UL wet location listed and DLC qualified.
  • Mount to 4″ Octagon Junction Box
  • Other Mounting Options Available
  • Limited Warranty: 3 year

Custom Options Available! Contact Us for a Quote

Cut Sheet

#3501-ESW LED30

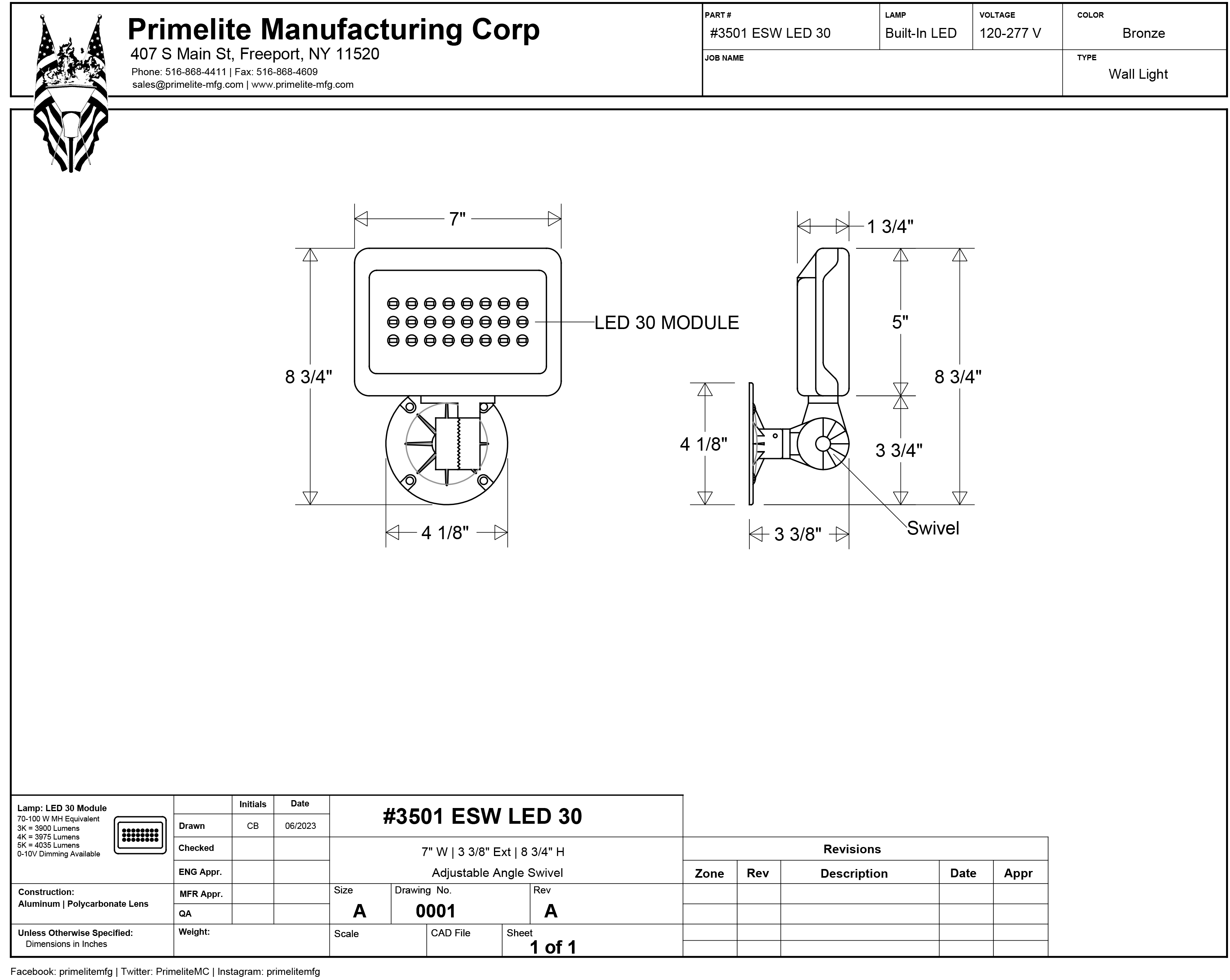

#3501 LED30 Technical Drawing
