Cylinder Shade on Top Mount Heavy Gauge J Arm

Cylinder shade for exterior installation on a heavy-gauge top mount “J” gooseneck 1.5″ schedule-40 pipe arm. Secures onto a 3″ round post.  UL Listed.

Catalog # 423/20WG-1962

Product price
Additional options total:
Order total:
Request a Quote

Description

Catalog # 423/20WG-1962

Dimensions: Arm Height: 28″ | Extension: 29″ | Shade Diameter: 20″ | Shade Height: 11.5″

Construction: Aluminum

Finishes: Choice of 29 powder-coated color options | Jelly Jar available in Clear (4) and Frosted (5) finishes | Custom finish upon request

Lamps: 200 Watt Incandescent

Description: Cylinder shade for exterior installation on a heavy-gauge top mount “J” gooseneck 1.5″ schedule-40 pipe arm. Secures onto a 3″ round post.  UL Listed.

Custom Options Available! Contact Us for a Quote

Product Detail

423/20WG-4-1962 Clear Jelly Jar

Shade Diameter: 20″ | Total Height: 28″ | Extension: 29″

For use with one 200 Watt incandescent bulb (bulb not included).

423/20WG-5-1962 Frosted Jelly Jar

Shade Diameter: 20″ | Total Height: 28″ | Extension: 29″

For use with one 200 Watt incandescent bulb (bulb not included).

Cut Sheet

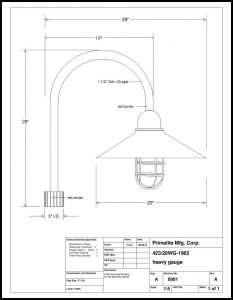

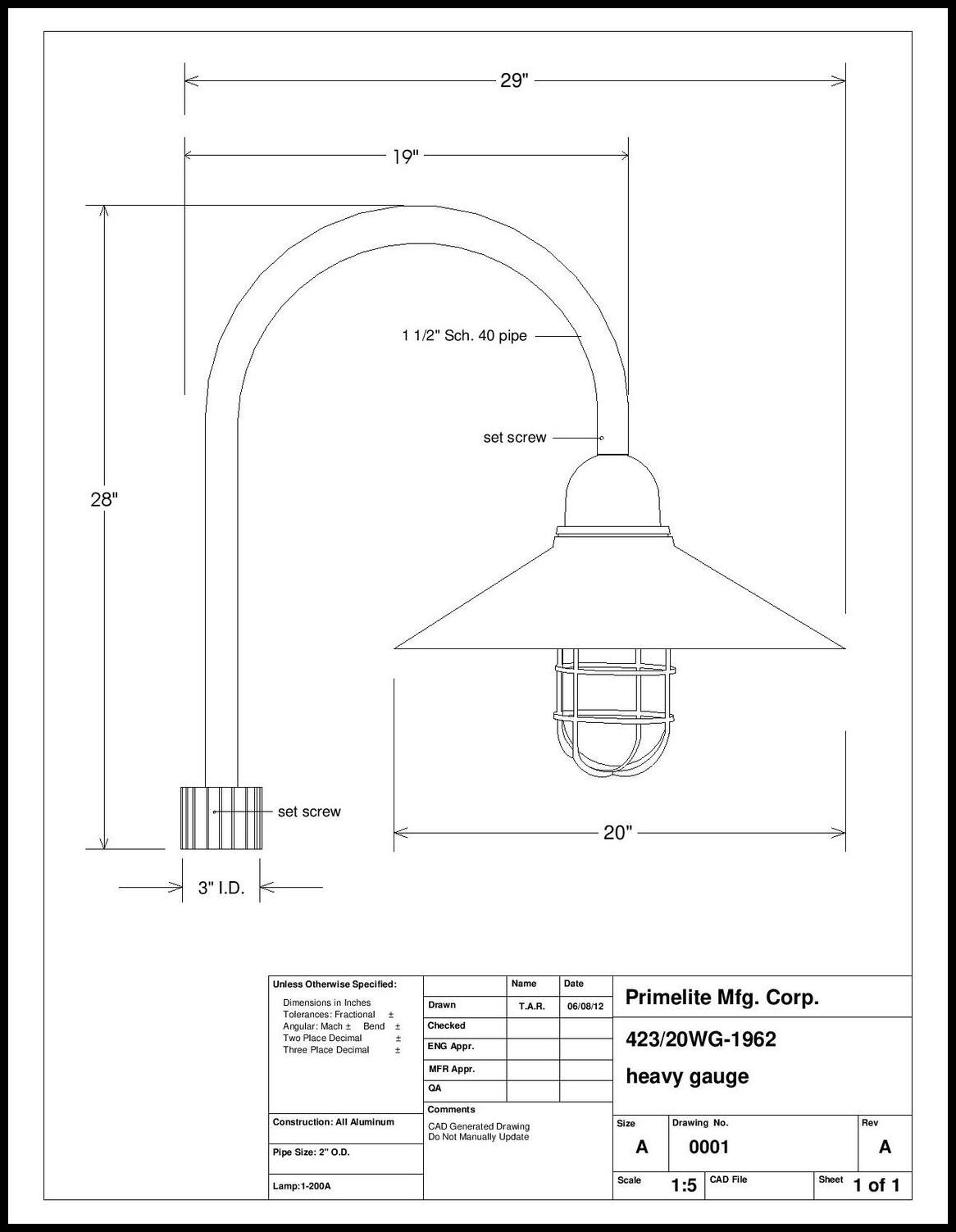

#423/20WG-1962 – Technical Drawing

Color Options

Primelite in Color!

Primelite offers a wide selection of colors, 29 dazzling colors! From red, blue, yellow, orange, to our painted metallic finishes; chrome, galvanized, soft nickel and more. All available at no additional cost, except for Verdi Green Rub. Primelite will also work with you when a custom color is needed. Send us a paint chip or a pantone color, and Primelite will deliver the perfect fixture, color and finish!

Colors (powder coated): White, Matte White, Almond, Gray, Black, Black Gloss, Yellow, Orange, Red, Burgundy, Pink, Light Blue, Dark Blue, Navy Blue, Turquoise, Green, Hunter Green, Verdi Green, Soft Nickle, Aluminum, Chrome, Gold, Antique Brass, Copper, Galvanized, Bronze, Bronze Tone, Brown and Verdi Green Rub.
