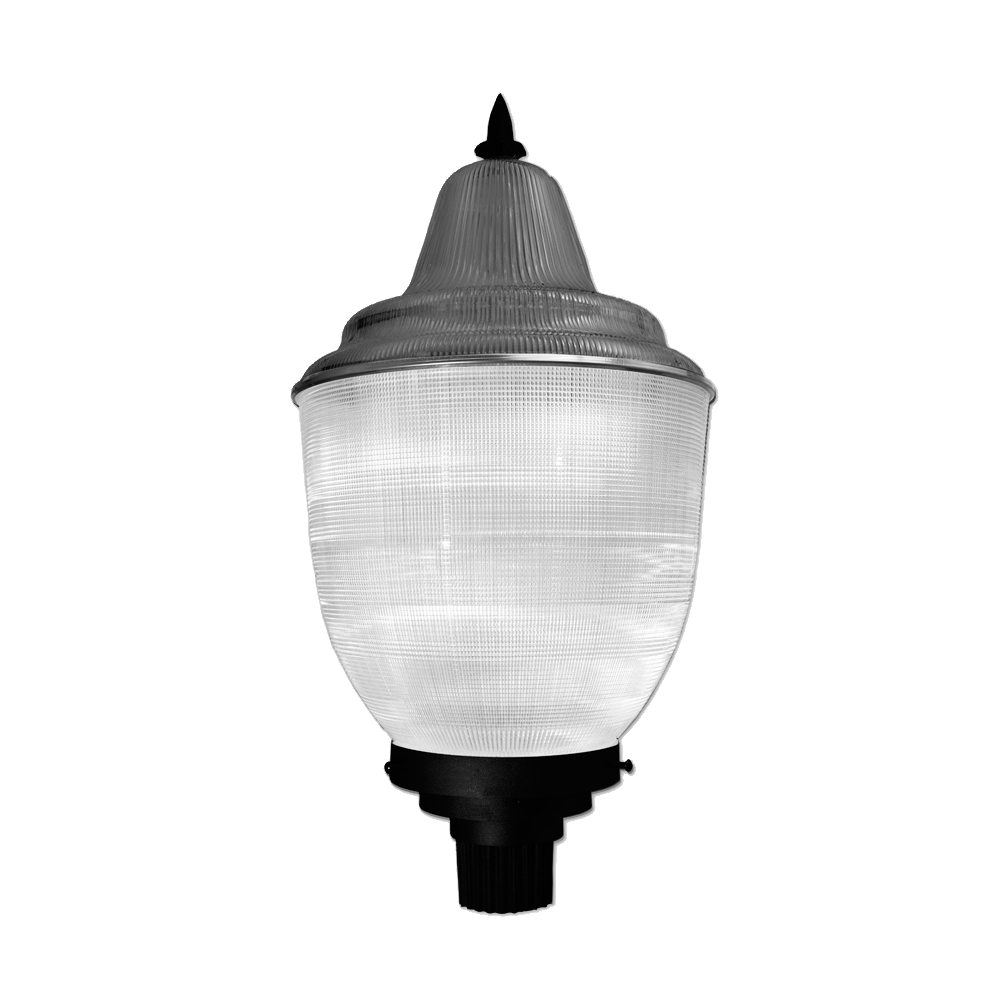

Prismatic Acorn Street Light

Name: Prismatic Acorn Street Light
SKU: 1235

Our #1235 features a prismatic refractor & top with a decorative finial. It is available with a dark sky friendly option to limit light pollution.

Catalog # 1235

Lamp Options

Light Lid Options

Clear

Finishes *

Product price
Additional options total:
Order total:

Request a Quote

Categories: Globe Lighting, Post Street Lights

Description

Catalog #1235 Series

Dimensions: 16″ diameter with a 32″ height and a 3″ post fitter.

Construction: Aluminum.

Finish Option: Choice of 29 powder-coated color options. Custom finish upon request.

Globe: Prismatic acrylic type V refractor bottom & prismatic acrylic top with a clamp band and a decorative finial.

Light Lid Option: Choice of no light lid (100% up light), perforated light lid (5% up light), or non-perforated light lid (no up light).

Lamp Option: Choice of either an incandescent socket (E26 base), mogul socket (E39 base), or integrated LED (40W, 48W, 68W, or 100W options). See the Product Details tab for more details.

Also Available: Globe only – #1235 GNO.

Custom Options Available! Contact Us for a Quote

Product Details

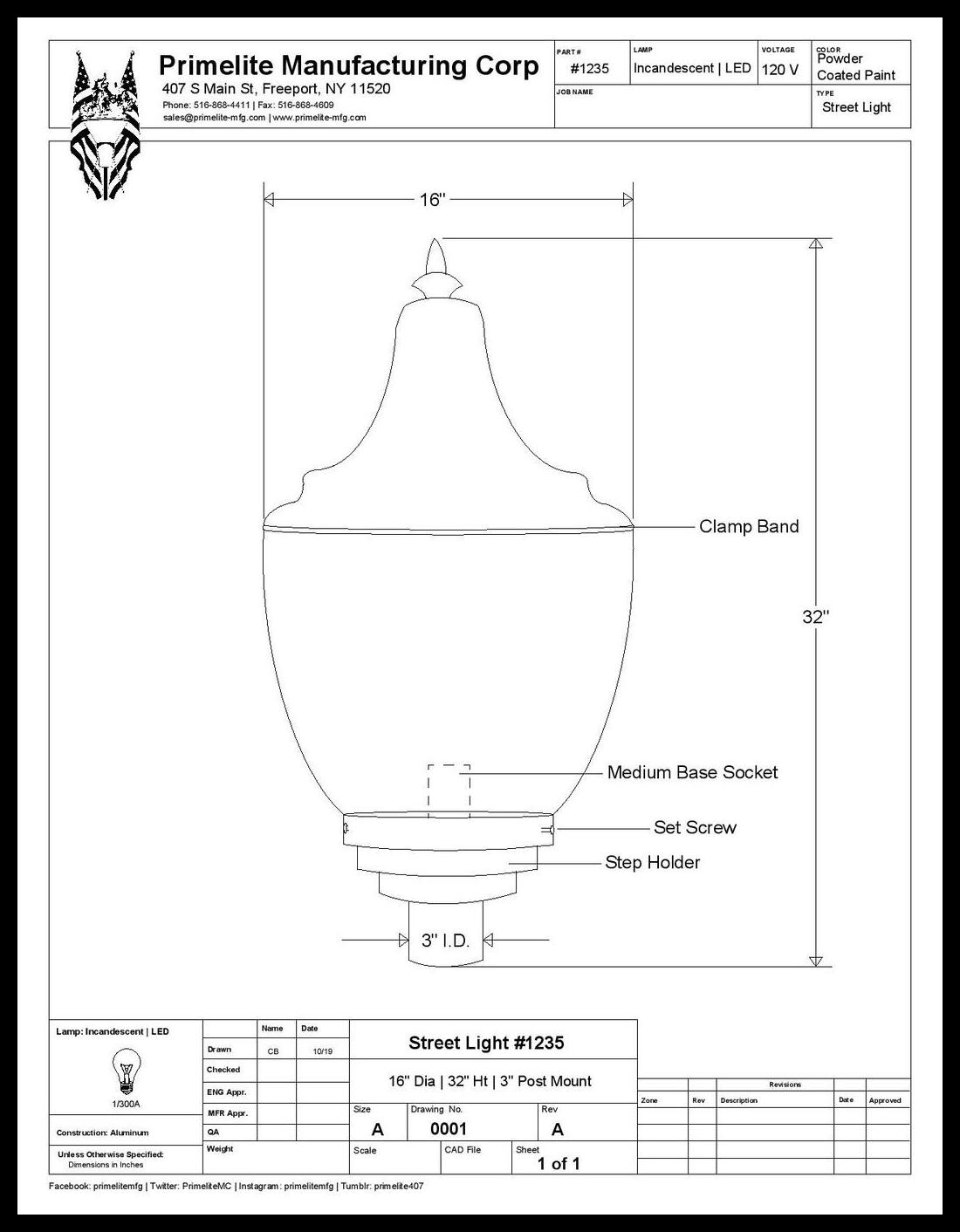

Catalog #	Description	Technical Drawing
#1235	Dimensions: 16″ diameter \| 32″ height \| 3″ post fitter Designed for use with a medium (E26) base incandescent lightbulb of up to 300 Watts (bulb not included). LED bulbs are available for purchase.	Technical Drawing
#1235 Mogul	Dimensions: 16″ diameter \| 32″ height \| 3″ post fitter Designed for use with a mogul (E39) base incandescent lightbulb of up to 300 Watts (bulb not included). LED bulbs are available for purchase.	Technical Drawing
#1235 LED40	Dimensions: 16″ diameter \| 32″ height \| 3″ post fitter Includes four integrated 10-watt LED chips for a total of 40 Watts with a 50,000-hour bulb life. 6,500 lumen output. 120-277 Volts. Choice of 3K or 4K.	Technical Drawing
#1235 LED48	Dimensions: 16″ diameter \| 32″ height \| 3″ post fitter Includes four integrated 12-watt LED chips for a total of 48 Watts with a 50,000-hour bulb life. 4,500 lumen output. 120 Volts. Choice of 3K or 4K. Electronic dimming – list of compatible dimmers.	Technical Drawing
#1235 LED68	Dimensions: 16″ diameter \| 32″ height \| 3″ post fitter Includes four integrated 17-watt LED chips for a total of 68 Watts with a 50,000-hour bulb life. 12,000 lumen output. 120-277 Volts. Choice of 3K or 4K.	Technical Drawing
#1235 LED100	Dimensions: 16″ diameter \| 32″ height \| 3″ post fitter Includes four integrated 25-watt LED chips for a total of 100 Watts with a 50,000-hour bulb life. 15,000 lumen output. 120-277 Volts. Choice of 3K or 4K.	Technical Drawing

Color Options

Primelite in Color!

Primelite offers a wide selection of colors, 29 dazzling colors! From red, blue, yellow, orange, to our painted metallic finishes; chrome, galvanized, soft nickel and more. All available at no additional cost, except for Verdi Green Rub. Primelite will also work with you when a custom color is needed. Send us a paint chip or a pantone color, and Primelite will deliver the perfect fixture, color and finish!

Colors (powder coated): White, Matte White, Almond, Gray, Black, Black Gloss, Yellow, Orange, Red, Burgundy, Pink, Light Blue, Dark Blue, Navy Blue, Turquoise, Green, Hunter Green, Verdi Green, Soft Nickel, Aluminum, Chrome, Gold, Antique Brass, Copper, Galvanized, Bronze, Bronze Tone, Brown and Verdi Green Rub.
