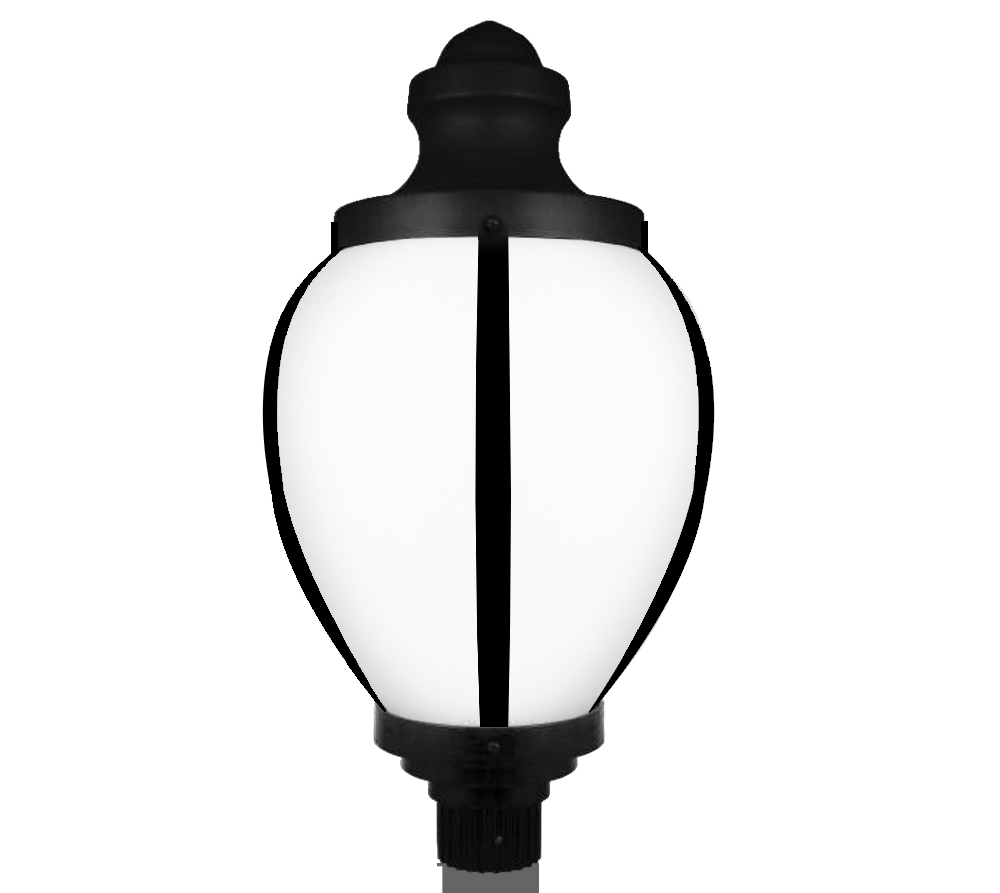

Acorn Street Light with Metal Cage

Our #1230X features a decorative aluminum top with trim, which adds style while limiting light pollution, making this a dark sky friendly option.

Catalog # 1230X

Product price
Additional options total:
Order total:
Request a Quote

Description

Catalog #1230X Series

Dimensions:  17″ diameter with a 31.5″ height and a 3″ post fitter.

Construction: Aluminum.

Finish Option: Choice of 29 powder-coated color options. Custom finish upon request.

Globe Option: Choice of either clear polycarbonate or frosted acrylic globe.

Lamp Option: Choice of either an incandescent socket (E26 base), mogul socket (E39 base), or integrated LED (40W, 48W, 68W, or 100W options). See the Product Details tab for more details.

Also Available: Without Cage – #1230. Globe only – #1230 X GNO.



Custom Options Available! Contact Us for a Quote

Product Details

Catalog # Description Technical Drawing
#1230X Dimensions: 17″ diameter | 31.5″ height | 3″ post fitter

Designed for use with a medium (E26) base incandescent lightbulb of up to 300 Watts (bulb not included). LED bulbs are available for purchase.

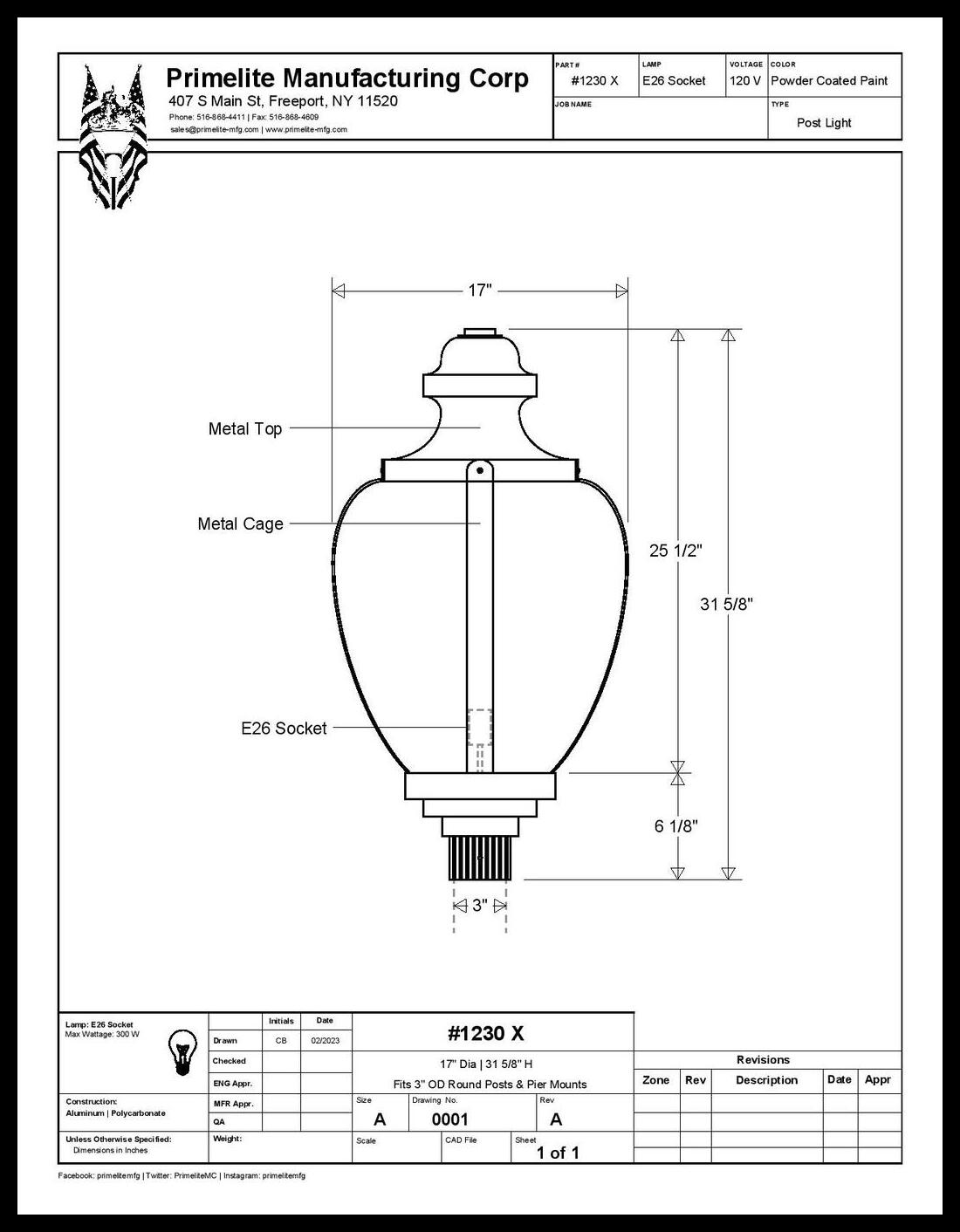

Technical Drawing

#1230X Mogul Dimensions: 17″ diameter | 31.5″ height | 3″ post fitter

Designed for use with a mogul (E39) base incandescent lightbulb of up to 300 Watts (bulb not included). LED bulbs are available for purchase.

Technical Drawing

#1230X LED40 Dimensions: 17″ diameter | 31.5″ height | 3″ post fitter

Includes four integrated 10-watt LED chips for a total of 40 Watts with a 50,000-hour bulb life. 6,500 lumen output. 120-277 Volts. Choice of 3K or 4K.

Technical Drawing

#1230X LED48 Dimensions: 17″ diameter | 31.5″ height | 3″ post fitter

Includes four integrated 12-watt LED chips for a total of 48 Watts with a 50,000-hour bulb life. 4,500 lumen output. 120 Volts. Choice of 3K or 4K. Electronic dimming – list of compatible dimmers.

Technical Drawing

#1230X LED68 Dimensions: 17″ diameter | 31.5″ height | 3″ post fitter

Includes four integrated 17-watt LED chips for a total of 68 Watts with a 50,000-hour bulb life. 12,000 lumen output. 120-277 Volts. Choice of 3K or 4K.

Technical Drawing

#1230X LED100 Dimensions: 17″ diameter | 31.5″ height | 3″ post fitter

Includes four integrated 25-watt LED chips for a total of 100 Watts with a 50,000-hour bulb life. 15,000 lumen output. 120-277 Volts. Choice of 3K or 4K.

Technical Drawing

Color Options

Primelite in Color!
Primelite offers a wide selection of colors, 29 dazzling colors! From red, blue, yellow, orange, to our painted metallic finishes; chrome, galvanized, soft nickel and more. All available at no additional cost, except for Verdi Green Rub. Primelite will also work with you when a custom color is needed. Send us a paint chip or a pantone color, and Primelite will deliver the perfect fixture, color and finish!
Colors (powder coated): White, Matte White, Almond, Gray, Black, Black Gloss, Yellow, Orange, Red, Burgundy, Pink, Light Blue, Dark Blue, Navy Blue, Turquoise, Green, Hunter Green, Verdi Green, Soft Nickel, Aluminum, Chrome, Gold, Antique Brass, Copper, Galvanized, Bronze, Bronze Tone, Brown and Verdi Green Rub.
