Small, medium and large step shades for outdoor installation on a small J-shaped arm attached to a mount fitted for 3″ diameter posts.
Dimensions: Arm Height: 23.5″ | Multiple sizes available. See Lamp Options for details.
Construction: Aluminum
Finishes: Choice of 29 powder-coated color options. Custom finish upon request.
Lamps: Incandescent
Description: Small, medium and large step shades for outdoor installation on a small J-shaped arm attached to a mount fitted for 3″ diameter posts.
Custom Options Available! Contact Us for a Quote
| 37/10-1863 | 10″ Incandescent Shade
Shade Height: 12″ | Shade Diameter: 10″ | Extension: 21″ For use with one 150 Watt maximum incandescent bulb (bulb not included). |
| 37/16-1863 | 16″ Incandescent Shade
Shade Height: 15″ | Shade Diameter: 16″ | Extension: 24″ For use with one 200 Watt maximum incandescent bulb (bulb not included). |
| 37/16-1863 LED24 | 16″ LED24 Shade
Shade Height: 15″ | Shade Diameter: 16″ | Extension: 24″ Includes two integrated 12 Watt LED chips for a total of 24 Watts. Available in 3,000K or 4,000K color temperature, 1,800 Lumen output and 50,000-hour bulb life. |
| 37/16-1863 LED44 | 16″ LED44 Shade
Shade Height: 15″ | Shade Diameter: 16″ | Extension: 24″ Includes two integrated 22 Watt LED chips for a total of 44 Watts. Available in 3,000K or 4,000K color temperature and 50,000-hour bulb life. |
| 37/20-1863 | 20″ Incandescent Shade
Shade Height: 16″ | Shade Diameter: 20″ | Extension: 26″ For use with one 300 Watt maximum incandescent bulb (bulb not included). |
#37/10-1863 – Technical Drawing

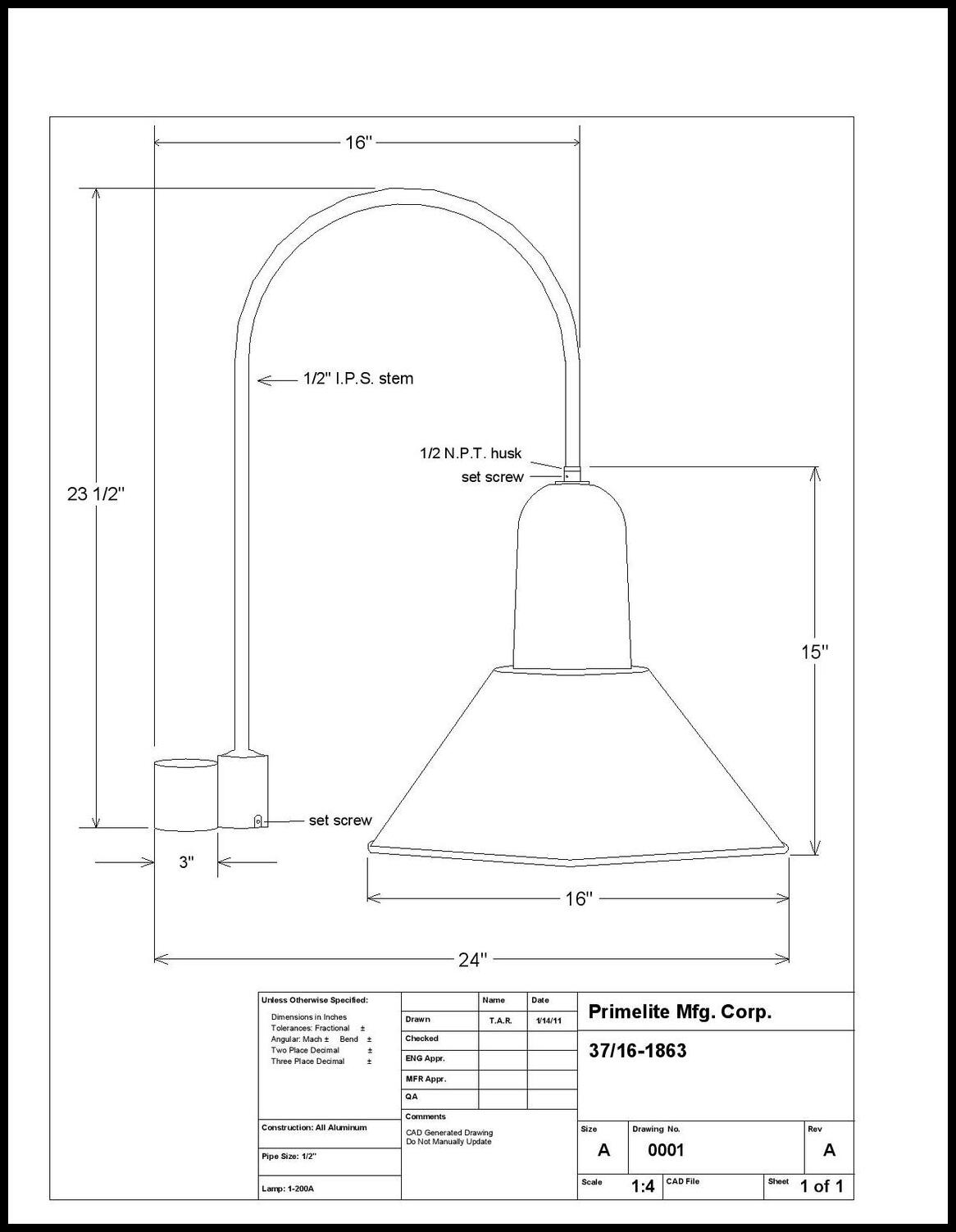

#37/16-1863 – Technical Drawing
#37/20-1863 – Technical Drawing
