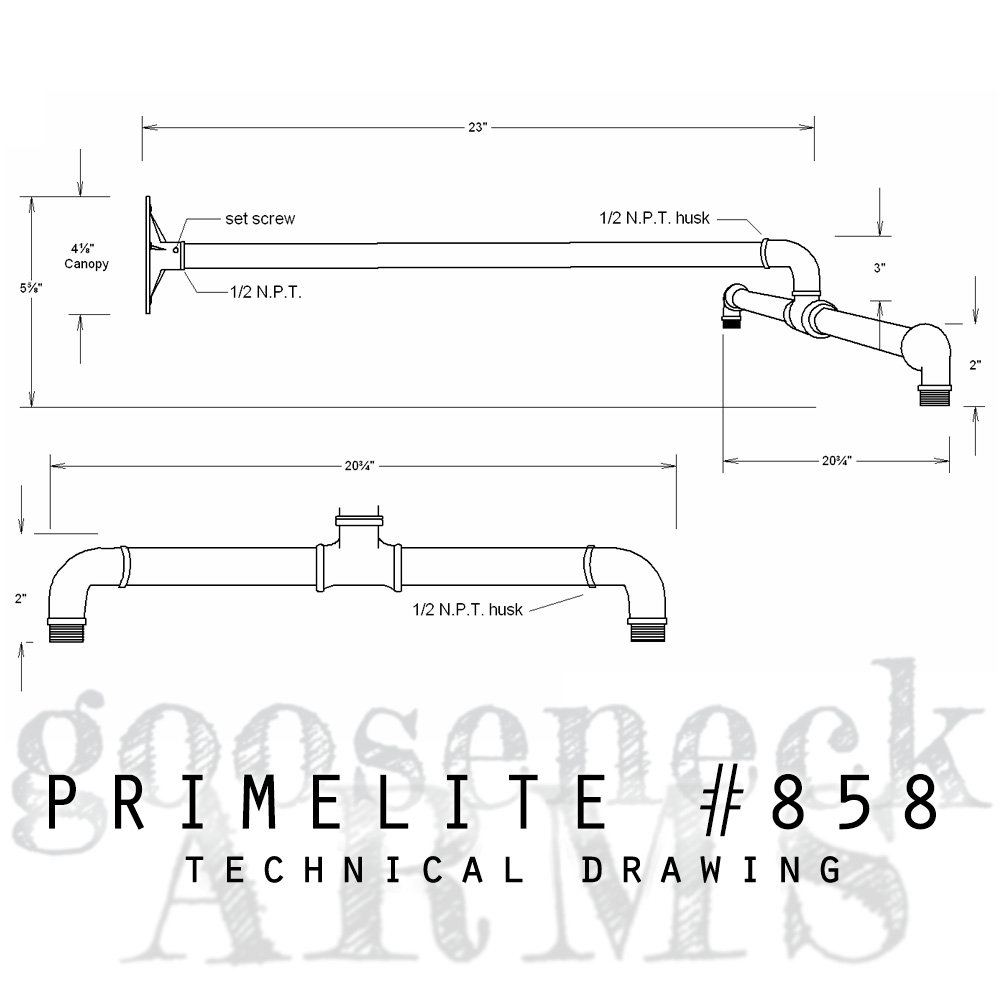

technical drawing gooseneck arm #858

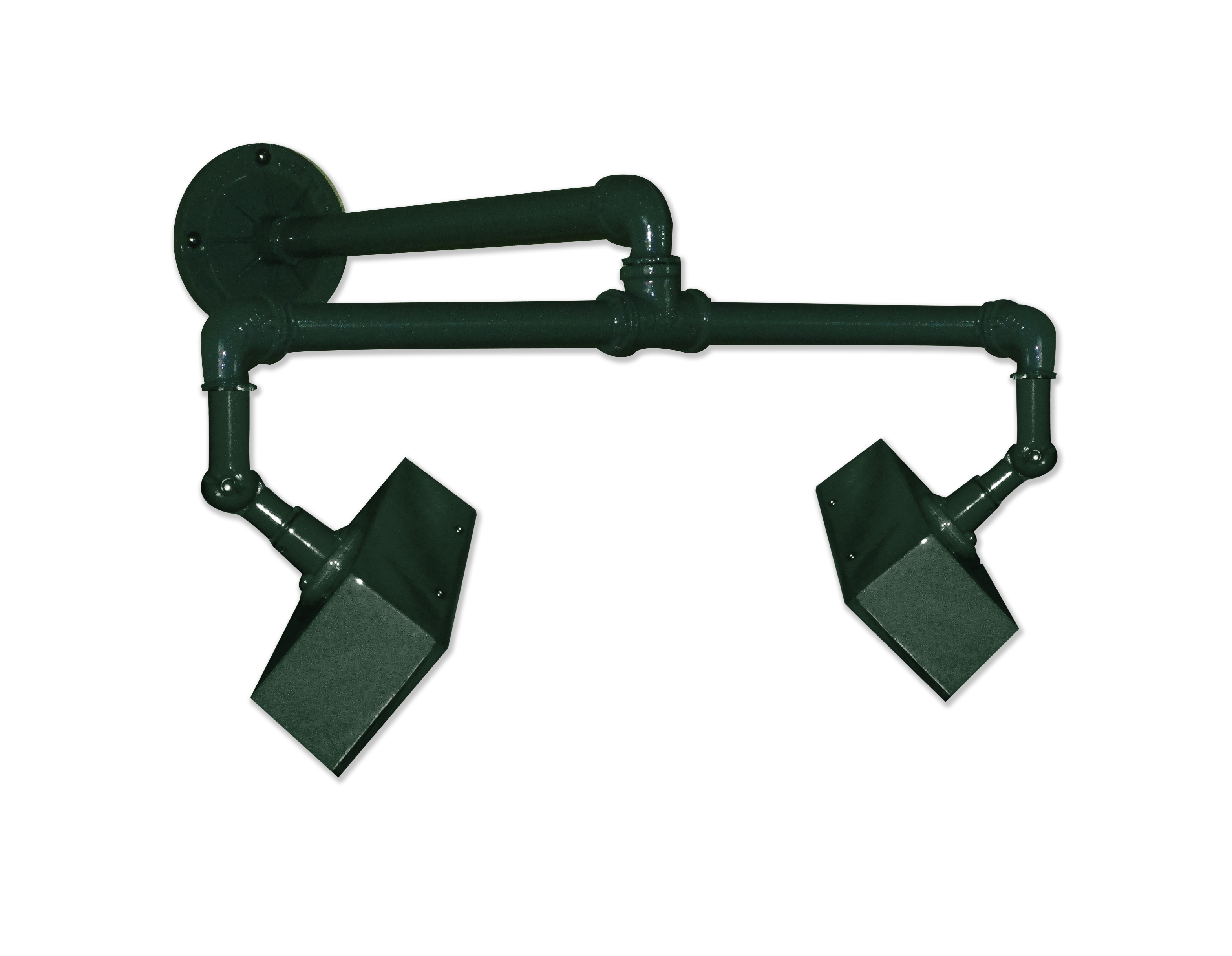

2′ LED Linear Sign Light on Double Light Gooseneck Arm

Small linear light with an ESW swivel and integrated 25W LED strip light, driver, and heat sink on a double-loop 1/2″ IPS schedule 40 aluminum parapet mount arm with a 4 1/8″ round cast canopy that screws onto a 4″ octagonal box.

Catalog # 5744/858 ESW LED50

Product price
Additional options total:
Order total:
Request a Quote
Categories: , , ,

Description

Catalog # 5744/858 ESW LED50

Dimensions: Height: 9″ | Width: 23″ | Extension: 24 ⅝” | 4″ Mount for Octagonal Junction Box | 1/2″ Schedule 40 Pipe | Pipe Diameter: 7/8″

Construction: Aluminum | Acrylic

Finishes: Choice of 29 powder-coated color options | Acrylic lens available in White (3), Clear (4), and Frosted (5) finishes | Custom finish upon request.

Lamps: LED 50W

Description: Small linear light with an ESW swivel and integrated 25W LED strip light, driver, and heat sink on a double-loop 1/2″ IPS schedule 40 aluminum parapet mount arm with a 4 1/8″ round cast canopy that screws onto a 4″ octagonal box.

  • Made in the U.S.A.
  • All Aluminum Construction
  • 1/2″ Schedule 40 pipe
  • Screws directly into 4″ Octagonal Box
  • Over 25 powder-coated finishes
  • 50,000 Hours Bulb Life
  • Mount: Screws Directly into 4″ Octagonal Box
  • Other Mounting Options Available

Custom Options Available! Contact Us for a Quote

Product Detail

57744/3-858 LED50 White Acrylic Lens

Height: 9″ | Width: 23″ | Extension: 24 ⅝” | 4″ Mount for Octagonal Junction Box | 1/2″ Schedule 40 Pipe | Pipe Diameter: 7/8″

Small linear light with an ESW swivel and integrated 25W LED strip light, driver, and heat sink on a double-loop 1/2″ IPS schedule 40 aluminum parapet mount arm with a 4 1/8″ round cast canopy that screws onto a 4″ octagonal box.
57744/4-858 LED50 Clear Acrylic Lens

Height: 9″ | Width: 23″ | Extension: 24 ⅝” | 4″ Mount for Octagonal Junction Box | 1/2″ Schedule 40 Pipe | Pipe Diameter: 7/8″

Small linear light with an ESW swivel and integrated 25W LED strip light, driver, and heat sink on a double-loop 1/2″ IPS schedule 40 aluminum parapet mount arm with a 4 1/8″ round cast canopy that screws onto a 4″ octagonal box.
57744/5-858 LED50 Frosted Acrylic Lens

Height: 9″ | Width: 23″ | Extension: 24 ⅝” | 4″ Mount for Octagonal Junction Box | 1/2″ Schedule 40 Pipe | Pipe Diameter: 7/8″

Small linear light with an ESW swivel and integrated 25W LED strip light, driver, and heat sink on a double-loop 1/2″ IPS schedule 40 aluminum parapet mount arm with a 4 1/8″ round cast canopy that screws onto a 4″ octagonal box.

Cut Sheet

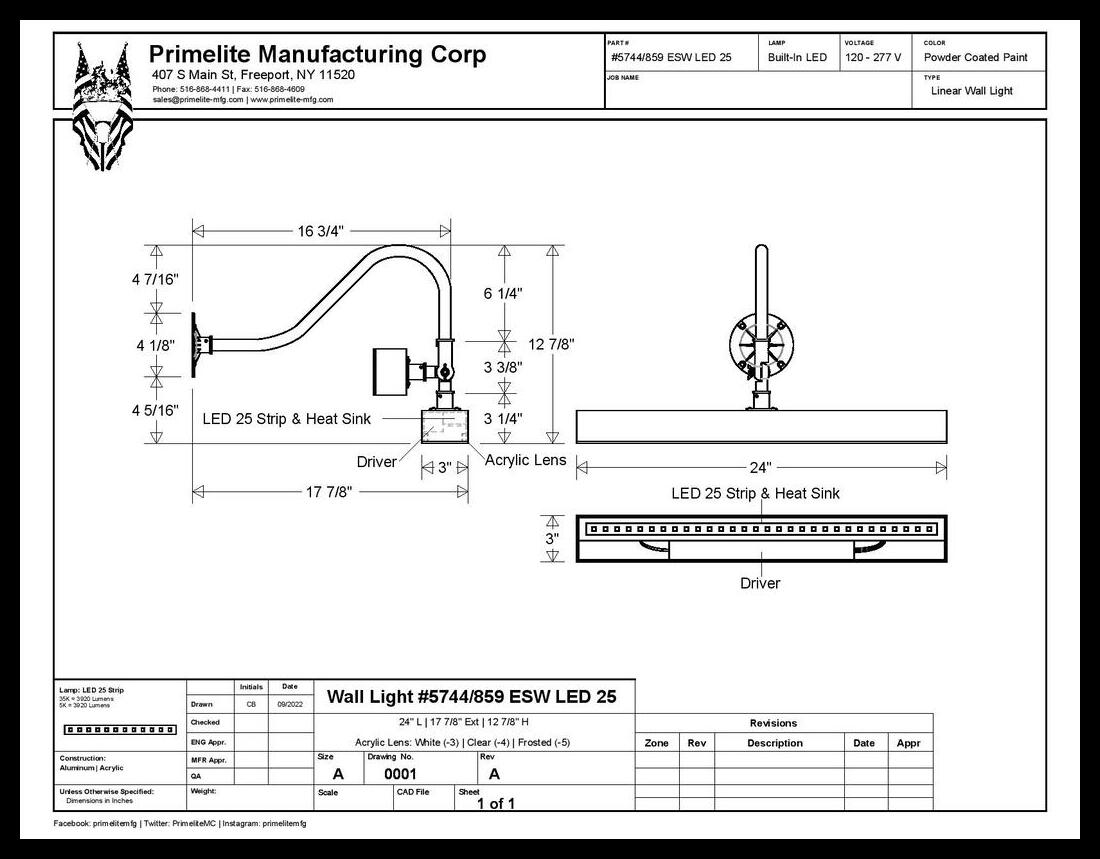

# 5744/859 ESW LED25 – Technical Drawing

# 5744A LED25 – Technical Drawing

Color Options

Primelite in Color!

Primelite offers a wide selection of colors, 29 dazzling colors! From red, blue, yellow, orange, to our painted metallic finishes; chrome, galvanized, soft nickel and more. All available at no additional cost, except for Verdi Green Rub. Primelite will also work with you when a custom color is needed. Send us a paint chip or a pantone color, and Primelite will deliver the perfect fixture, color and finish!

Colors (powder coated): White, Matte White, Almond, Gray, Black, Black Gloss, Yellow, Orange, Red, Burgundy, Pink, Light Blue, Dark Blue, Navy Blue, Turquoise, Green, Hunter Green, Verdi Green, Soft Nickle, Aluminum, Chrome, Gold, Antique Brass, Copper, Galvanized, Bronze, Bronze Tone, Brown and Verdi Green Rub.
