Cylinder Wall Bracket with Flat top

All Aluminum Cylinder with white lens and flat top on a heavy-duty aluminum wall bracket.

Catalog # 530/825
Product price
Additional options total:
Order total:
Request a Quote

Description

Catalog # 530-825

Dimensions: Height: 11″ | Width: 12″ | Extension: 17″

Construction: Aluminum Construction

Finishes: Lens available in White (-3), Clear (-4)  |  Custom finish upon request

Description: All Aluminum Cylinder with white lens and flat top on a heavy duty aluminum wall bracket.

Features

  • Made in the U.S.A.
  • Aluminum Construction
  • Choice of E26 Socket
  • Over 25 powder-coated finishes
  • Mount: Fits over and secures to a 4″ Octagonal Box
  • 1 Year Manufacture Warranty
  • UL Listed

Custom Options Available! Contact Us for a Quote

Product Detail

1535/3 All Aluminum Cylinder with white lens

Overall Dimension: 12″ High, 6″ Diameter. E26 Medium Base Socket (Bulb not included)

1535/4 All Aluminum Cylinder with Rings, clear lens

Overall Dimension: 12″ High, 6″ Diameter. E26 Medium Base Socket (Bulb not included)

Cut Sheet

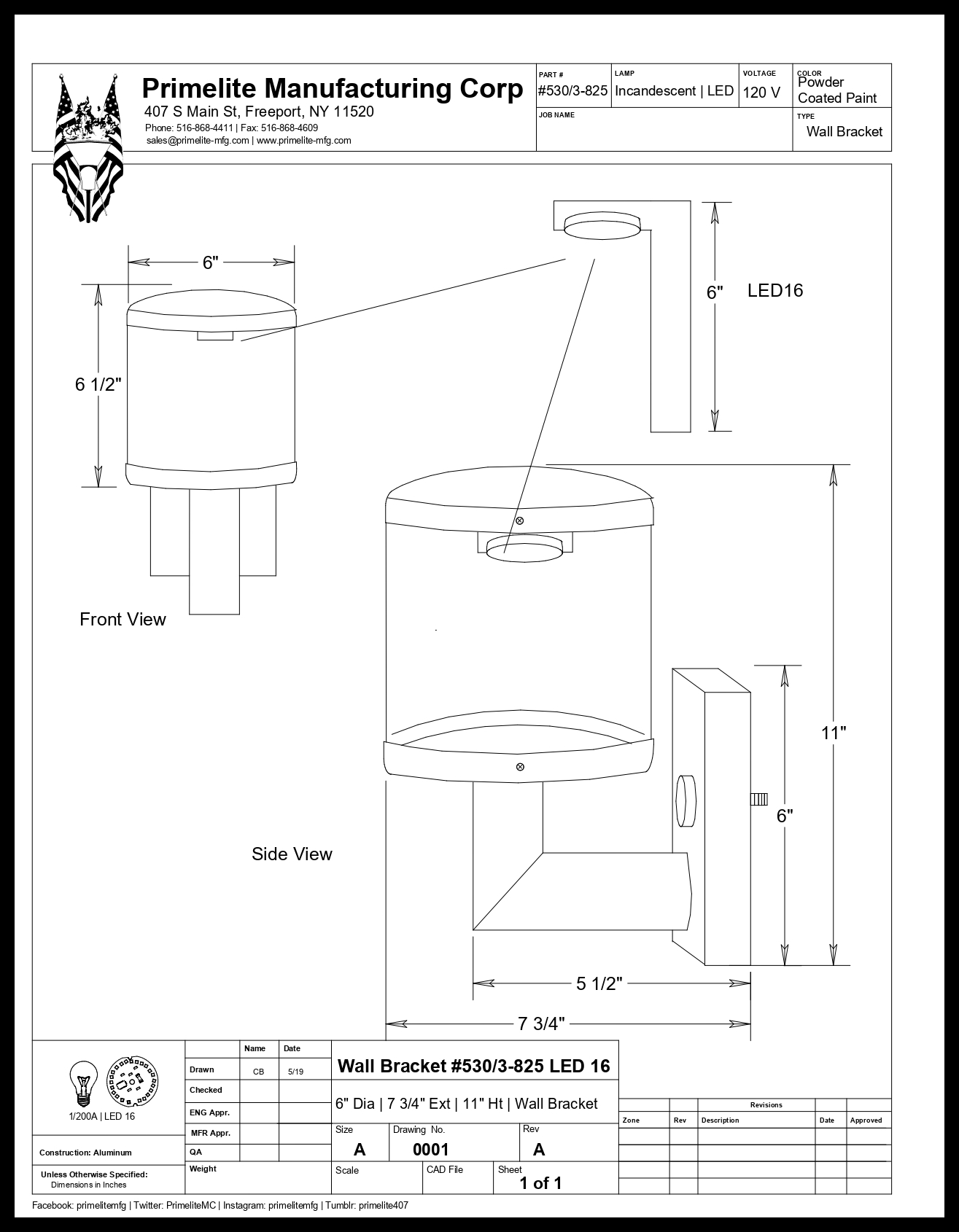

535/825 Technical Drawing

Color Options

Primelite in Color!
Primelite offers a wide selection of colors, 29 dazzling colors! From red, blue, yellow, orange, to our painted metallic finishes; chrome, galvanized, soft nickel and more. All available at no additional cost, except for Verdi Green Rub. Primelite will also work with you when a custom color is needed. Send us a paint chip or a pantone color, and Primelite will deliver the perfect fixture, color and finish!
Colors (powder coated): White, Matte White, Almond, Gray, Black, Black Gloss, Yellow, Orange, Red, Burgundy, Pink, Light Blue, Dark Blue, Navy Blue, Turquoise, Green, Hunter Green, Verdi Green, Soft Nickle, Aluminum, Chrome, Gold, Antique Brass, Copper, Galvanized, Bronze, Bronze Tone, Brown and Verdi Green Rub.
