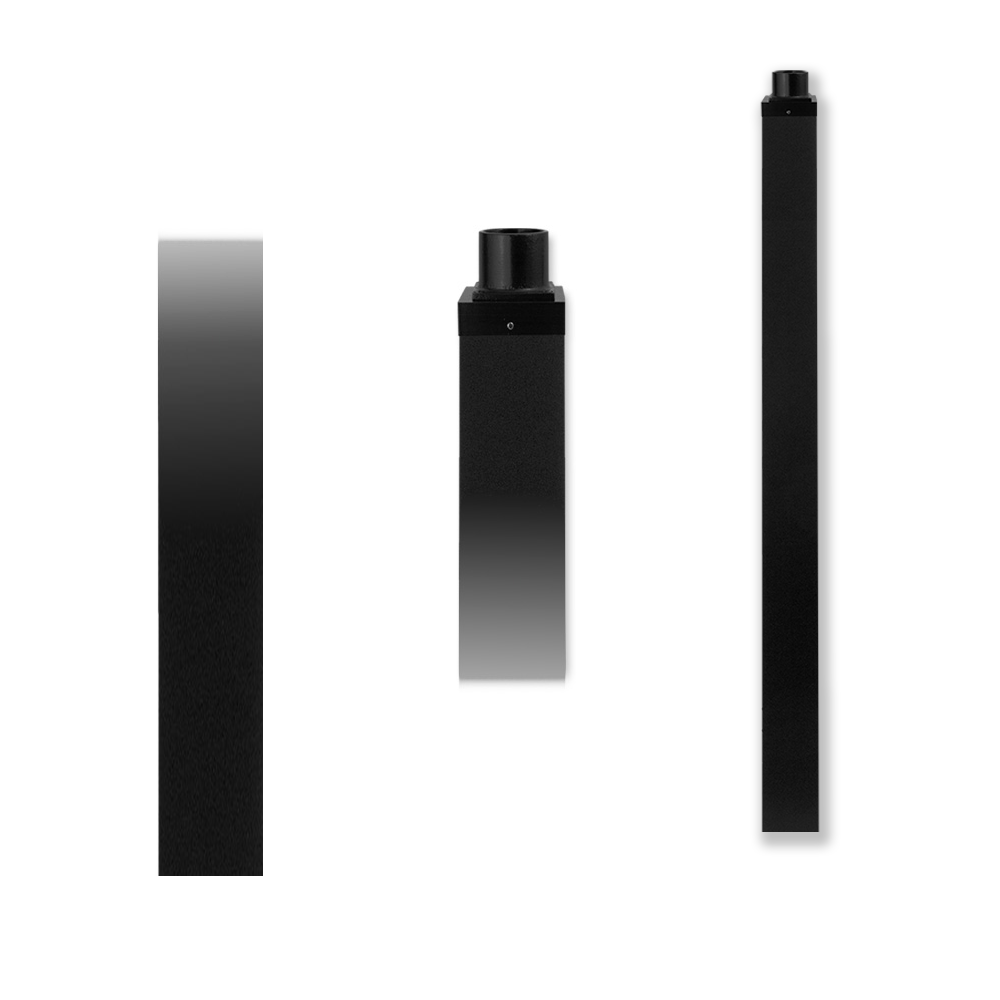

Multiple sizes of 4″ square aluminum posts available in 0.125 gauge.
Dimensions: Width: 4″ | Top Adapter Diameter: 3″ | Multiple sizes available, see Post Options for details.
Construction: Aluminum
Finishes: Choice of 29 powder-coated color options. Custom finish upon request.
Description: Multiple sizes of 4″ square aluminum posts available in 0.125 gauge.
Custom Options Available! Contact Us for a Quote
| 6407 | 7-Foot 0.125-Gauge Post
Height: 7′ | Width: 4″ | Gauge: 0.125 Includes a top adapter for 3″ diameter holders. |
| 6408 | 8-Foot 0.125-Gauge Post
Height: 8′ | Width: 4″ | Gauge: 0.125 Includes a top adapter for 3″ diameter holders. |
| 6410 | 10-Foot 0.125-Gauge Post
Height: 10′ | Width: 4″ | Gauge: 0.125 Includes a top adapter for 3″ diameter holders. |
| 6412 | 12-Foot 0.125-Gauge Post
Height: 12′ | Width: 4″ | Gauge: 0.125 Includes a top adapter for 3″ diameter holders. |
| 6414 | 14-Foot 0.125-Gauge Post
Height: 14′ | Width: 4″ | Gauge: 0.125 Includes a top adapter for 3″ diameter holders. |
| 6416 | 16-Foot 0.125-Gauge Post
Height: 16′ | Width: 4″ | Gauge: 0.125 Includes a top adapter for 3″ diameter holders. |
| 6418 | 18-Foot 0.125-Gauge Post
Height: 18′ | Width: 4″ | Gauge: 0.125 Includes a top adapter for 3″ diameter holders. |

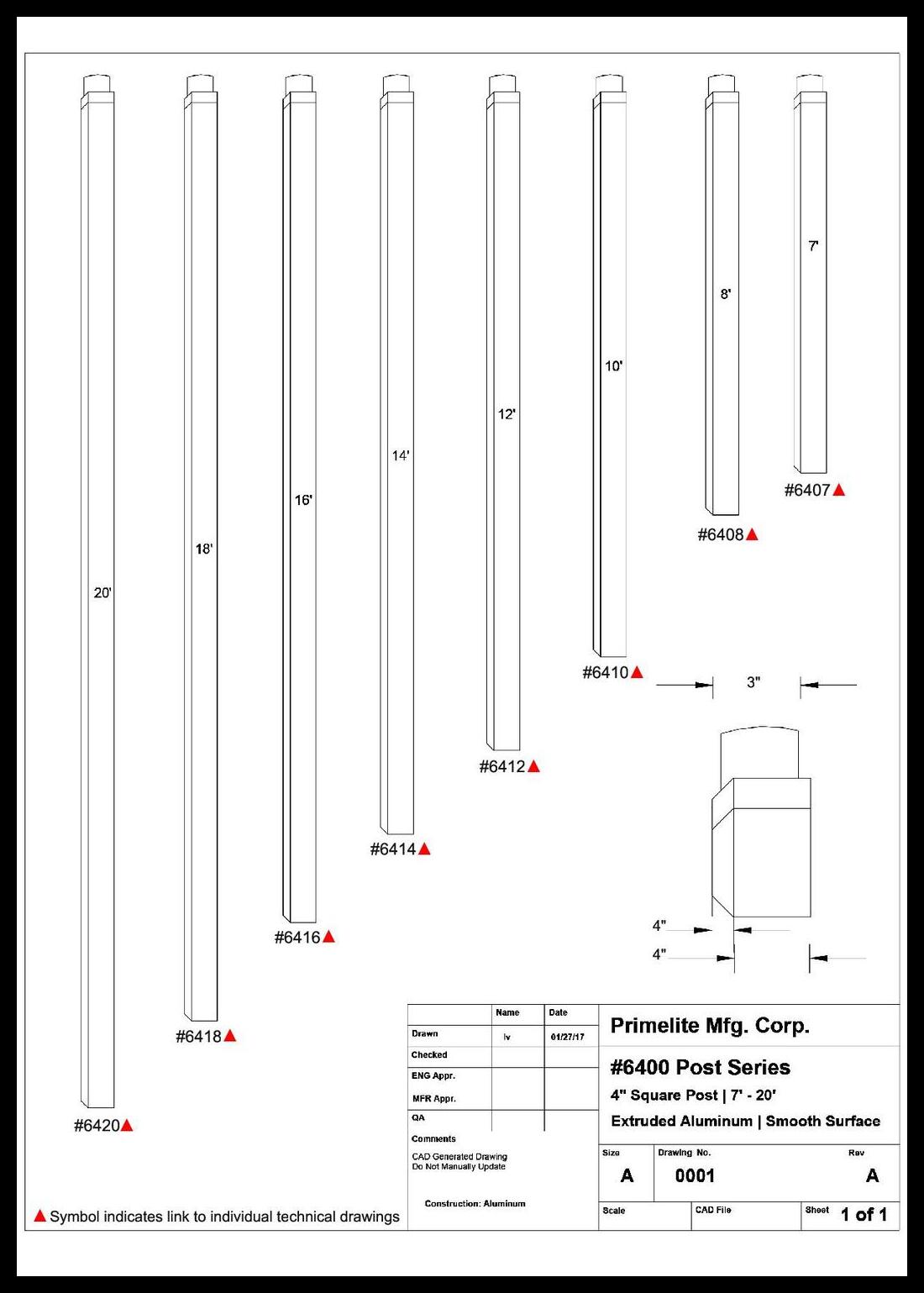

# 6400 Series – Technical Drawing

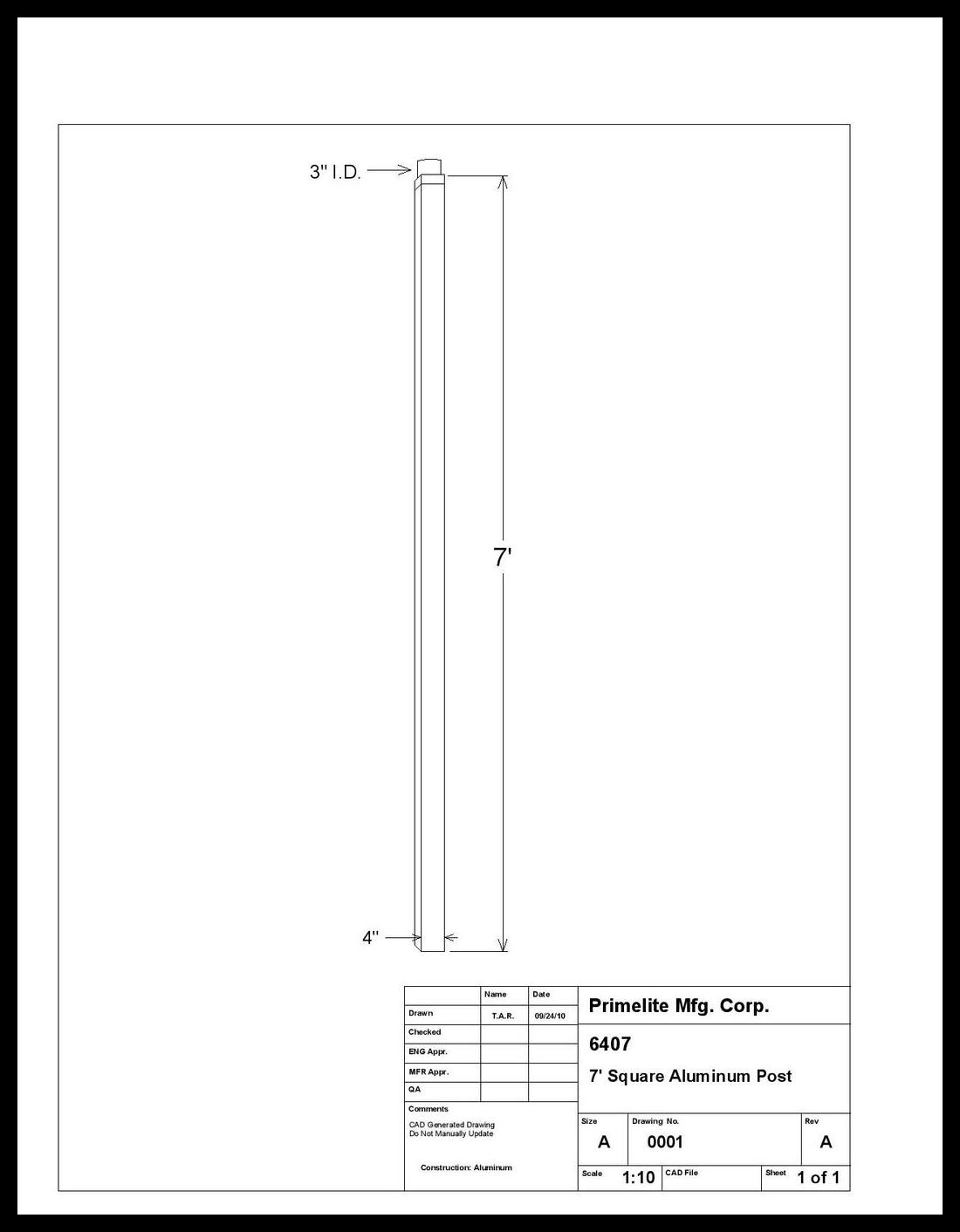

# 6407 – Technical Drawing
# 6408 – Technical Drawing

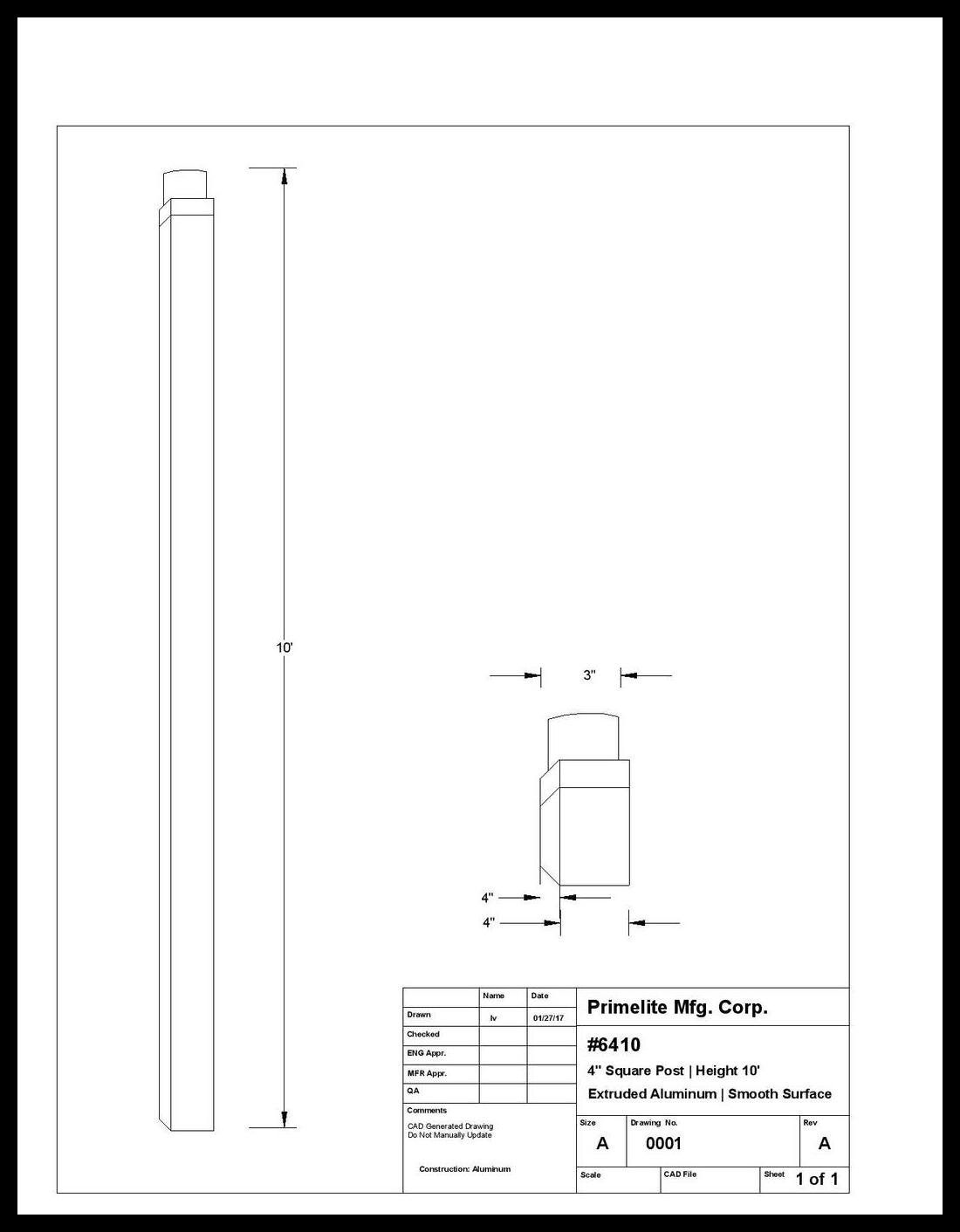

# 6410 – Technical Drawing
# 6412 – Technical Drawing
# 6414 – Technical Drawing
# 6416 – Technical Drawing

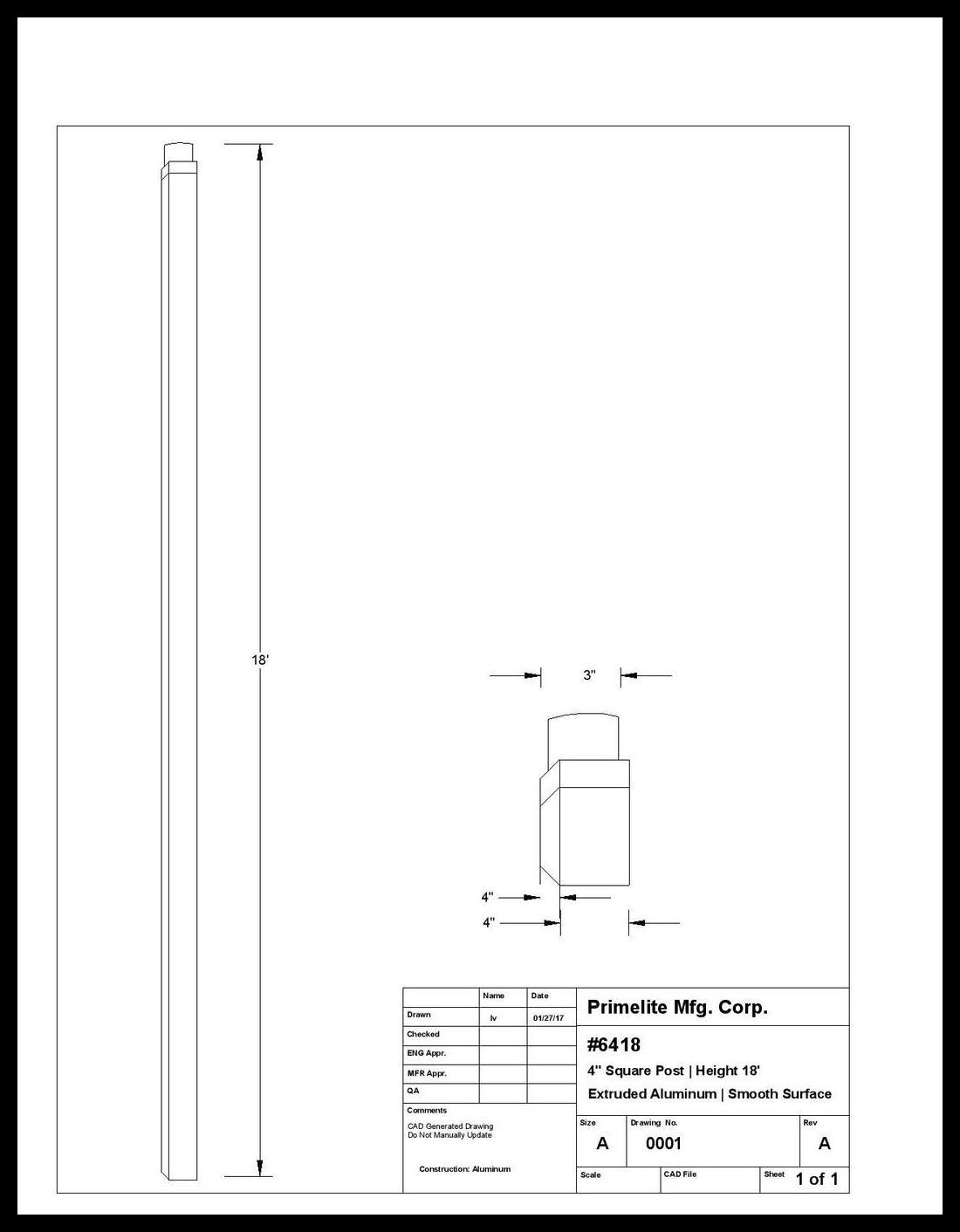

# 6418 – Technical Drawing
