Sturdy Cast Aluminum Lantern Wall Bracket

Cast Aluminum Lantern on Wall Bracket Mount.

Catalog # 3271

Product price
Additional options total:
Order total:
Request a Quote
Categories: ,

Description

Catalog # 3271 | 3271 LED

Size: Height: 31″ | Width: 15″ | Extension: 17″

Construction: Cast Aluminum

Finishes: Choice of 29 powder-coated color options. Custom finish upon request.

Lamps: Incandescent | LED16, LED40, LED68, LED124 and LED186

Description: Cast Aluminum Lantern on Wall Bracket Mount.

Features

  • Made in the U.S.A.
  • Sturdy Cast Aluminum Construction
  • High Temperature Porcelain Socket
  • E26 Edison Medium Base Socket
  • LED Options Available
  • Over 25 powder-coated finishes
  • Square 6″ x 4 1/2″ Wall Bracket Mount

Custom Options Available! Contact Us for a Quote

Additional information

Lens Finish

-1 Smoke, -3 White, -4 Clear, -5 Frost

Lamp Options

This cast wall bracket lantern is available in the following lamp configurations:

3271 Designed for use with an E26 incandescent lightbulb of up to 150 Watts (bulb not included).
3271 LED16 Includes an integrated 16 Watt LED chip with a 50,000-hour bulb life. Choose between 3000K warm light or 4000K bright light.

1,000 Lumens
3271 LED40 Includes four integrated 10 Watt LED chips with a 50,000-hour bulb life. Choose between 3000K warm light or 4000K bright light.

5,100 Lumens
3271 LED68 Includes four integrated 17 Watt LED chips with a 50,000-hour bulb life. Choose between 3000K warm light or 4000K bright light.

2,400 Lumens
3271 LED124 Includes four integrated 31 Watt LED chip with a 50,000-hour bulb life. Choose between 3000K warm light or 4000K bright light.

2,400 Lumens
3271 LED186 Includes six integrated 31 Watt LED chip with a 50,000-hour bulb life. Choose between 3000K warm light or 4000K bright light.

2,400 Lumens

Cut Sheet

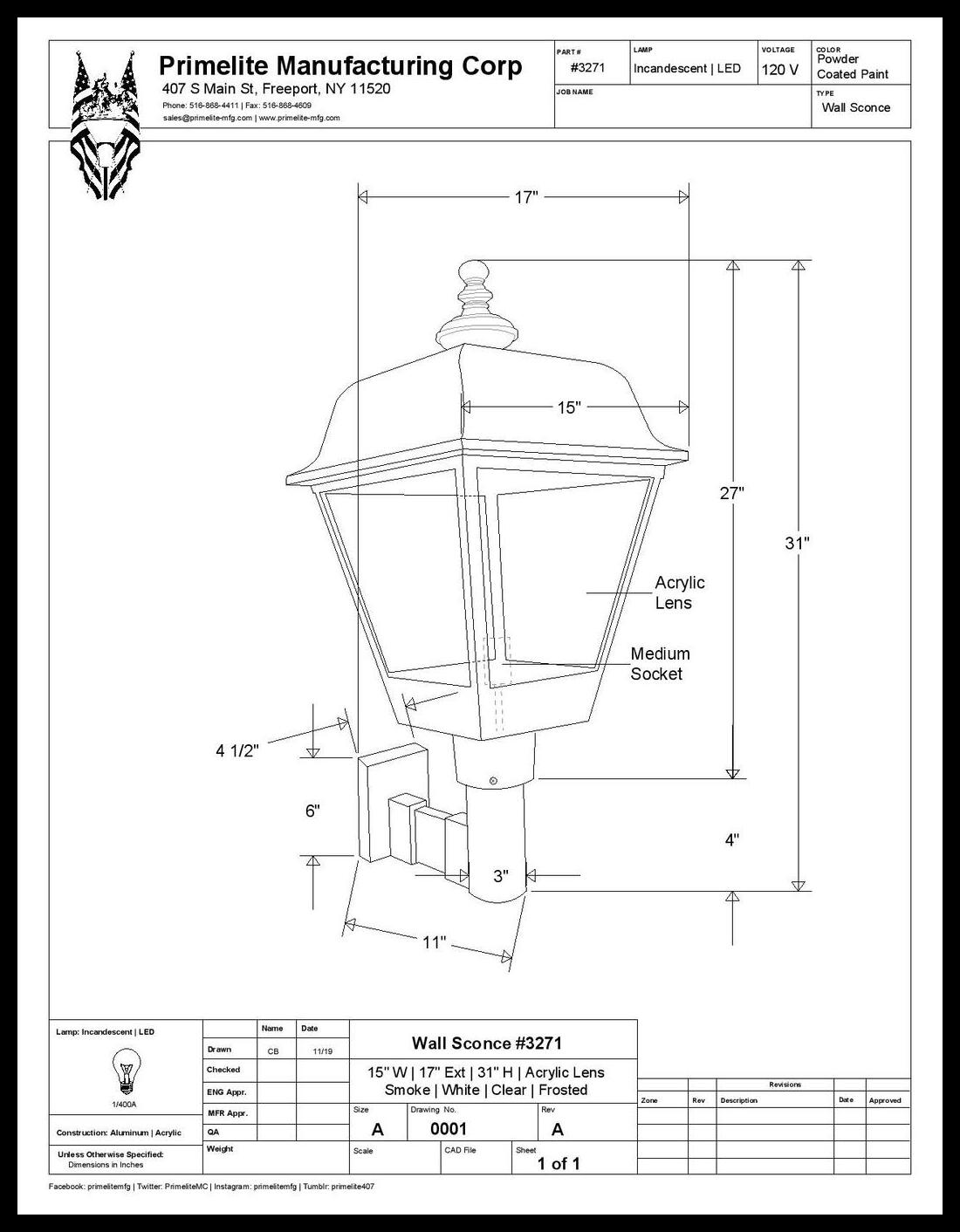

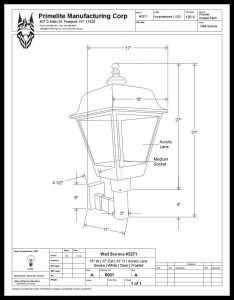

#3271 – Technical Drawing (pdf)

#3271 LED40 – Technical Drawing (pdf)

Color Options

Primelite in Color!
Primelite offers a wide selection of colors, 29 dazzling colors! From red, blue, yellow, orange, to our painted metallic finishes; chrome, galvanized, soft nickel and more. All available at no additional cost, except for Verdi Green Rub. Primelite will also work with you when a custom color is needed. Send us a paint chip or a pantone color, and Primelite will deliver the perfect fixture, color and finish!
Colors (powder coated): White, Matte White, Almond, Gray, Black, Black Gloss, Yellow, Orange, Red, Burgundy, Pink, Light Blue, Dark Blue, Navy Blue, Turquoise, Green, Hunter Green, Verdi Green, Soft Nickle, Aluminum, Chrome, Gold, Antique Brass, Copper, Galvanized, Bronze, Bronze Tone, Brown and Verdi Green Rub.
