Barn Shade on Double Mount Wall Bracket

Barn shade all-aluminum shade head for exterior installation on a double mount 1/2″ IPS schedule 40 aluminum wall-bracket arm on a 4 1/8″ round cast canopy that screws onto a 4″ octagonal box. UL Listed.

Catalog # 23/875

Product price
Additional options total:
Order total:
    Reset options
Request a Quote
Categories: ,

Description

Catalog # 23/14-875 | 23/16-875 | 23/19-875 | 23/24-875

Dimensions: Multiple Sizes Available. See Lamp Options for Details.

Construction: Aluminum

Finishes: Choice of 29 powder-coated color options. Custom finish upon request.

Lamps: Incandescent | LED

Description: Barn shade all-aluminum shade head for exterior installation on a double mount 1/2″ IPS schedule 40 aluminum wall-bracket arm on a 4 1/8″ round cast canopy that screws onto a 4″ octagonal box. UL Listed.

Custom Options Available! Contact Us for a Quote

Lamp Options

This sign light is available in the following lamp configurations:

23/14-875 14″ Incandescent Shade

Shade Diameter: 14″ | Shade Height: 8″ | Extension: 27.75″ | Drop: 10″

Designed for use with an incandescent lightbulb of up to 200 Watts (bulb not included).
23/14-875 LED12 14″ LED12 Shade

Shade Diameter: 14″ | Shade Height: 8″ | Extension: 27.75″ | Drop: 10″

Integrated LED12 chip with an 800-lumen output and 50,000-hour bulb life. Available in 3000K and 4000K color temperature.
23/16-875 16″ Incandescent Shade

Shade Diameter: 16″ | Shade Height: 9″ | Extension: 28.75″ | Drop: 11.5″

Designed for use with an incandescent lightbulb of up to 200 Watts (bulb not included).
23/16-875 LED12 16″ LED12 Shade

Shade Diameter: 16″ | Shade Height: 9″ | Extension: 28.75″ | Drop: 11.5″

Integrated LED12 chip with an 800-lumen output and 50,000-hour bulb life. Available in 3000K and 4000K color temperature.
23/16-875 LED22 16″ LED22 Shade

Shade Diameter: 16″ | Shade Height: 9″ | Extension: 28.75″ | Drop: 11.5″

Integrated LED22 chip with a 1,800-lumen output and 50,000-hour bulb life. Available in 3000K and 4000K color temperature.
23/19-875 19″ Incandescent Shade

Shade Diameter: 19″ | Shade Height: 11″ | Extension: 30.25″ | Drop: 13.5″

Designed for use with an incandescent lightbulb of up to 200 Watts (bulb not included).
23/19-875 LED12 19″ LED12 Shade

Shade Diameter: 19″ | Shade Height: 11″ | Extension: 30.25″ | Drop: 13.5″

Integrated LED12 chip with an 800-lumen output and 50,000-hour bulb life. Available in 3000K and 4000K color temperature.
23/19-875 LED22 19″ LED22 Shade

Shade Diameter: 19″ | Shade Height: 11″ | Extension: 30.25″ | Drop: 13.5″

Integrated LED22 chip with a 1,800-lumen output and 50,000-hour bulb life. Available in 3000K and 4000K color temperature.
23/24-875 24″ Incandescent Shade

Shade Diameter: 24″ | Shade Height: 11″ | Extension: 32.75″ | Drop: 13.5″

Designed for use with an incandescent lightbulb of up to 200 Watts (bulb not included).
23/24-875 LED12 24″ LED12 Shade

Shade Diameter: 24″ | Shade Height: 11″ | Extension: 32.75″ | Drop: 13.5″

Integrated LED12 chip with an 800-lumen output and 50,000-hour bulb life. Available in 3000K and 4000K color temperature.
23/24-875 LED22 24″ LED22 Shade

Shade Diameter: 24″ | Shade Height: 11″ | Extension: 32.75″ | Drop: 13.5″

Integrated LED22 chip with a 1,800-lumen output and 50,000-hour bulb life. Available in 3000K and 4000K color temperature.

Cut Sheet

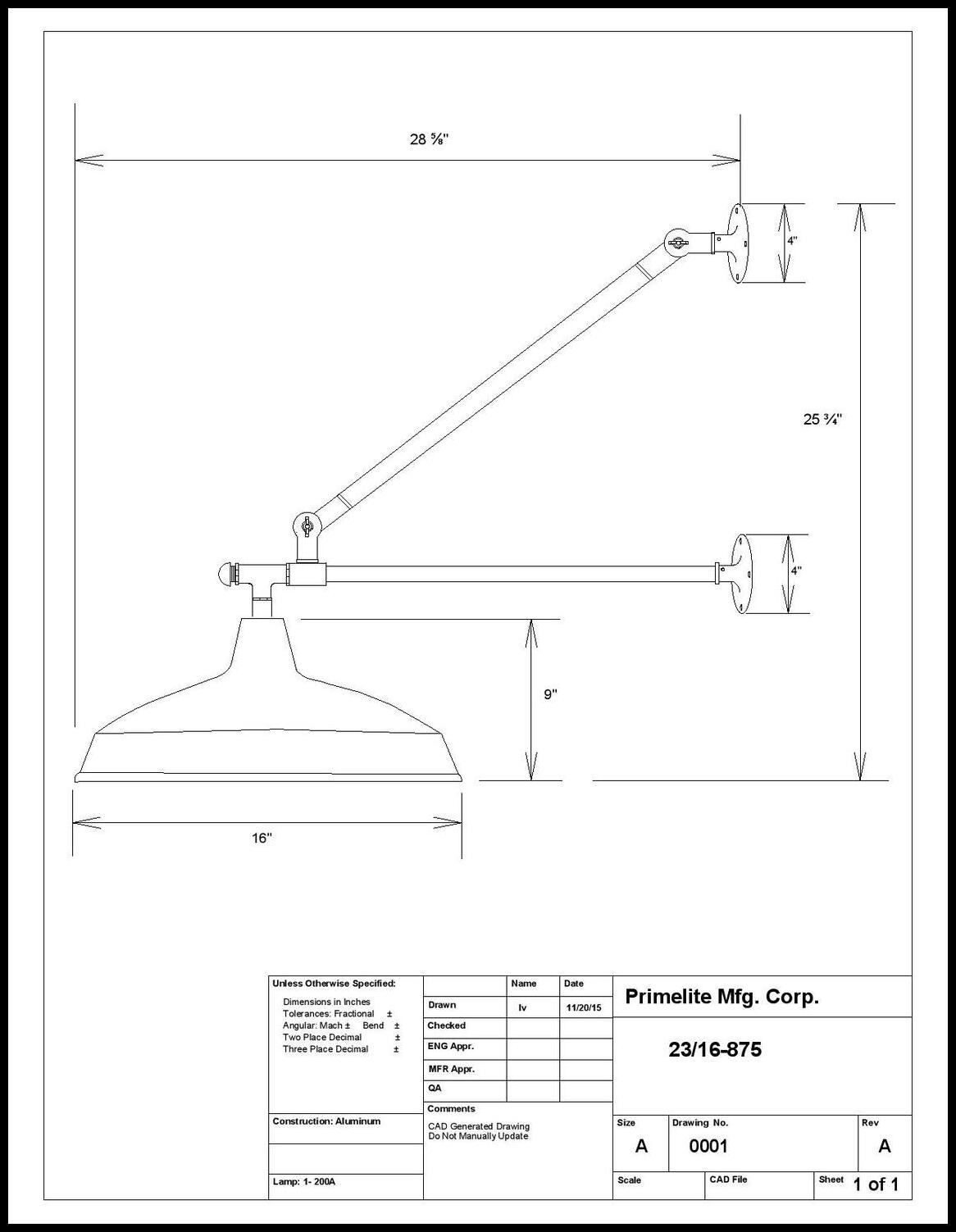

#23/16-875– Technical Drawing

Color Options

Primelite in Color!
Primelite offers a wide selection of colors, 29 dazzling colors! From red, blue, yellow, orange, to our painted metallic finishes; chrome, galvanized, soft nickel and more. All available at no additional cost, except for Verdi Green Rub. Primelite will also work with you when a custom color is needed. Send us a paint chip or a pantone color, and Primelite will deliver the perfect fixture, color and finish!
Colors (powder coated): White, Matte White, Almond, Gray, Black, Black Gloss, Yellow, Orange, Red, Burgundy, Pink, Light Blue, Dark Blue, Navy Blue, Turquoise, Green, Hunter Green, Verdi Green, Soft Nickle, Aluminum, Chrome, Gold, Antique Brass, Copper, Galvanized, Bronze, Bronze Tone, Brown and Verdi Green Rub.
