#23/16-1862 TST | Turtle Light

RLM Warehouse Gooseneck Post Mount

Small, medium and large RLM warehouse shades for outdoor installation on a down arm attached to a mount fitted for 3″ diameter posts.

Catalog # 23/1862 | 23/16-1862 | 23/16-1862 TST

Product price
Additional options total:
Order total:
    Reset options
Request a Quote
Categories: ,

Description

Catalog # 23/14-1862 | 23/16-1862 | 23/19-1862 | 23/16-1862 STS

Dimensions: Arm Width: : 24″ | Multiple sizes available. See Lamp Options for details.

Construction: Aluminum

Finishes: Choice of 29 powder-coated color options. Custom finish upon request.

Lamps: Incandescent | LED

Option: Turtle Light (#23/16-1862)

Description: Small, medium and large RLM warehouse shades for outdoor installation on a down arm attached to a mount fitted for 3″ diameter posts.

Custom Options Available! Contact Us for a Quote

Additional information

Turtle Light

Basic Light, Turtle (STS)

Product Detail

23/14-1862 14″ Incandescent Shade

Shade Height: 8″ | Shade Diameter: 14″ | Extension: 25.5″

For use with one 150 Watt maximum incandescent bulb (bulb not included).
23/16-1862 16″ Incandescent Shade

Shade Height: 9″ | Shade Diameter: 16″ | Extension: 26.5″

For use with one 200 Watt maximum incandescent bulb (bulb not included).
23/16-1862 LED12 16″ LED12 Shade

Shade Height: 9″ | Shade Diameter: 16″ | Extension: 26.5″

Includes integrated 12 Watt LED with a 3,000K or 4,000K color temperature, 800 Lumen output and 50,000-hour bulb life.
23/16-1862 LED22 16″ LED22 Shade

Shade Height: 9″ | Shade Diameter: 16″ | Extension: 26.5″

Includes integrated 22 Watt LED with a 3,000K or 4,000K color temperature, 1,800 Lumen output and 50,000-hour bulb life.
23/19-1862 19″ Shade

Shade Height: 11″ | Shade Diameter: 19″ | Extension: 28″

For use with one 200 Watt maximum incandescent bulb (bulb not included).
23/16-1862 TST 16″ Incandescent Shade Turtle Light

Shade Height: 9″ | Shade Diameter: 16″ | Extension: 26.5″

For use with one 200 Watt maximum incandescent bulb (bulb not included).
23/16-1862 LED12 TST 16″ LED12 Shade Turtle Light

Shade Height: 9″ | Shade Diameter: 16″ | Extension: 26.5″

Includes integrated 12 Watt LED with a 3,000K or 4,000K color temperature, 800 Lumen output and 50,000-hour bulb life.
23/16-1862 LED22 TST 16″ LED22 Shade Turtle Light

Shade Height: 9″ | Shade Diameter: 16″ | Extension: 26.5″

Includes integrated 22 Watt LED with a 3,000K or 4,000K color temperature, 1,800 Lumen output and 50,000-hour bulb life.

Cut Sheet

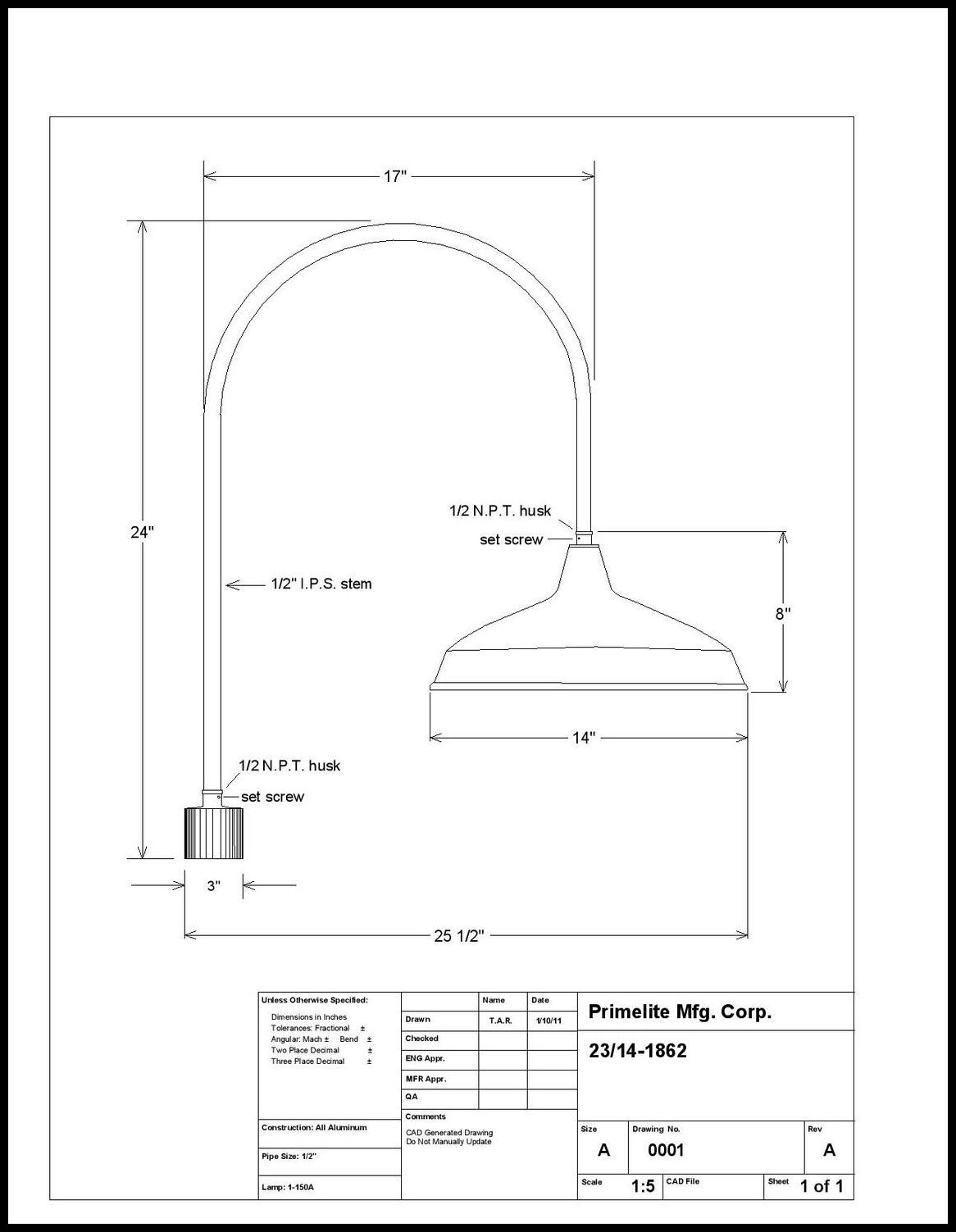

#23/14-1862 – Technical Drawing

#23/16-1862 – Technical Drawing

#23/19-1862 – Technical Drawing

Color Options

Primelite in Color!
Primelite offers a wide selection of colors, 29 dazzling colors! From red, blue, yellow, orange, to our painted metallic finishes; chrome, galvanized, soft nickel and more. All available at no additional cost, except for Verdi Green Rub. Primelite will also work with you when a custom color is needed. Send us a paint chip or a pantone color, and Primelite will deliver the perfect fixture, color and finish!
Colors (powder coated): White, Matte White, Almond, Gray, Black, Black Gloss, Yellow, Orange, Red, Burgundy, Pink, Light Blue, Dark Blue, Navy Blue, Turquoise, Green, Hunter Green, Verdi Green, Soft Nickle, Aluminum, Chrome, Gold, Antique Brass, Copper, Galvanized, Bronze, Bronze Tone, Brown and Verdi Green Rub.
