Emblem Pendant on Ceiling Mount Stem

Name: Emblem Pendant on Ceiling Mount Stem
SKU: 19/18

Emblem all-aluminum shade head for exterior installation on an 18″ long 7/8″ diameter ceiling mount stem. UL Listed.

Catalog # 19/18

Lamp Options

Clear

Finishes *

Product price
Additional options total:
Order total:

*Lamp Options

Reset options
*LED Color Temperature

Request a Quote

Categories: Shade Pendants, Stem Pendant

Description

Catalog # 19/18 | #19/16-18

Dimensions: Multiple sizes available. See Lamp Options for details.

Construction: Aluminum

Finishes: Choice of 29 powder-coated color options. Custom finish upon request.

Lamps: Incandescent | LED

Description: Emblem all-aluminum shade head for exterior installation on an 18″ long 7/8″ diameter ceiling mount stem. UL Listed.

Custom Options Available! Contact Us for a Quote

Lamp Options

19/18	Medium Incandescent Shade Diameter: 12″ \| Height: 14″ Includes a high-temperature porcelain socket for use with one 300 Watt maximum incandescent bulb (bulb not included).
19/18 LED12	Medium LED12 Shade Diameter: 12″ \| Height: 14″ Includes integrated 12 Watt LED with a 50,000 hour life and 800 Lumen output.
19/18 LED22	Medium LED22 Shade Diameter: 12″ \| Height: 14″ Includes integrated 22 Watt LED with a 50,000 hour life and 1,800 Lumen output.
19/16-18	Large Incandescent Shade Diameter: 16″ \| Height: 15″ Includes a high-temperature porcelain socket for use with one 300 Watt maximum incandescent bulb (bulb not included).
19/16-18 LED12	Large LED12 Shade Diameter: 16″ \| Height: 15″ Includes integrated 12 Watt LED with a 50,000 hour life and 800 Lumen output.
19/16-18 LED22	Large LED22 Shade Diameter: 16″ \| Height: 15″ Includes integrated 22 Watt LED with a 50,000 hour life and 1,800 Lumen output.

Cut Sheet

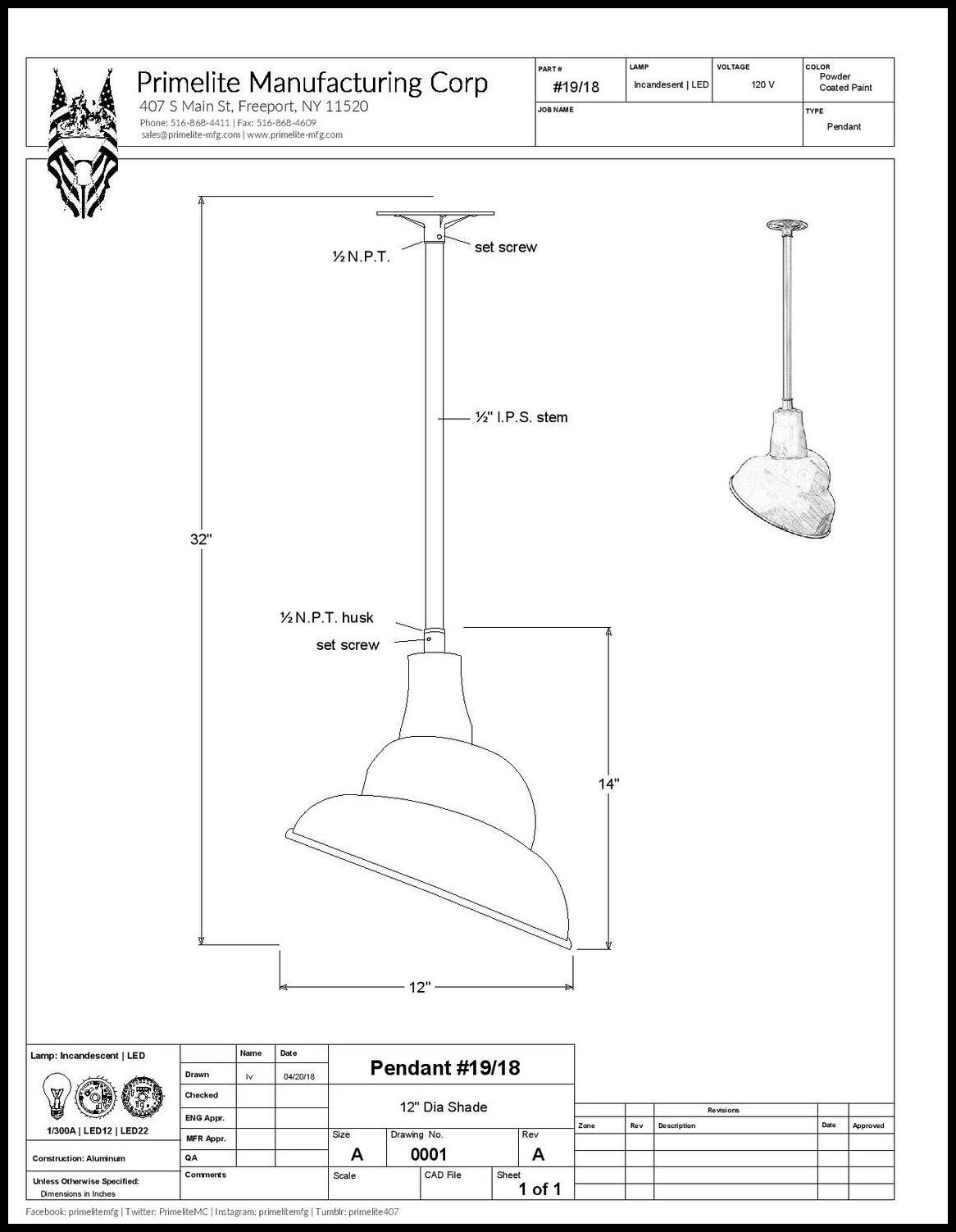

#19/18 – Technical Drawing

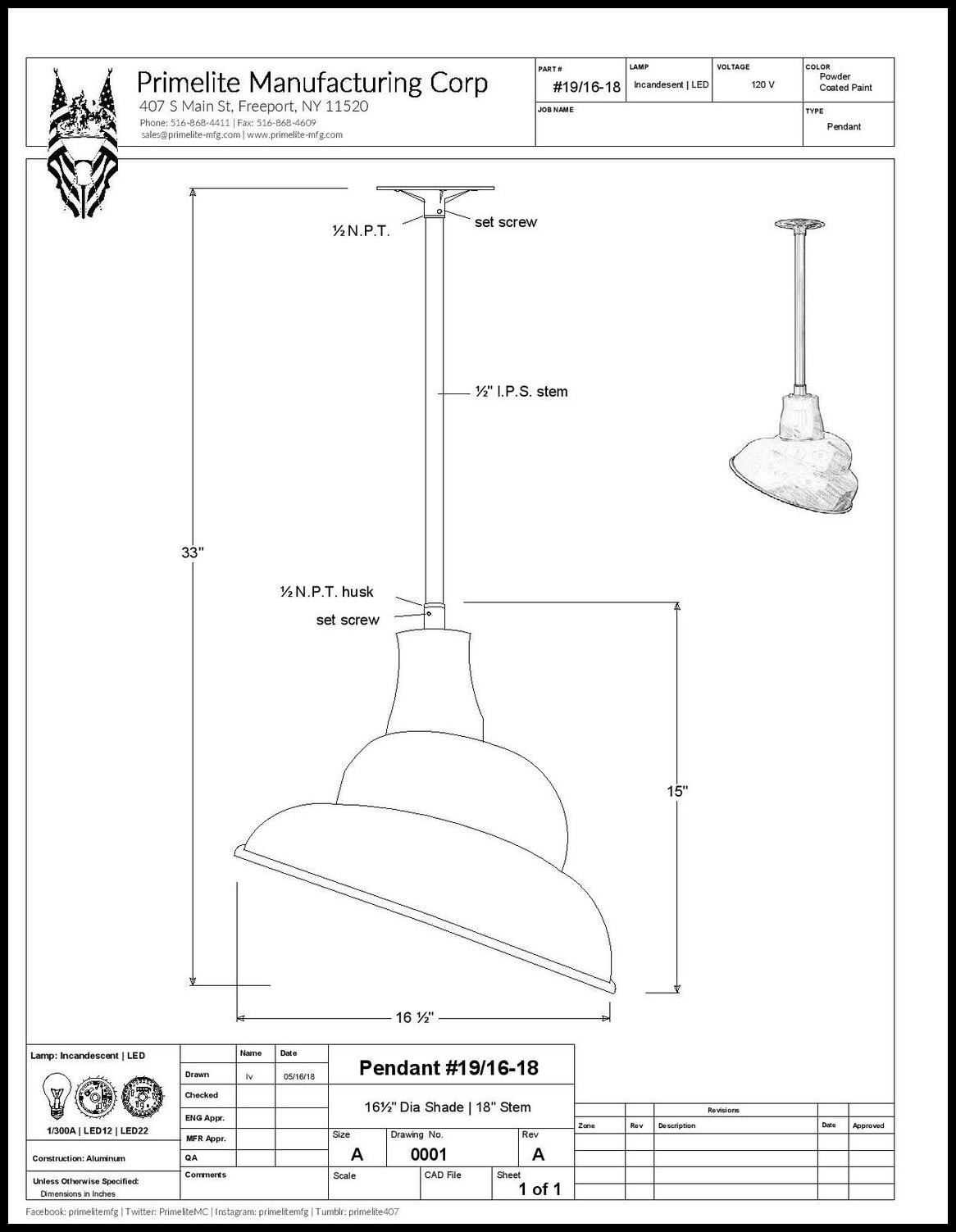

#19/16-18 – Technical Drawing

Color Options

Primelite in Color!

Primelite offers a wide selection of colors, 29 dazzling colors! From red, blue, yellow, orange, to our painted metallic finishes; chrome, galvanized, soft nickel and more. All available at no additional cost, except for Verdi Green Rub. Primelite will also work with you when a custom color is needed. Send us a paint chip or a pantone color, and Primelite will deliver the perfect fixture, color and finish!

Colors (powder coated): White, Matte White, Almond, Gray, Black, Black Gloss, Yellow, Orange, Red, Burgundy, Pink, Light Blue, Dark Blue, Navy Blue, Turquoise, Green, Hunter Green, Verdi Green, Soft Nickel, Aluminum, Chrome, Gold, Antique Brass, Copper, Galvanized, Bronze, Bronze Tone, Brown and Verdi Green Rub.
