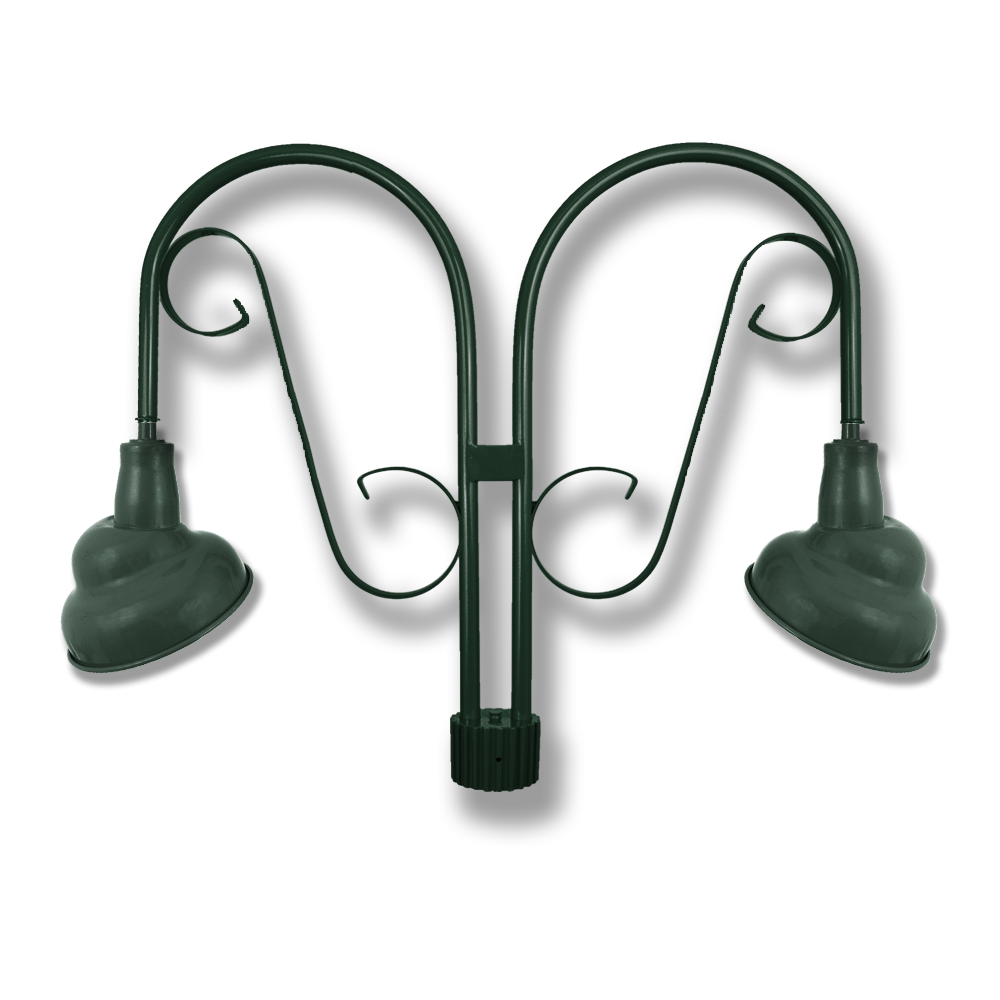

Emblem Shades on Medium Decorative Double J Arm Post Mount

Two emblem all-aluminum shades for exterior installation on double medium J-shaped 1/2″ IPS schedule-40 aluminum mount arm with a decorative scroll attached to a mount fitted for 3″ diameter posts. UL Listed.

Catalog # 19/1864 SCA

Product price
Additional options total:
Order total:

Finishes *

*LED Color Temperature

Request a Quote

Categories: Barn Gooseneck & Sign Lighting, Post Sign Lights

Description

Catalog # 19/1864 SCA

Dimensions: Arm Height: 26.25″ | Shade Diameter: 12″ | Shade Height: 14″ | Total Extension: 42″

Construction: Aluminum

Finishes: Choice of 29 powder-coated color options. Custom finish upon request.

Lamps: Incandescent

Description: Two emblem all-aluminum shades for exterior installation on double medium J-shaped 1/2″ IPS schedule-40 aluminum mount arm with a decorative scroll attached to a mount fitted for 3″ diameter posts. UL Listed.

Custom Options Available! Contact Us for a Quote

Cut Sheet

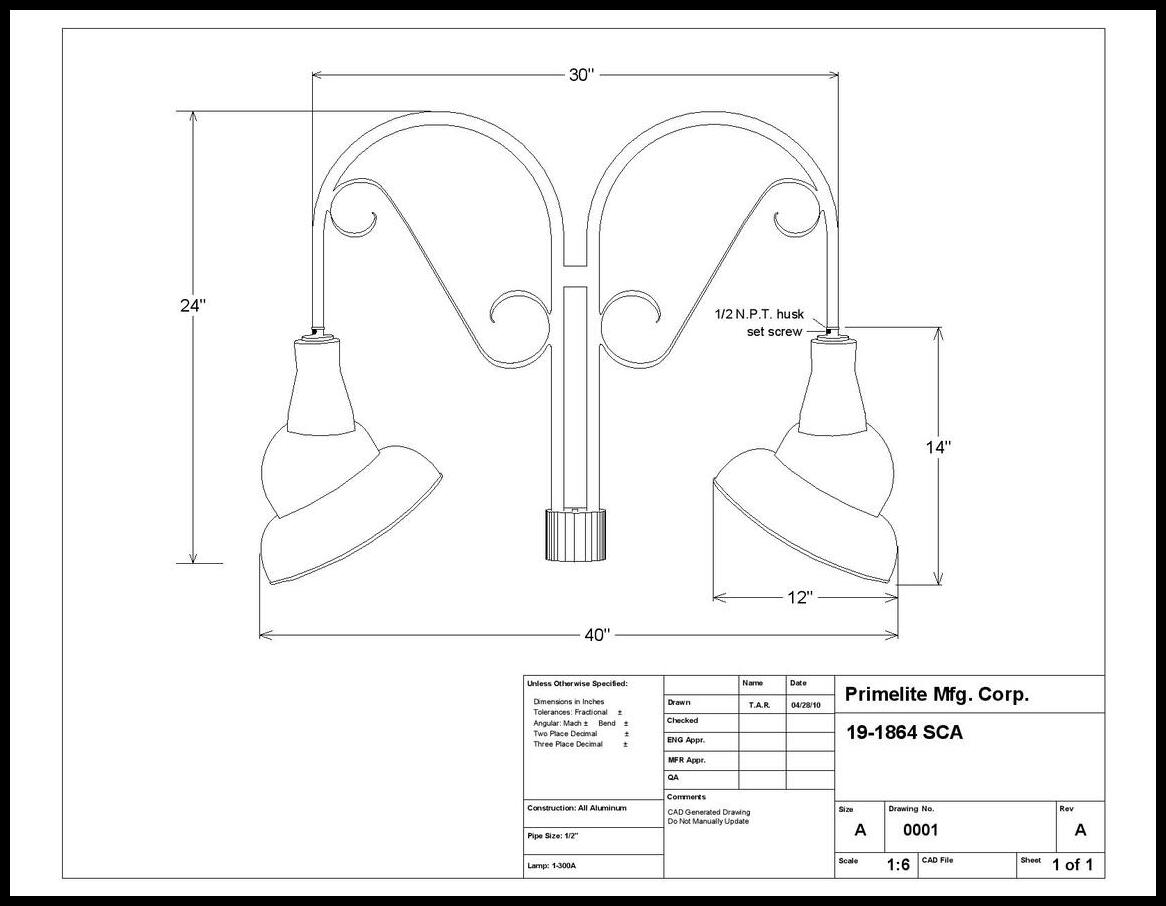

#19/1864 SCA – Technical Drawing

Color Options

Primelite in Color!

Primelite offers a wide selection of colors, 29 dazzling colors! From red, blue, yellow, orange, to our painted metallic finishes; chrome, galvanized, soft nickel and more. All available at no additional cost, except for Verdi Green Rub. Primelite will also work with you when a custom color is needed. Send us a paint chip or a pantone color, and Primelite will deliver the perfect fixture, color and finish!

Colors (powder coated): White, Matte White, Almond, Gray, Black, Black Gloss, Yellow, Orange, Red, Burgundy, Pink, Light Blue, Dark Blue, Navy Blue, Turquoise, Green, Hunter Green, Verdi Green, Soft Nickel, Aluminum, Chrome, Gold, Antique Brass, Copper, Galvanized, Bronze, Bronze Tone, Brown and Verdi Green Rub.
