Shepherd Hook Post Mount
Shepherd Hook Post Mount - Image 2

Shepherd Hook Post Mount

Shepherd hook 1/2″ IPS schedule 40 aluminum arm attached to a mount fitted for 3″ diameter posts.

Catalog # 1867
Product price
Additional options total:
Order total:

Request a Quote
Categories: , ,

Description

Catalog # 1867

Dimensions: Width: 13.75″ | Height: 34.5″| Drop: 10″ | Pipe Diameter: 7/8″

Construction: Aluminum

Finishes: Choice of 29 powder-coated color options. Custom finish upon request.

Description: Shepherd hook 1/2″ IPS schedule 40 aluminum arm attached to a mount fitted for 3″ diameter posts.

Cut Sheet

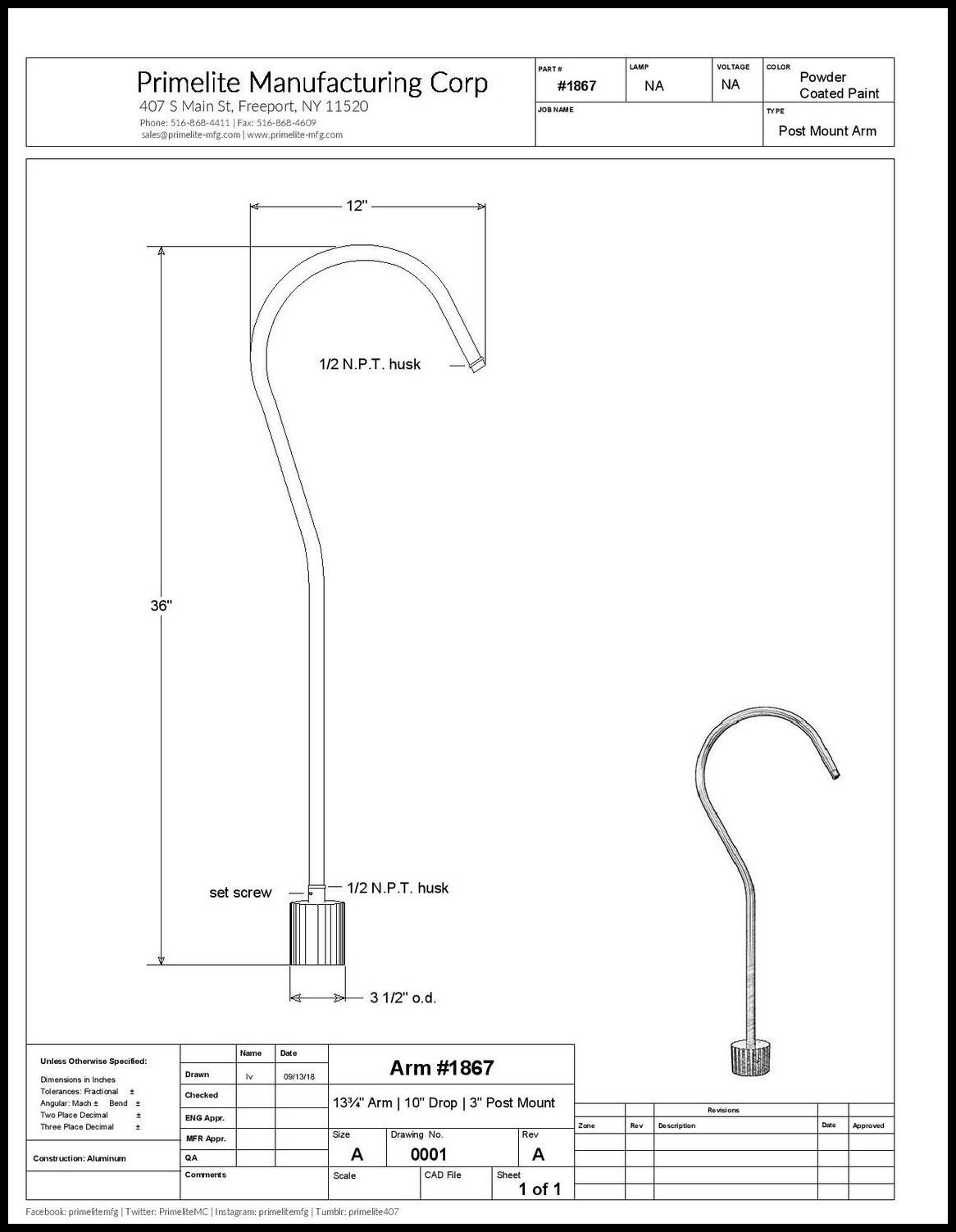

#1867 – Technical Drawing

Color Options

Primelite in Color!

Primelite offers a wide selection of colors, 29 dazzling colors! From red, blue, yellow, orange, to our painted metallic finishes; chrome, galvanized, soft nickel and more. All available at no additional cost, except for Verdi Green Rub. Primelite will also work with you when a custom color is needed. Send us a paint chip or a pantone color, and Primelite will deliver the perfect fixture, color and finish!

Colors (powder coated): White, Matte White, Almond, Gray, Black, Black Gloss, Yellow, Orange, Red, Burgundy, Pink, Light Blue, Dark Blue, Navy Blue, Turquoise, Green, Hunter Green, Verdi Green, Soft Nickel, Aluminum, Chrome, Gold, Antique Brass, Copper, Galvanized, Bronze, Bronze Tone, Brown and Verdi Green Rub.
