Prismatic Dome J-Arm Wall Bracket w/ Bars

Open bottom prismatic acrylic dome with bars on a J-arm and 4″ x 6″ canopy wall bracket. UL Listed.

Catalog # 162

Product price
Additional options total:
Order total:
Request a Quote

Description

Catalog # 162/1124 | 162/1164 | 162/1224

Dimensions: Multiple Sizes Available. See Lamp Options for Details.

Construction: Aluminum | Acrylic

Finishes: Choice of 29 powder-coated color options. Custom finish upon request.

Lamps: Incandescent | HID

Description: Open bottom prismatic acrylic dome with bars on a J-arm and 4″ x 6″ canopy wall bracket. UL Listed.

Custom Options Available! Contact Us for a Quote

Lamp Options

162/1124 12″ Acrylic Dome

Diameter: 12″ | Height: 22″ | Extension: 20″

For use with one 150 Watt incandescent or 100 Watt HID maximum bulb (bulb not included).

162/1164 16″ Acrylic Dome

Diameter: 16″ | Height: 27.5″ | Extension: 23″

For use with one 400 Watt incandescent or 250 Watt HID maximum bulb (bulb not included).

162/1224 22″ Acrylic Dome

Diameter: 22″ | Height: 30″ | Extension: 27″

For use with one 1,000 Watt incandescent or 250 Watt HID maximum bulb (bulb not included).

Cut Sheet

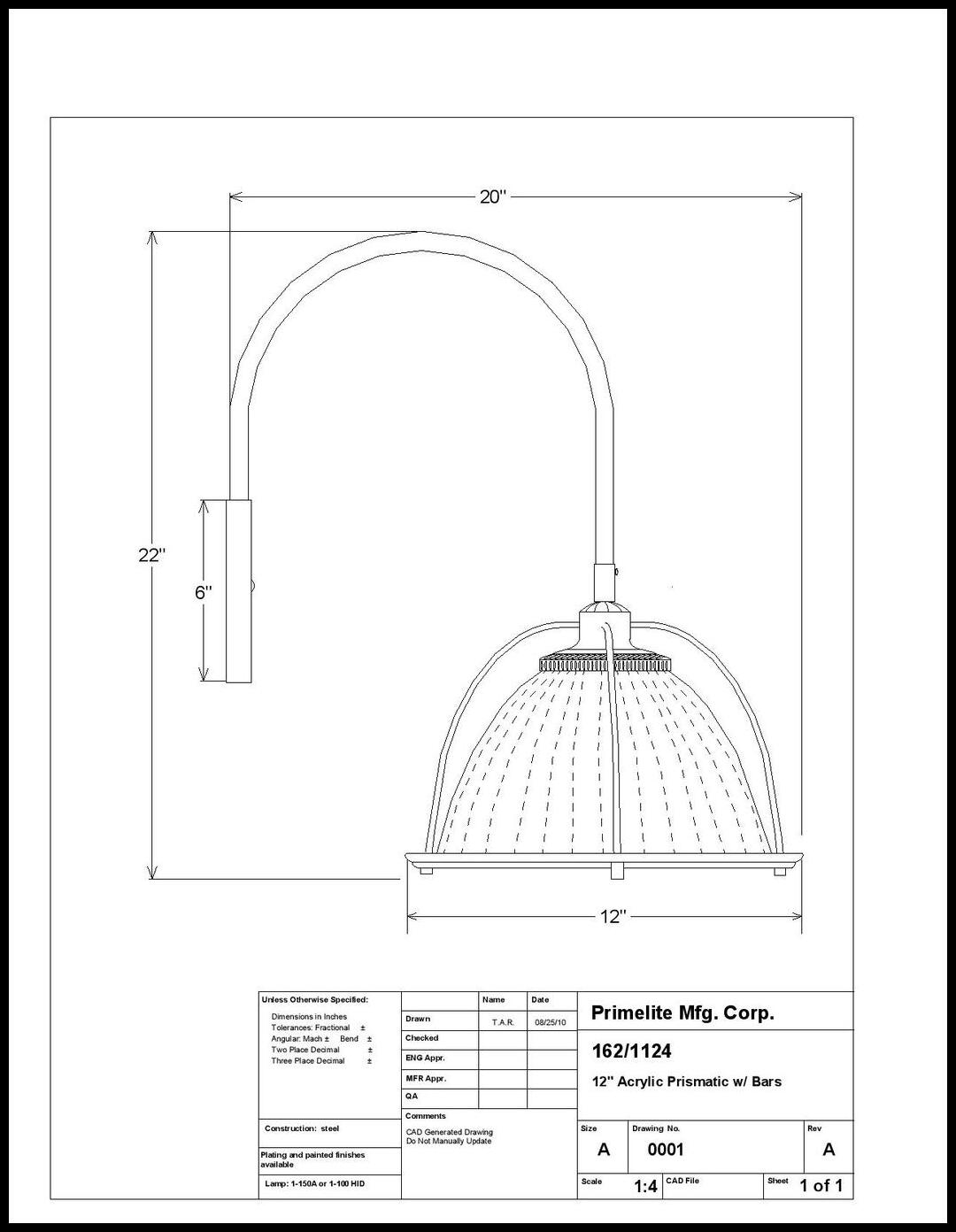

# 162/1124 Technical Drawing

# 162/1164 Technical Drawing

# 162/1224Technical Drawing

Color Options

Primelite in Color!
Primelite offers a wide selection of colors, 29 dazzling colors! From red, blue, yellow, orange, to our painted metallic finishes; chrome, galvanized, soft nickel and more. All available at no additional cost, except for Verdi Green Rub. Primelite will also work with you when a custom color is needed. Send us a paint chip or a pantone color, and Primelite will deliver the perfect fixture, color and finish!
Colors (powder coated): White, Matte White, Almond, Gray, Black, Black Gloss, Yellow, Orange, Red, Burgundy, Pink, Light Blue, Dark Blue, Navy Blue, Turquoise, Green, Hunter Green, Verdi Green, Soft Nickle, Aluminum, Chrome, Gold, Antique Brass, Copper, Galvanized, Bronze, Bronze Tone, Brown and Verdi Green Rub.
