16″ Radial Wave Shade on Double “J” Post Mount

Radial wave shade for outdoor installation on double J-shaped arms attached to a mount fitted for 3″ diameter posts.

Catalog # 30/16-1865

Product price
Additional options total:
Order total:
    Reset options
Request a Quote
Categories: ,

Description

Catalog # 30/16-1865

Dimensions: Arm Width: 28″ | Arm Height: 24″ | Extension: 44″ | Shade Diameter: 16″ | Shade Height: 7″

Construction: Aluminum

Finishes: Choice of 29 powder-coated color options. Custom finish upon request.

Lamps: Incandescent | LED

Description: Radial wave shade for outdoor installation on double J-shaped arms attached to a mount fitted for 3″ diameter posts.

Custom Options Available! Contact Us for a Quote

Product Detail

30/16-1865 Incandescent Shade

For use with two 150 Watt maximum incandescent bulbs (bulbs not included) for a total of 300 Watts.
30/16-1865 LED24 LED24 Shade

Includes two integrated 12 Watt LED chips for a total of 24 Watts. Available in 3,000K or 4,000K color temperature, 1,800 Lumen output and 50,000-hour bulb life.
30/16-1865 LED44 LED44 Shade

Includes two integrated 22 Watt LED chips for a total of 44 Watts. Available in 3,000K or 4,000K color temperature and 50,000-hour bulb life.

Cut Sheet

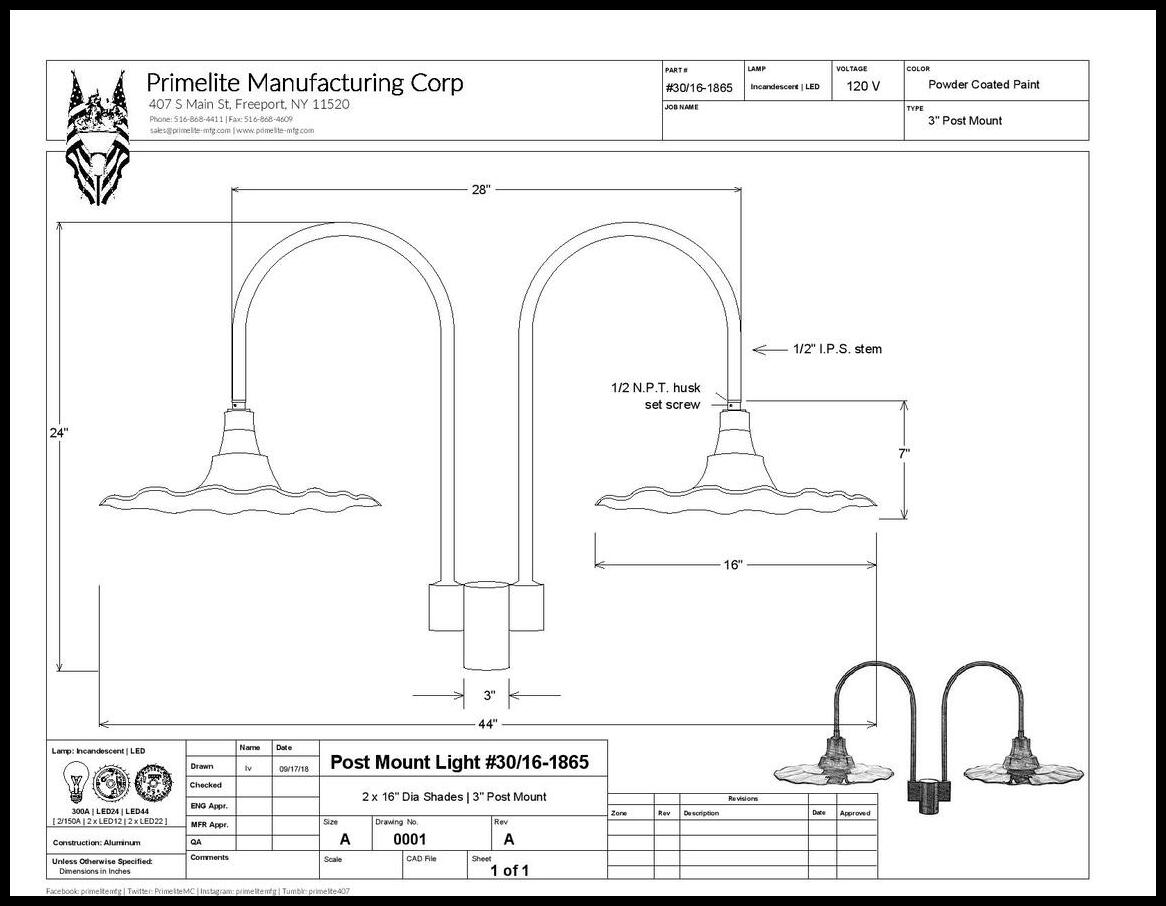

#30/16-1865 – Technical Drawing

Color Options

Primelite in Color!

Primelite offers a wide selection of colors, 29 dazzling colors! From red, blue, yellow, orange, to our painted metallic finishes; chrome, galvanized, soft nickel and more. All available at no additional cost, except for Verdi Green Rub. Primelite will also work with you when a custom color is needed. Send us a paint chip or a pantone color, and Primelite will deliver the perfect fixture, color and finish!

Colors (powder coated): White, Matte White, Almond, Gray, Black, Black Gloss, Yellow, Orange, Red, Burgundy, Pink, Light Blue, Dark Blue, Navy Blue, Turquoise, Green, Hunter Green, Verdi Green, Soft Nickel, Aluminum, Chrome, Gold, Antique Brass, Copper, Galvanized, Bronze, Bronze Tone, Brown and Verdi Green Rub.
