4 Panel Cast Lantern Post Light

Medium cast aluminum lantern designed to fit on round lamp posts with a 3″ diameter.

Catalog # 1322

Product price
Additional options total:
Order total:
    Reset options
Request a Quote

Description

Catalog # 1322

Size: Lantern Height: 20″ | Width: 12″ | 3″ Diameter Post Connector

Construction: Cast Aluminum

Finishes: Choice of Smoke (-1), White (-3), Clear (-4), or Frosted (-5) Acrylic Lens. Choice of 29 powder-coated color options. Custom finish upon request.

Lamps: Incandescent | LED

Description: Medium cast aluminum lantern designed to fit on round lamp posts with a 3″ diameter.

Ideal for illuminating and accentuating any outdoor area, our Post Lantern # 1322 is available with a standard E26 lightbulb socket as well as in LED12, LED22, LED40, LED68 and LED100 configurations.

Custom Options Available! Contact Us for a Quote

Lamp Options

This cast wall bracket lantern is available in the following lamp configurations:

1322 Designed for use with an E26 incandescent lightbulb of up to 300 Watts (bulb not included).
1322 LED12 Includes an integrated 12 Watt LED chip with a 50,000-hour bulb life. Choose between 3000K warm light or 4000K bright light.

1,100 Lumen output.

1322 LED22 Includes an integrated 22 Watt LED chip with a 50,000-hour bulb life. Choose between 3000K warm light or 4000K bright light.

2,000 Lumen output.

1322 LED40 Includes four integrated 10 Watt LED chip with a 50,000-hour bulb life. Choose between 3000K warm light or 4000K bright light.

6,600 Lumen output.

1322 LED68 Includes four integrated 17 Watt LED chips for a total of 68 Watts with a 50,000-hour bulb life. Choose between 3000K warm light or 4000K bright light.

12,000 Lumen output.

1322 LED100 Includes four integrated 25 Watt LED chips for a total of 100 Watts with a 50,000-hour bulb life. Choose between 3000K warm light or 4000K bright light.

16,200 Lumen output.

Cut Sheet

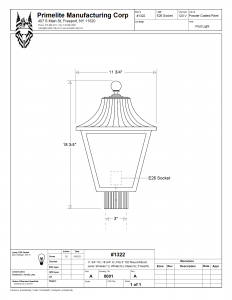

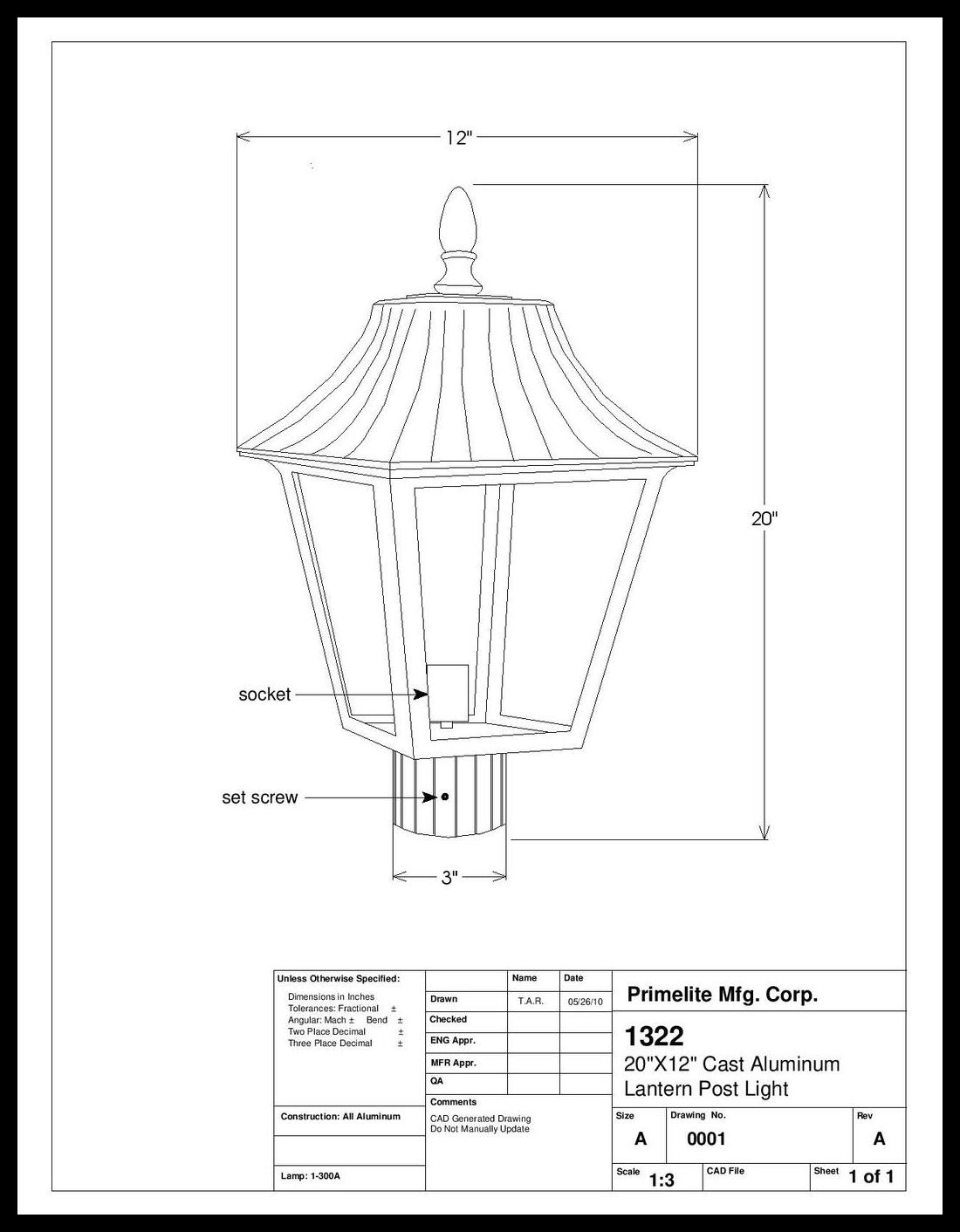

#1322 – Technical Drawing

#1322 LED 12 – Technical Drawing

#1322 LED 22 – Technical Drawing

#1322 LED 40 – Technical Drawing

#1322 LED 68 – Technical Drawing

#1322 LED 100 – Technical Drawing

Color Options

Primelite in Color!
Primelite offers a wide selection of colors, 29 dazzling colors! From red, blue, yellow, orange, to our painted metallic finishes; chrome, galvanized, soft nickel and more. All available at no additional cost, except for Verdi Green Rub. Primelite will also work with you when a custom color is needed. Send us a paint chip or a pantone color, and Primelite will deliver the perfect fixture, color and finish!
Colors (powder coated): White, Matte White, Almond, Gray, Black, Black Gloss, Yellow, Orange, Red, Burgundy, Pink, Light Blue, Dark Blue, Navy Blue, Turquoise, Green, Hunter Green, Verdi Green, Soft Nickle, Aluminum, Chrome, Gold, Antique Brass, Copper, Galvanized, Bronze, Bronze Tone, Brown and Verdi Green Rub.
