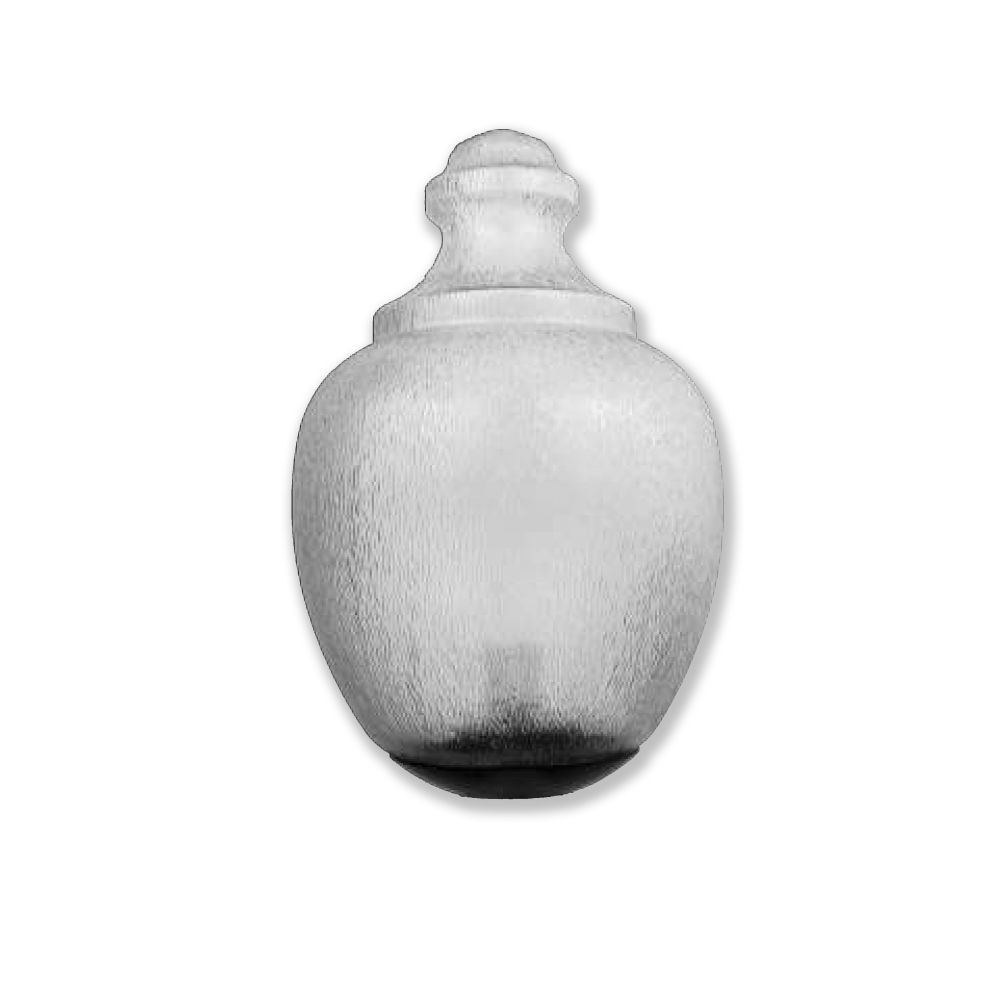

16″ Acorn Street Light

Small 16.4″ white acrylic or clear polycarbonate acorn street light for 3″ diameter posts. UL Listed.

Catalog # 1226

Product price
Additional options total:
Order total:
Request a Quote

Description

 Catalog # 1226/4 | 1226/5

Dimensions:  Height: 16.4″ | Width: 10.75″

Construction: Aluminum &  Acrylic or Polycarbonate

Finishes: Choice of 29 powder-coated color options. Custom finish upon request.

Lamps: Incandescent (150w) | Mogul Base E39 | LED

Description: Small 16.4″ white acrylic or clear polycarbonate acorn street light for 3″ diameter posts. UL Listed.

  • Made in the U.S.A.
  • Aluminum and Acrylic or Polycarbonate Construction
  • Number of Sockets: 1
  • Maximum Wattage per Socket: 150 Incandescent
  • Available in HID and LED
  • Over 25 powder-coated finishes
  • Available as Globe Only
  • UL Listed
  • Mount: Fits over and secures to 3″ round post

Custom Options Available! Contact Us for a Quote

Product Detail

1226/4 White Acrylic Globe

Height: 16.4″ | Width: 10.75″

For use with one 300 Watt maximum incandescent bulb (bulb not included).

1226/4-M White Acrylic Globe

Height: 16.4″ | Width: 10.75″

For use with any E39 base bulb (bulb not included).

1226/4 LED10 White Acrylic Globe

Height: 16.4″ | Width: 10.75″

Includes integrated 10W LED bulb. 1,440 Lumen output (100W incandescent equivalent) and 50,000-hour bulb life.

Available in 3,000K warm white and 4,000K bright white color temperature.

1226/4 LED20 White Acrylic Globe

Height: 16.4″ | Width: 10.75″

Includes integrated LED bulbs with a 20W total output. 2,400 Lumen output (200W incandescent equivalent) and 50,000-hour bulb life.

Available in 3,000K warm white and 4,000K bright white color temperature.

1226/4 LED40 White Acrylic Globe

Height: 16.4″ | Width: 10.75″

Includes 4 integrated LED bulbs for a total of 40W. Dimmable 120V only with 4,560 Lumen output (70W metal halide equivalent) and 50,000-hour bulb life.

Available in 3,000K warm white and 4,000K bright white color temperature.

1226/4 GNO Height: 20″ | Width: 10.75″ | Neck Diameter: 5.25″

Replacement clear polycarbonate acorn street globe. No lamp included.

1226/5 Clear Polycarbonate Globe

Height: 16.4″ | Width: 10.75″

For use with one 300 Watt maximum incandescent bulb (bulb not included).

1226/5-M Clear Polycarbonate Globe

Height: 16.4″ | Width: 10.75″

For use with any E39 base bulb (bulb not included).

1226/5 LED10 Clear Polycarbonate Globe

Height: 16.4″ | Width: 10.75″

Includes integrated 10W LED bulb. 1,440 Lumen output (100W incandescent equivalent) and 50,000-hour bulb life.

Available in 3,000K warm white and 4,000K bright white color temperature.

1226/5 LED20 Clear Polycarbonate Globe

Height: 16.4″ | Width: 10.75″

Includes integrated LED bulbs with a 20W total output. 2,400 Lumen output (200W incandescent equivalent) and 50,000-hour bulb life.

Available in 3,000K warm white and 4,000K bright white color temperature.

1226/5 LED40 Clear Polycarbonate Globe

Height: 16.4″ | Width: 10.75″

Includes 4 integrated LED bulbs for a total of 40W. Dimmable 120V only with 4,560 Lumen output (70W metal halide equivalent) and 50,000-hour bulb life.
Available in 3,000K warm white and 4,000K bright white color temperature.

1226/5 GNO Height: 23″ | Width: 10.75″ | Neck Diameter: 5.25″

Replacement clear polycarbonate acorn street globe. No lamp included.

Cut Sheet

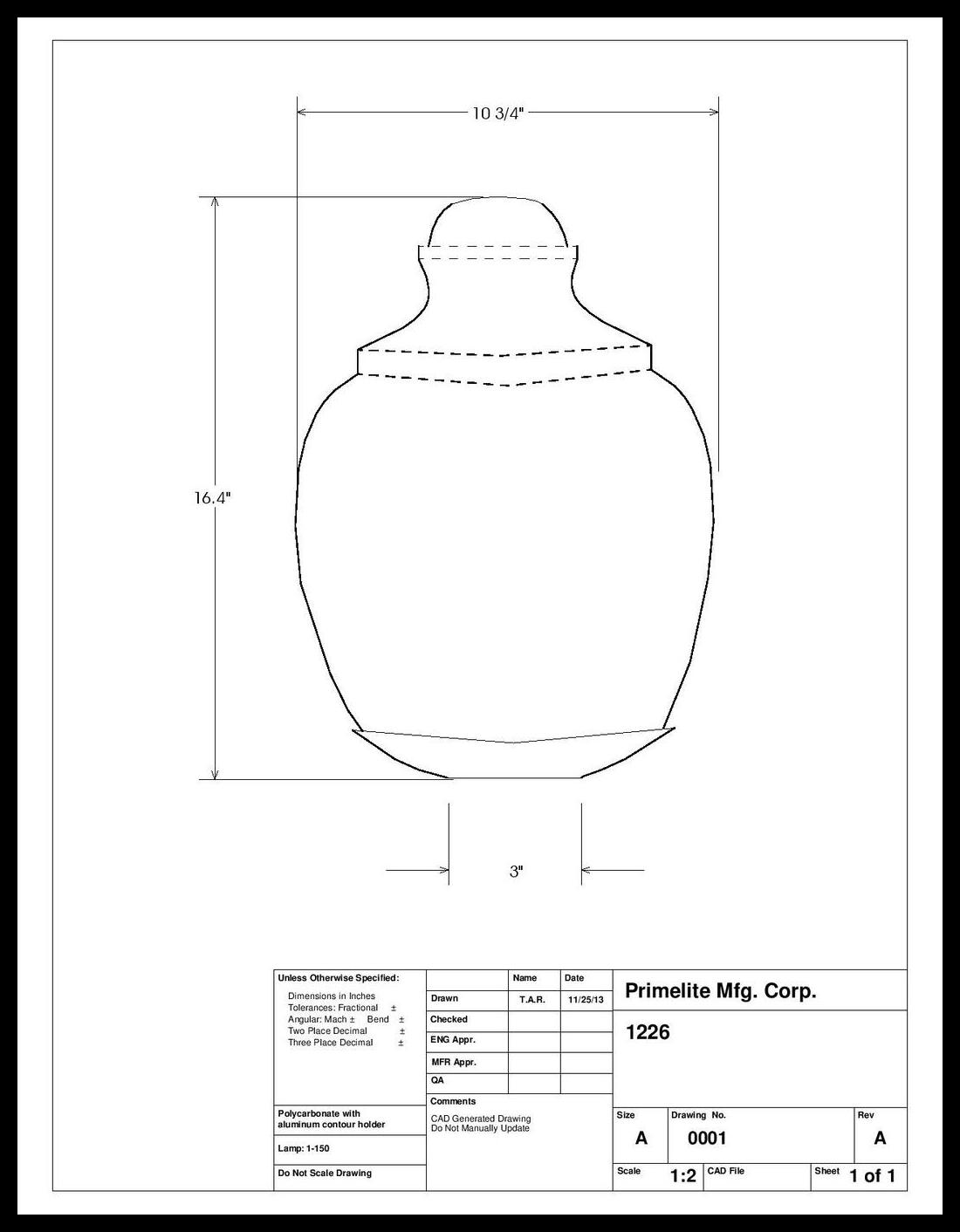

# 1226 – Technical Drawing

# 1226 LED40 Technical Drawing

Color Options

Primelite in Color!
Primelite offers a wide selection of colors, 29 dazzling colors! From red, blue, yellow, orange, to our painted metallic finishes; chrome, galvanized, soft nickel and more. All available at no additional cost, except for Verdi Green Rub. Primelite will also work with you when a custom color is needed. Send us a paint chip or a pantone color, and Primelite will deliver the perfect fixture, color and finish!
Colors (powder coated): White, Matte White, Almond, Gray, Black, Black Gloss, Yellow, Orange, Red, Burgundy, Pink, Light Blue, Dark Blue, Navy Blue, Turquoise, Green, Hunter Green, Verdi Green, Soft Nickle, Aluminum, Chrome, Gold, Antique Brass, Copper, Galvanized, Bronze, Bronze Tone, Brown and Verdi Green Rub.
