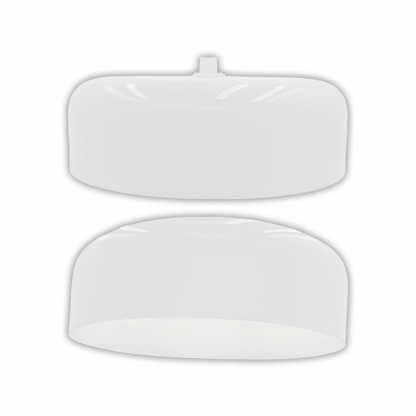

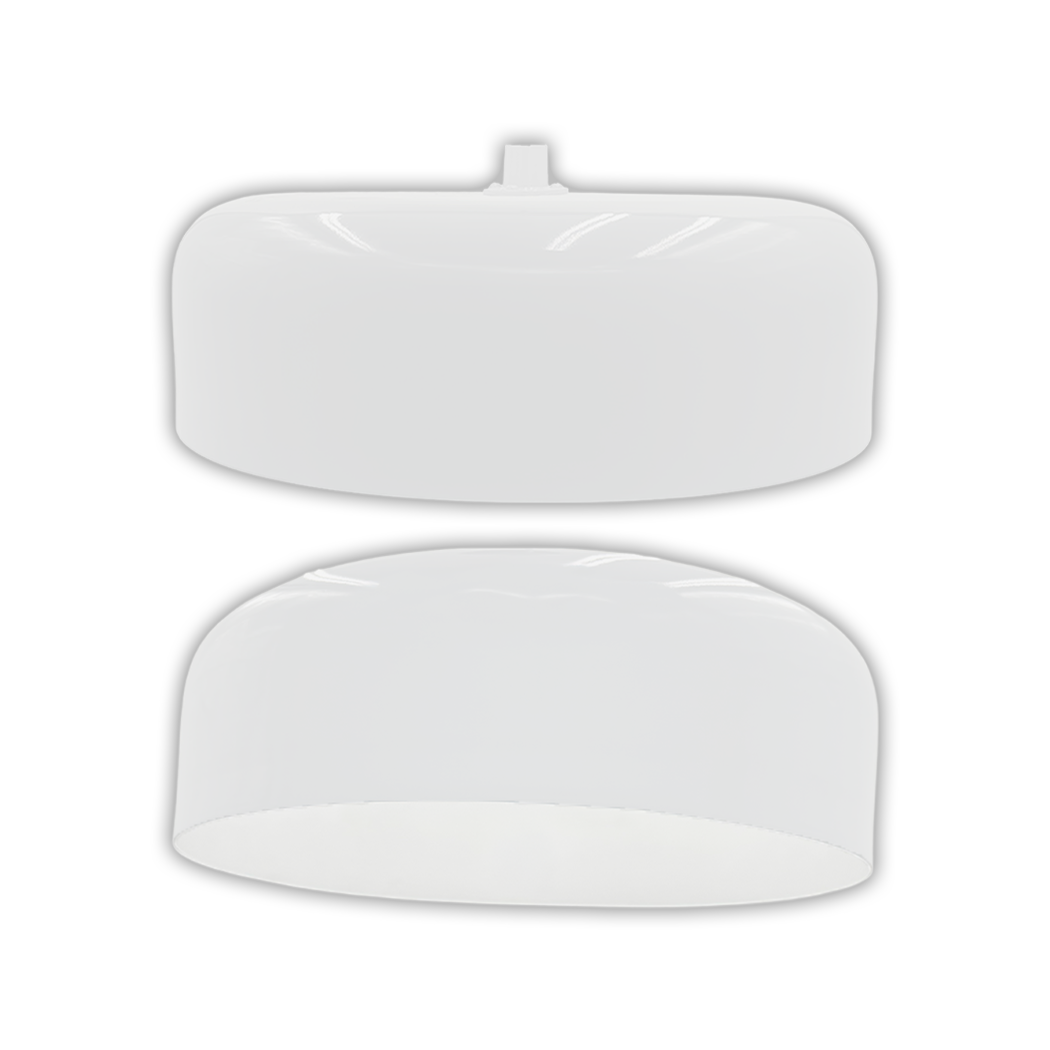

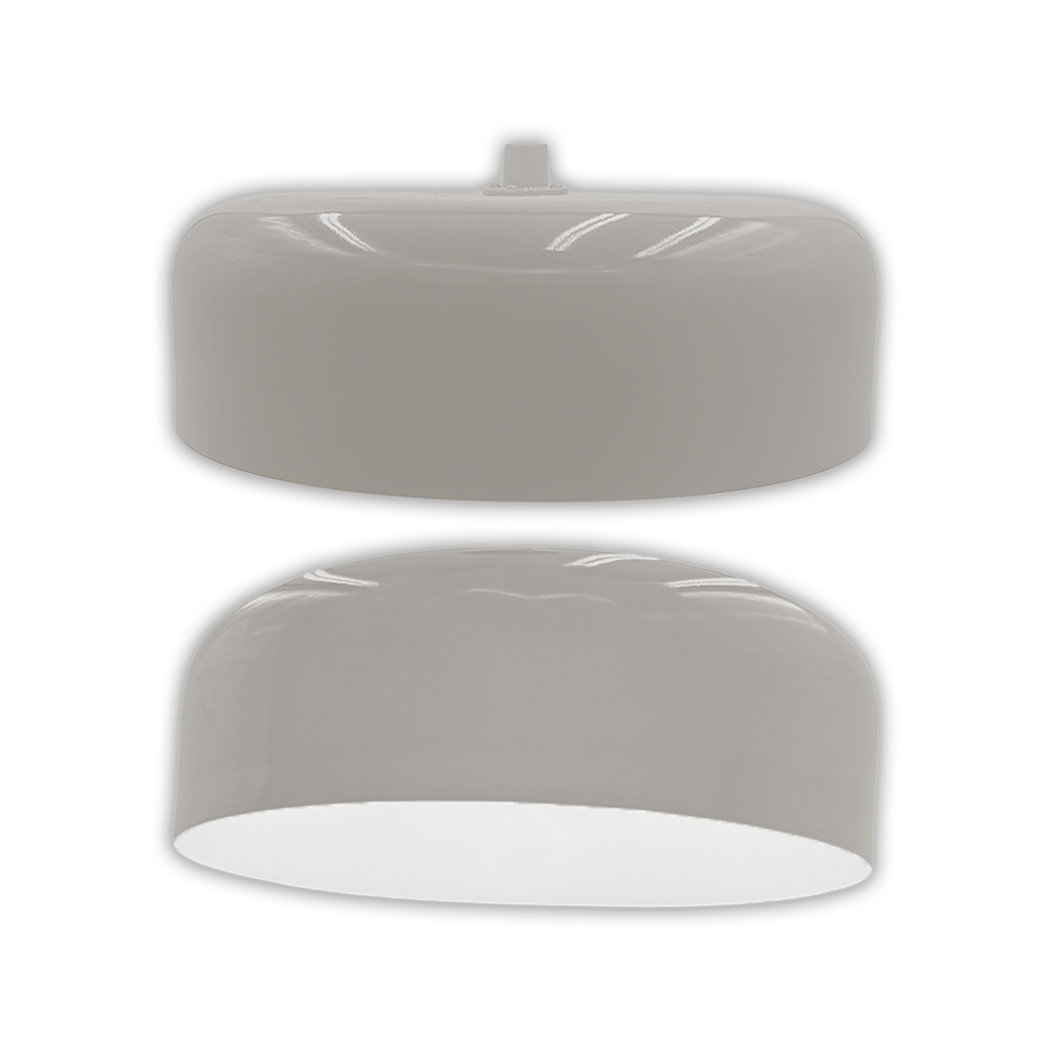

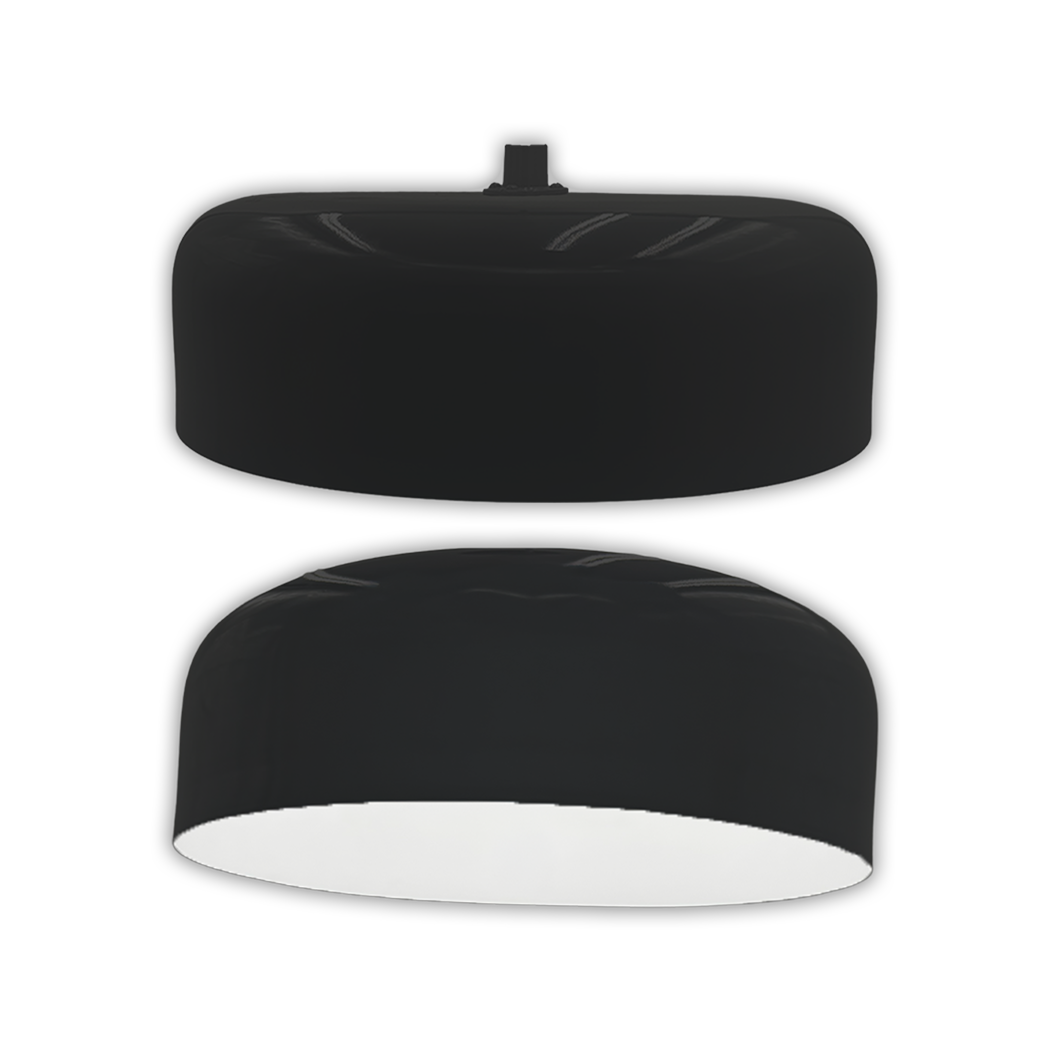

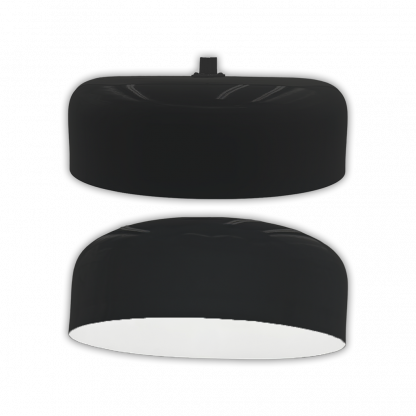

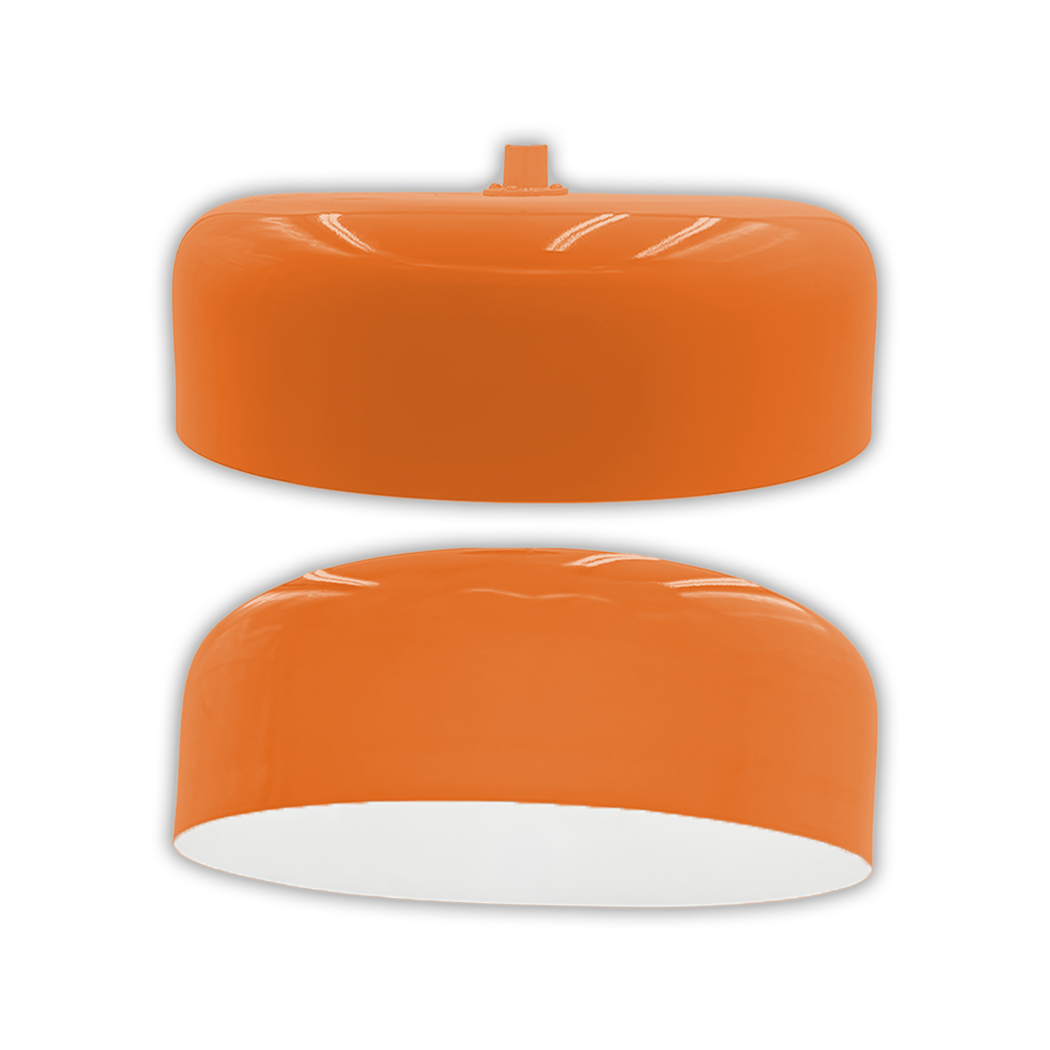

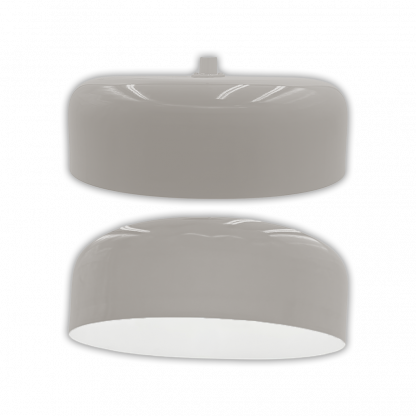

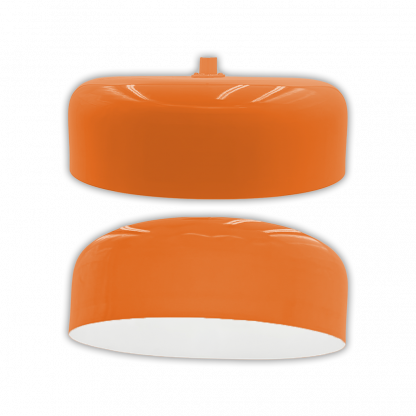

Aluminum Drum Head

Name: Aluminum Drum Head
Brand: Primelite MFG
SKU: 11037 A Series

10″-20″ aluminum drum head for 1/2″ IPS male arms. Compatible with our standard gauge gooseneck wall, parapet, and post arms. UL listed damp location.

Catalog # 11037 A Series

Drum Diameter

Lamp Options

Clear

LED Color Temperature

Please select the LED color temperature.

Finishes *

Product price
Additional options total:
Order total:

Request a Quote

Categories: Hot Off the Press, Shades, Standard Gauge Shades

Description

Catalog #11037 A Series

Drum Dimensions: Multiple sizes available. See the Product Details tab for more details. Fits 1/2″ IPS male threads. 5′ leads included.

Construction: Aluminum drum.

Finish: Choice of 29 powder-coated color options. Custom finishes are available on request.

Lamps: Incandescent. LED options are available. See the Product Details tab for more details.

Also Available: Pendant without white acrylic lens (#11037 Series). Gooseneck head with white acrylic lens (#11038 A Series). Pendant with white acrylic lens (#11038 Series).

Description: 10″-20″ aluminum drum head for 1/2″ IPS male arms. Compatible with our standard-gauge gooseneck wall, parapet, and post arms. UL listed damp location.

Custom Options Available! Contact Us for a Quote

Product Details

Catalog #	Description	Lamp Options
#11037/10A	Overall Dimensions: 10″ diameter \| 5″ height \| 1/2″ IPS female threaded \| 5′ leads	E26 Socket – 60W max; G25 bulb recommended LED 12 (3K or 4K) – 75W Inc equivalent, 120V, electronic dimming LED 22 (3K or 4K) – 125W Inc equivalent, 120V, electronic dimming
#11037/12A	Overall Dimensions: 12″ diameter \| 5″ height \| 1/2″ IPS female threaded \| 5′ leads	E26 Socket – 60W max; G25 bulb recommended LED 12 (3K or 4K) – 75W Inc equivalent, 120V, electronic dimming LED 22 (3K or 4K) – 125W Inc equivalent, 120V, electronic dimming
#11037/14A	Overall Dimensions: 14″ diameter \| 5″ height \| 1/2″ IPS female threaded \| 5′ leads	E26 Socket – 60W max; G25 bulb recommended LED 12 (3K or 4K) – 75W Inc equivalent, 120V, electronic dimming LED 22 (3K or 4K) – 125W Inc equivalent, 120V, electronic dimming LED 48 (3K or 4K) – 60W MH equivalent, 120V, electronic dimming
#11037/16A	Overall Dimensions: 16″ diameter \| 5″ height \| 1/2″ IPS female threaded \| 5′ leads	E26 Socket – 60W max; G25 bulb recommended LED 12 (3K or 4K) – 75W Inc equivalent, 120V, electronic dimming LED 22 (3K or 4K) – 125W Inc equivalent, 120V, electronic dimming LED 48 (3K or 4K) – 60W MH equivalent, 120V, electronic dimming
#11037/18A	Overall Dimensions: 18″ diameter \| 5″ height \| 1/2″ IPS female threaded \| 5′ leads	E26 Socket – 60W max; G25 bulb recommended LED 12 (3K or 4K) – 75W Inc equivalent, 120V, electronic dimming LED 22 (3K or 4K) – 125W Inc equivalent, 120V, electronic dimming LED 48 (3K or 4K) – 60W MH equivalent, 120V, electronic dimming
#11037/20A	Overall Dimensions: 20″ diameter \| 5″ height \| 1/2″ IPS female threaded \| 5′ leads	E26 Socket – 60W max; G25 bulb recommended LED 12 (3K or 4K) – 75W Inc equivalent, 120V, electronic dimming LED 22 (3K or 4K) – 125W Inc equivalent, 120V, electronic dimming LED 48 (3K or 4K) – 60W MH equivalent, 120V, electronic dimming

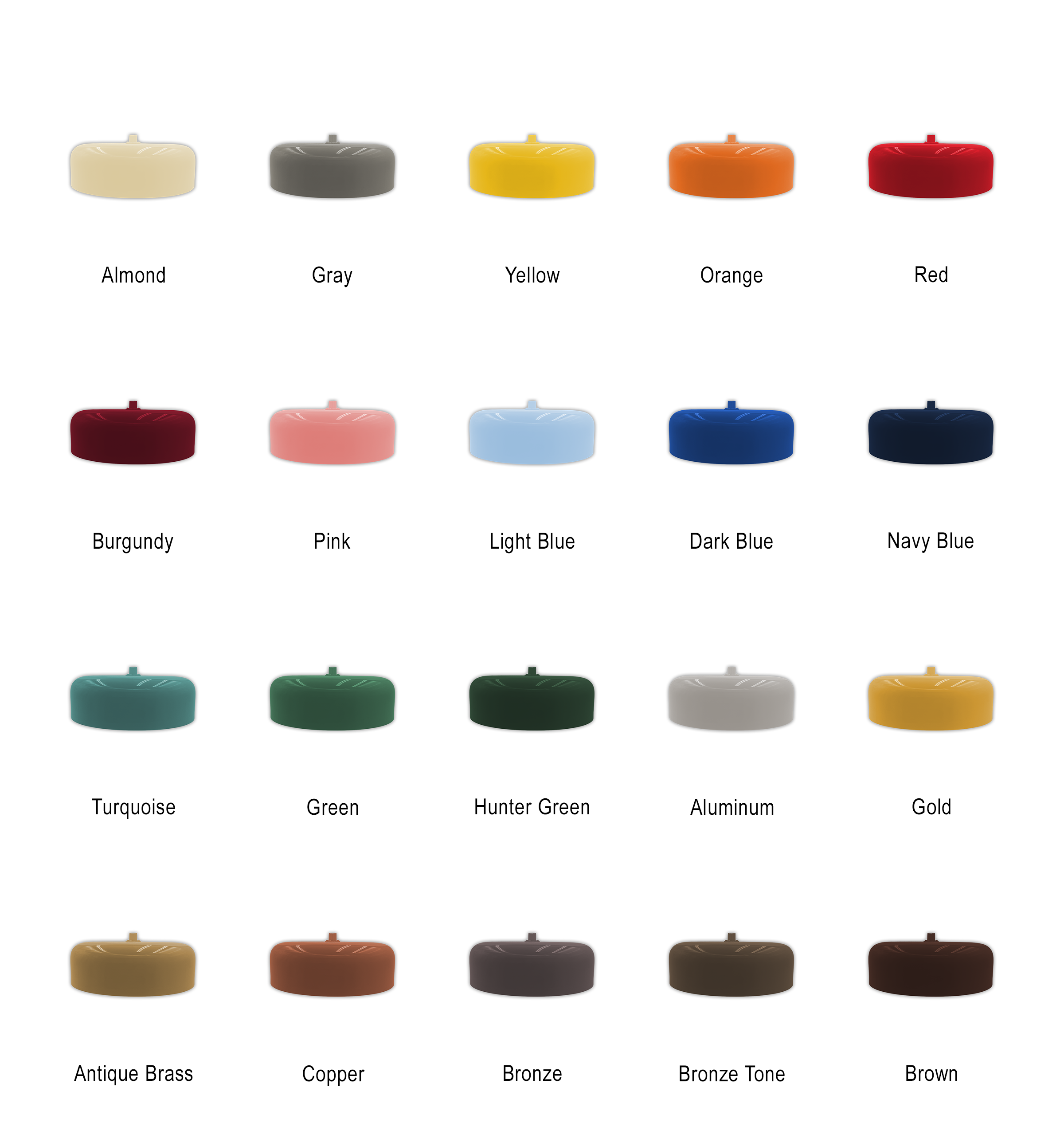

Color Options

Primelite in Color!

Primelite offers a wide selection of colors, 29 dazzling colors! From red, blue, yellow, orange, to our painted metallic finishes; chrome, galvanized, soft nickel and more. All available at no additional cost, except for Verdi Green Rub. Primelite will also work with you when a custom color is needed. Send us a paint chip or a pantone color, and Primelite will deliver the perfect fixture, color and finish!

Colors (powder coated): White, Matte White, Almond, Gray, Black, Black Gloss, Yellow, Orange, Red, Burgundy, Pink, Light Blue, Dark Blue, Navy Blue, Turquoise, Green, Hunter Green, Verdi Green, Soft Nickel, Aluminum, Chrome, Gold, Antique Brass, Copper, Galvanized, Bronze, Bronze Tone, Brown and Verdi Green Rub.
