Description

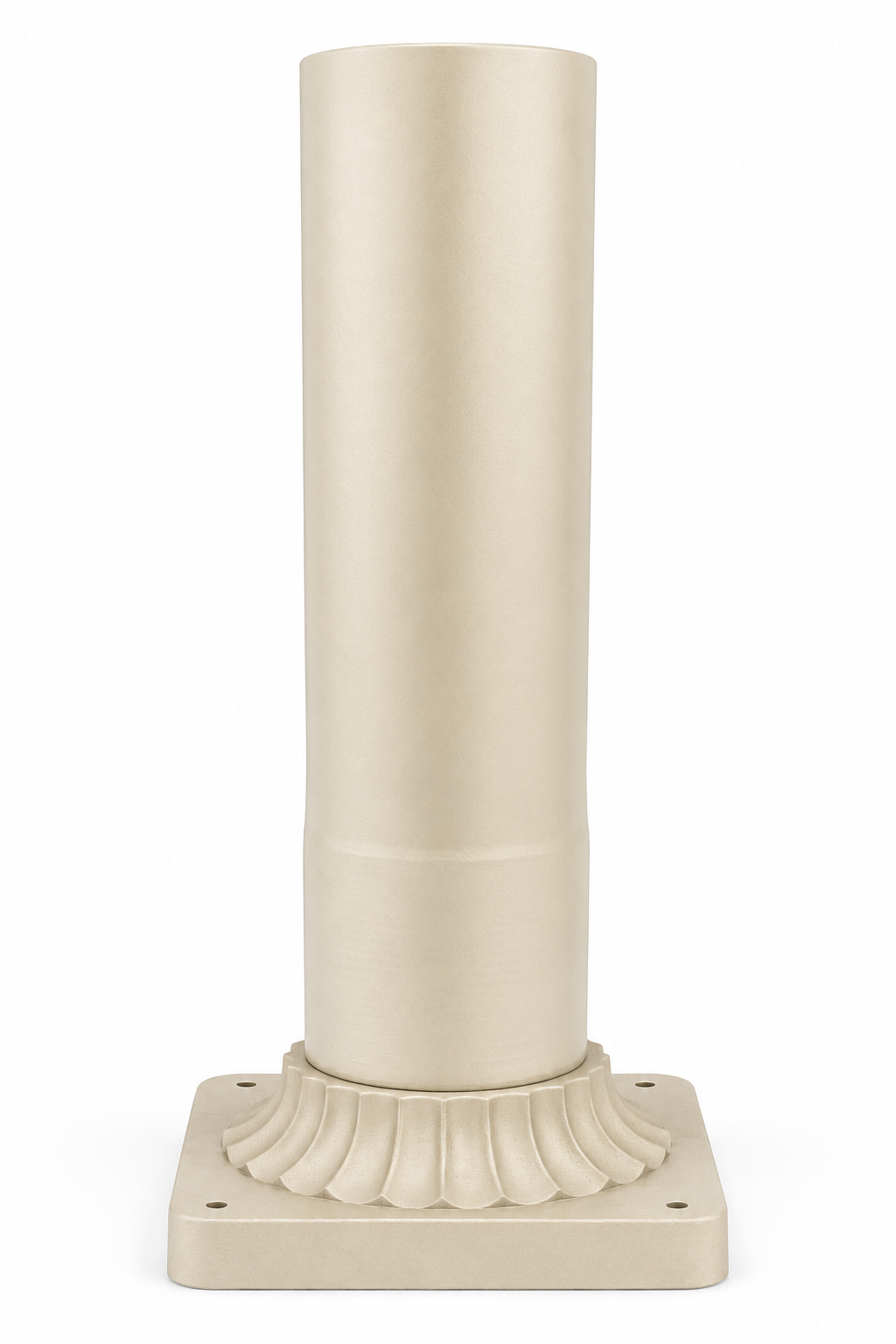

The Primelite Series 10064 Decorative Pier Mount Base provides a clean, architectural mounting solution for exterior post-top lighting installations. Its classic fluted base detail and smooth cylindrical body make it at home in residential, commercial, municipal, and architectural settings alike.
The cast aluminum base mounts to concrete columns, wood surfaces, or other flat mounting areas via four 3/16″ mounting holes on a 4 11/16″ center-to-center spacing (concrete or wood screws not supplied). The extruded aluminum body terminates in a 3″ O.D. tenon at the top, compatible with any post-top fixture, globe, or lantern with a standard 3″ fitter opening.
Key Features
- Cast aluminum base with extruded aluminum body
- 3″ O.D. tenon fits standard 3″ fitter post-top fixtures, globes, and lanterns
- Designed for concrete columns, or flat mounting surfaces
- Available in 12″ and 24″ standard heights — custom heights available on request
- Four 3/16″ mounting holes on 4 11/16″ center-to-center spacing
- Mounting screws not included
- Classic fluted base detail for an architectural appearance
- Available in Primelite’s full range of standard powder-coated finishes
- Need a custom height or color? Contact us
Product Specifications
| Specification | Details |
|---|---|
| Series Number | 10064 |
| Available Models | 10064/12 and 10064/24 |
| Standard Heights | 12″ and 24″ (custom lengths available) |
| Base Material | Cast aluminum |
| Body Material | Extruded aluminum |
| Base Size | 5 3/4″ square |
| Top Tenon O.D. | 3″ (fits standard 3″ fitter fixtures) |
| Mounting Holes | 4 × 3/16″ diameter |
| Hole Spacing | 4 11/16″ center-to-center |
| Fasteners | Concrete or wood screws, not supplied |
| Mounting Surface | Concrete columns, wood, or flat surfaces |
| Finish Options | Primelite standard powder-coated finishes |
