Large J Arm Wall Bracket

Large “J” 1/2″ IPS schedule 40 aluminum mount arm wall bracket on a 6″ x 4″ square cast canopy.

Width: 14.5″ | Height: 36″ | Extension: 14″ | Drop: 12.25″ | Pipe Diameter: 7/8″

Catalog # 862
Product price
Additional options total:
Order total:

Request a Quote
Categories: , ,

Description

Catalog # 862

Dimensions: Width: 14.5″ | Height: 36″ | Extension: 14″ | Drop: 12.25″ | Pipe Diameter: 7/8″

Construction: Aluminum

Finishes: Choice of 29 powder-coated color options. Custom finish upon request.

Description: Large “J” 1/2″ IPS schedule 40 aluminum mount arm wall bracket on a 6″ x 4″ square cast canopy.

Cut Sheet

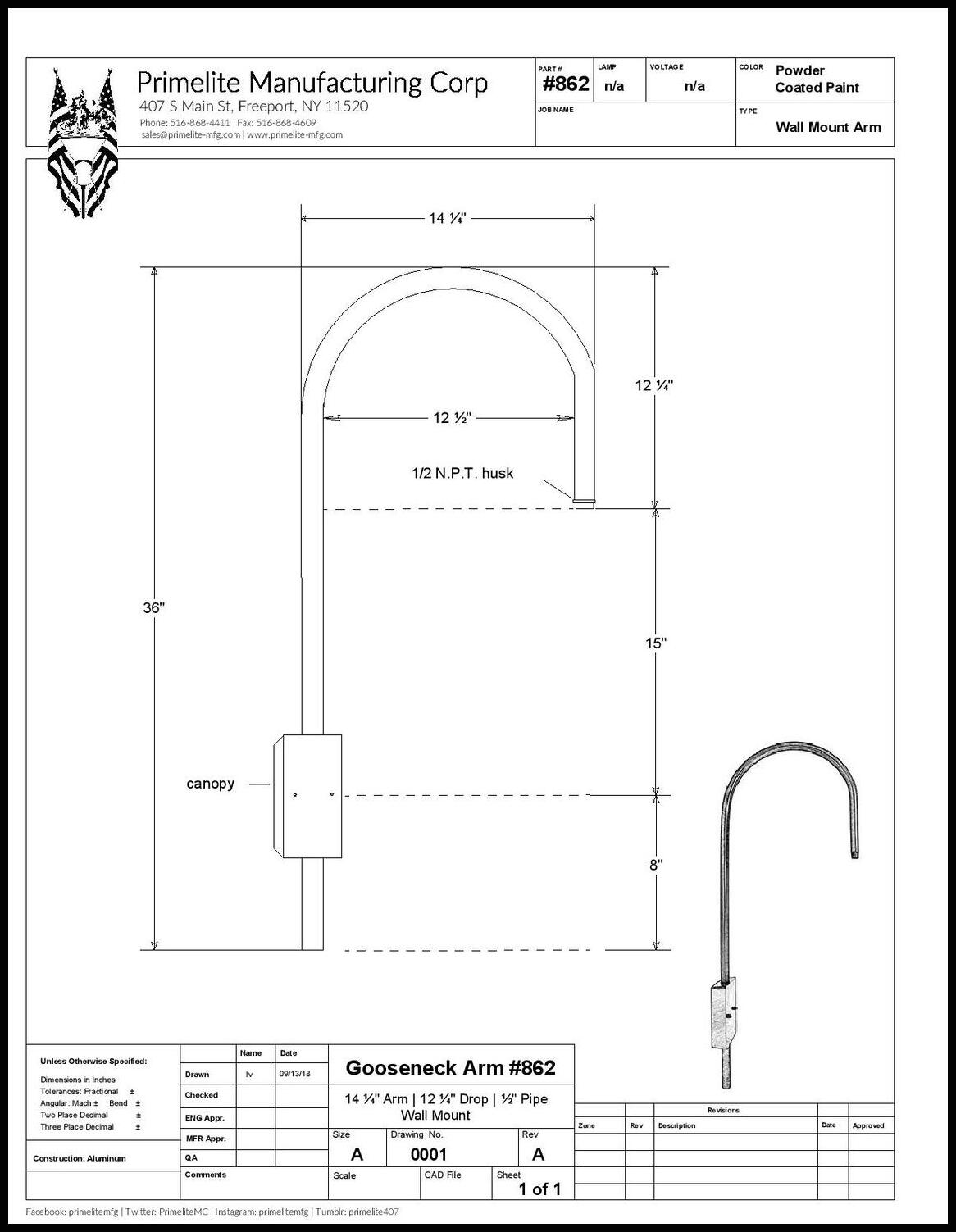

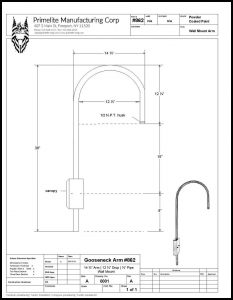

#862 – Technical Drawing

Color Options

Primelite in Color!

Primelite offers a wide selection of colors, 29 dazzling colors! From red, blue, yellow, orange, to our painted metallic finishes; chrome, galvanized, soft nickel and more. All available at no additional cost, except for Verdi Green Rub. Primelite will also work with you when a custom color is needed. Send us a paint chip or a pantone color, and Primelite will deliver the perfect fixture, color and finish!

Colors (powder coated): White, Matte White, Almond, Gray, Black, Black Gloss, Yellow, Orange, Red, Burgundy, Pink, Light Blue, Dark Blue, Navy Blue, Turquoise, Green, Hunter Green, Verdi Green, Soft Nickel, Aluminum, Chrome, Gold, Antique Brass, Copper, Galvanized, Bronze, Bronze Tone, Brown and Verdi Green Rub.
