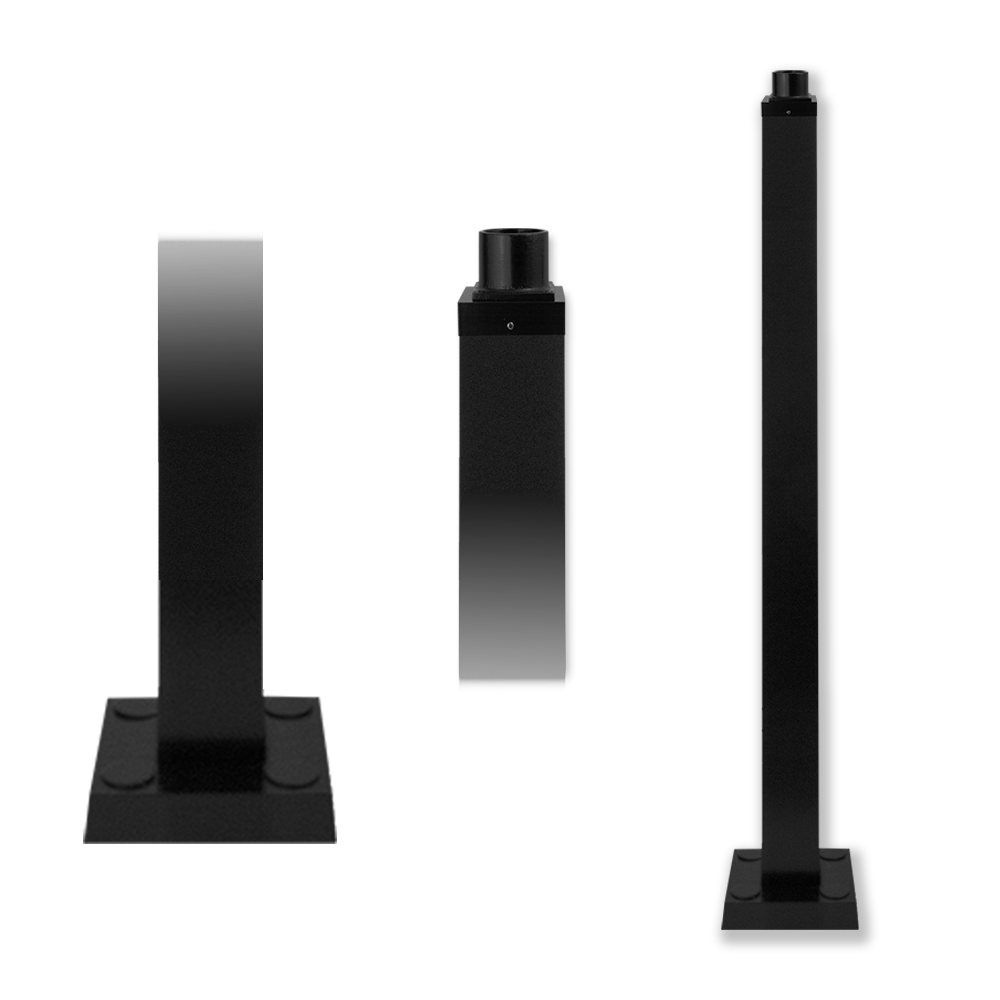

4″ Aluminum Square Post with Shoe Base

Multiple sizes of 4″ square aluminum posts available in 0.125 gauge with a 9⅛” shoe base and 8½” bolt circle.

Catalog # 6400 SB Series

Product price
Additional options total:
Order total:
Request a Quote
Categories: ,

Description

Catalog # 6407 SB | 6408 SB | 6410 SB | 6412 SB | 6414 SB | 6416 SB | 6418 SB

Dimensions: Width: 4″ | Top Adapter Diameter: 3″  | Multiple sizes available, see Post Options for details.

Construction: Aluminum

Finishes: Choice of 29 powder-coated color options. Custom finish upon request.

Description: Multiple sizes of 4″ square aluminum posts available in 0.125 gauge with a 9⅛” shoe base and 8½” bolt circle.

Custom Options Available! Contact Us for a Quote

Post Options



6407 SB 7-Foot 0.125-Gauge Post

Height: 7′ | Width: 4″ | Gauge: 0.125

Includes a top adapter for 3″ diameter holders.
6408 SB 8-Foot 0.125-Gauge Post

Height: 8′ | Width: 4″ | Gauge: 0.125

Includes a top adapter for 3″ diameter holders.
6410 SB 10-Foot 0.125-Gauge Post

Height: 10′ | Width: 4″ | Gauge: 0.125

Includes a top adapter for 3″ diameter holders.
6412 SB 12-Foot 0.125-Gauge Post

Height: 12′ | Width: 4″ | Gauge: 0.125

Includes a top adapter for 3″ diameter holders.
6414 SB 14-Foot 0.125-Gauge Post

Height: 14′ | Width: 4″ | Gauge: 0.125

Includes a top adapter for 3″ diameter holders.
6416 SB 16-Foot 0.125-Gauge Post

Height: 16′ | Width: 4″ | Gauge: 0.125

Includes a top adapter for 3″ diameter holders.
6418 SB 18-Foot 0.125-Gauge Post

Height: 18′ | Width: 4″ | Gauge: 0.125

Includes a top adapter for 3″ diameter holders.

Cut Sheet

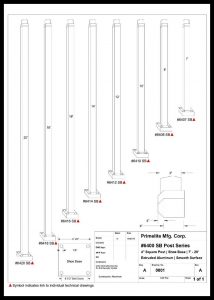

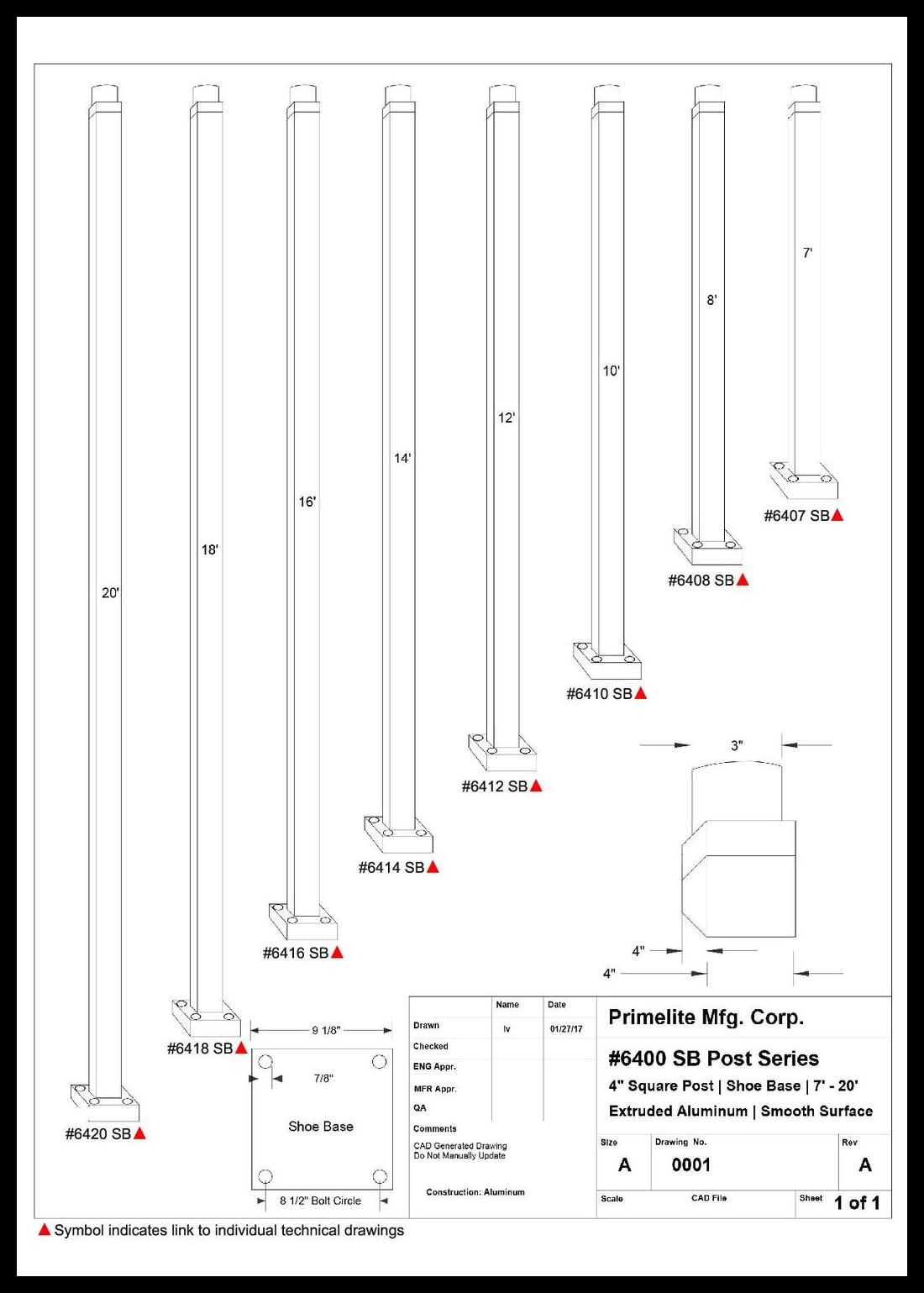

# 6400 SB Series – Technical Drawing

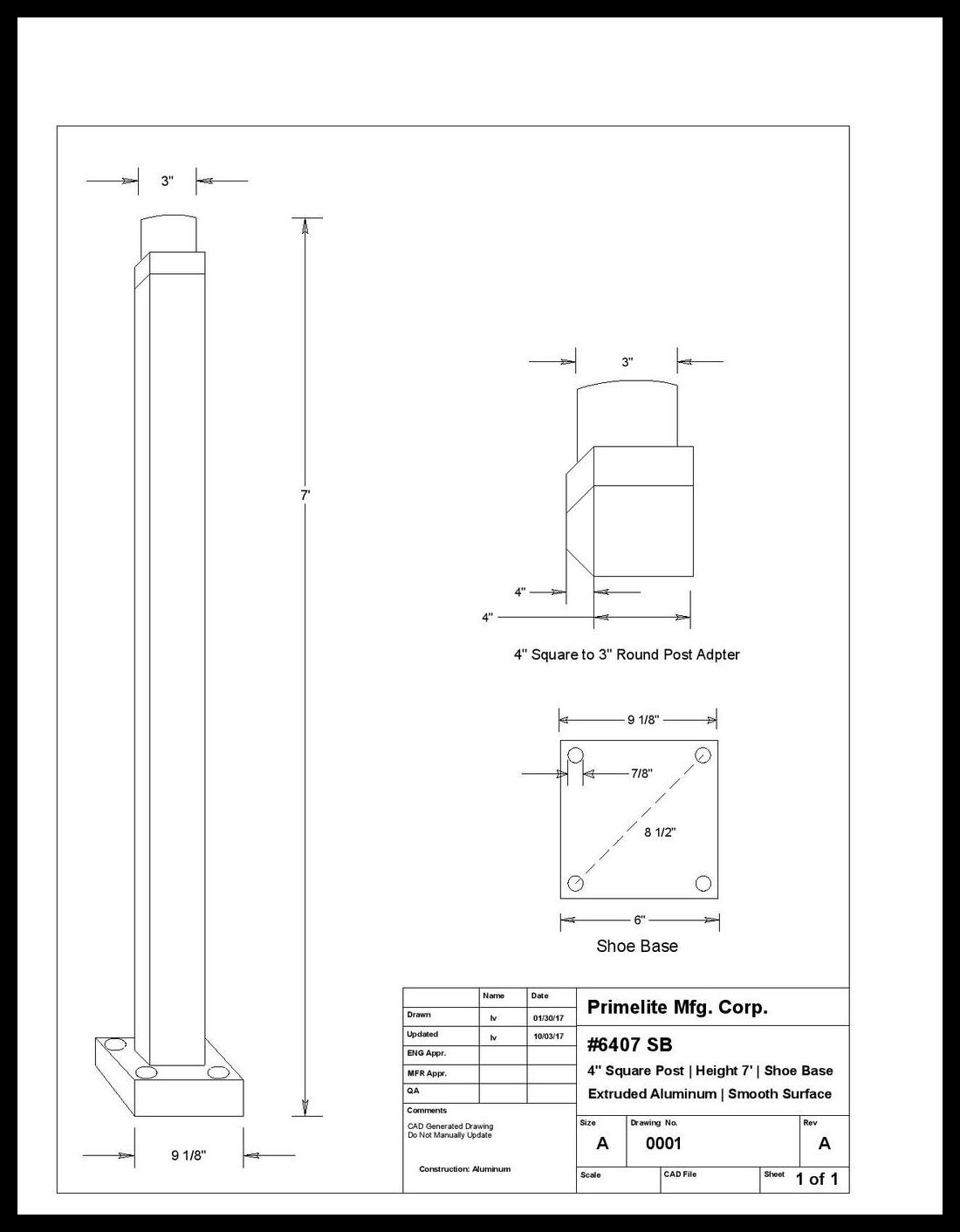

# 6407 SB – Technical Drawing

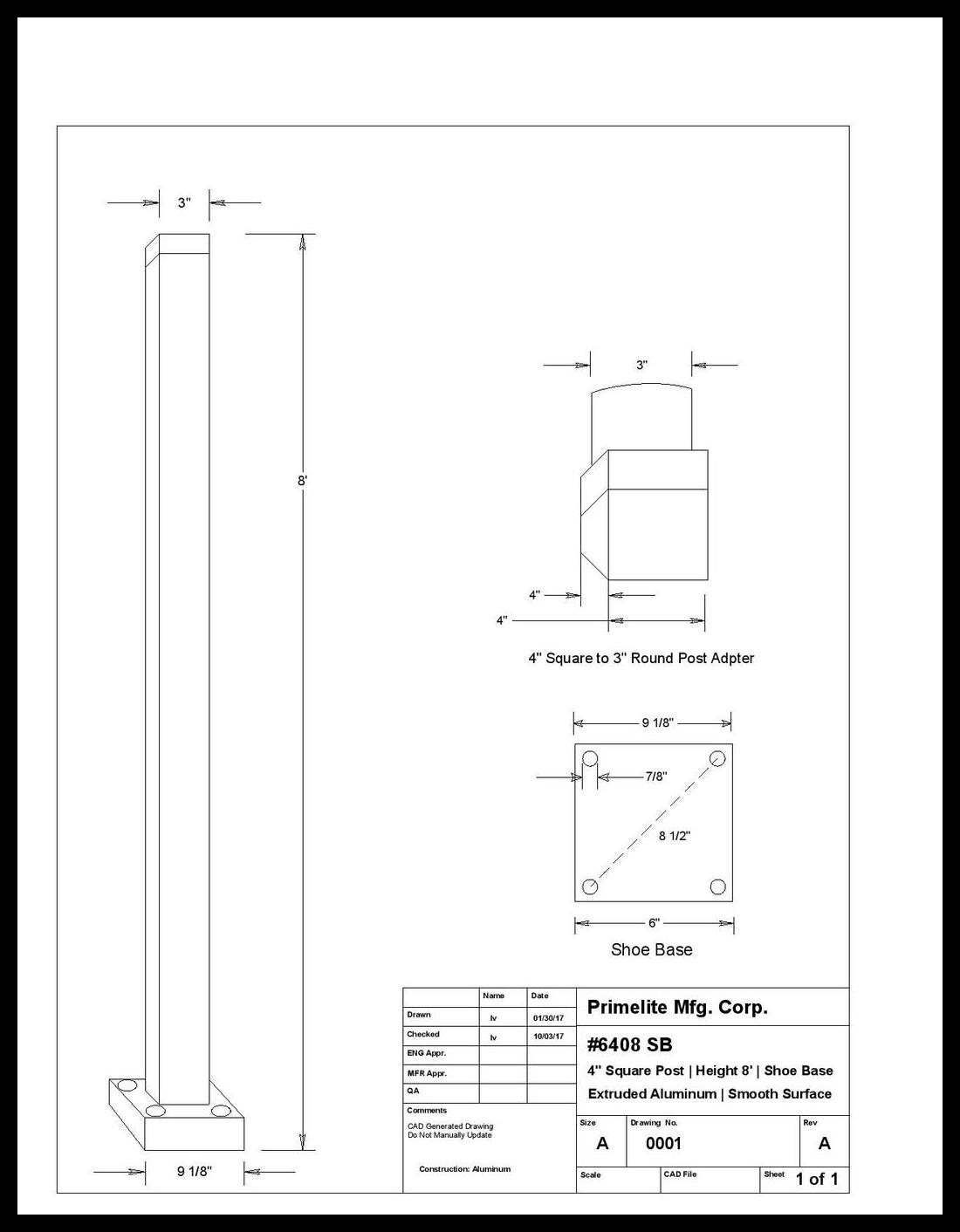

# 6408 SB – Technical Drawing

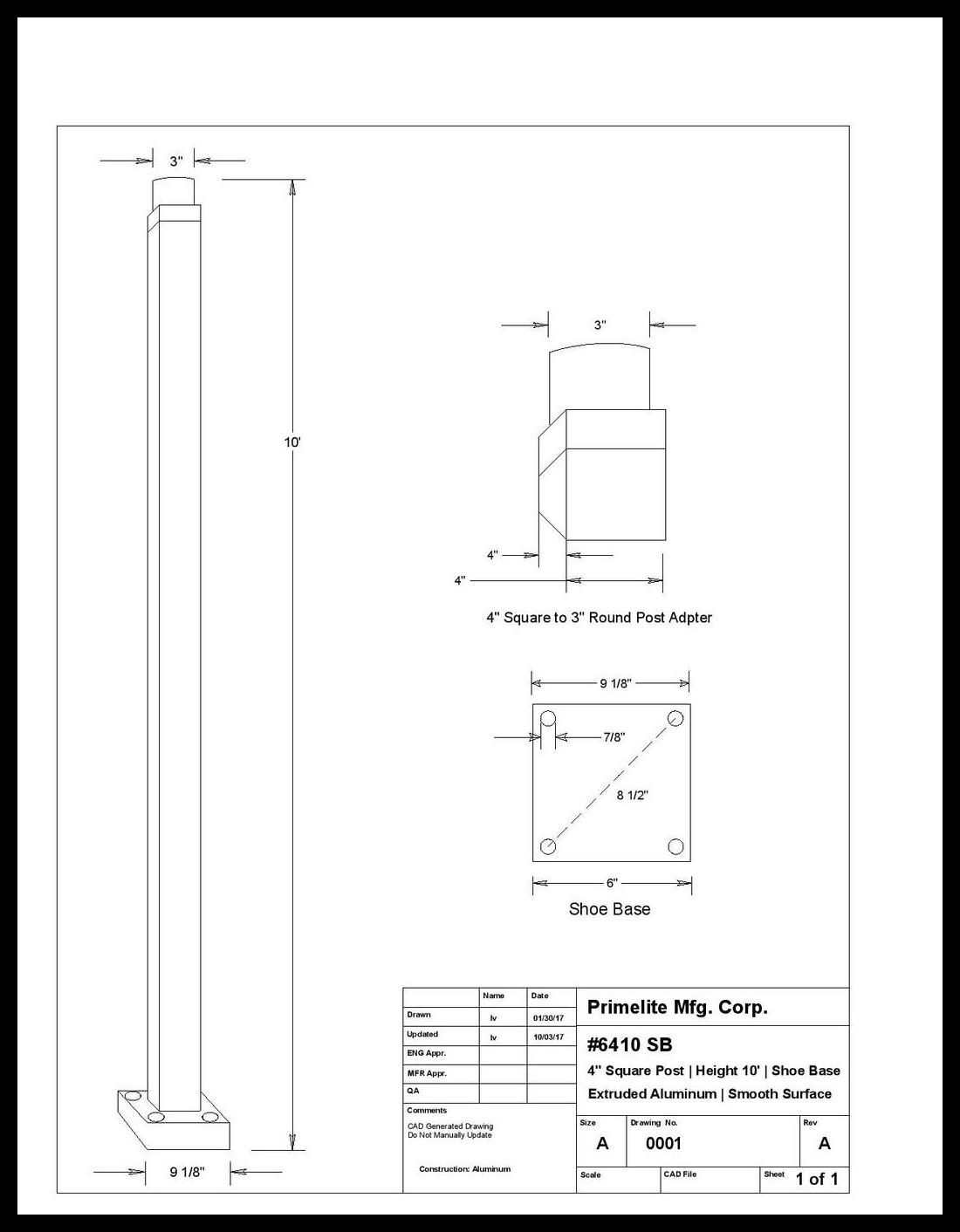

# 6410 SB – Technical Drawing

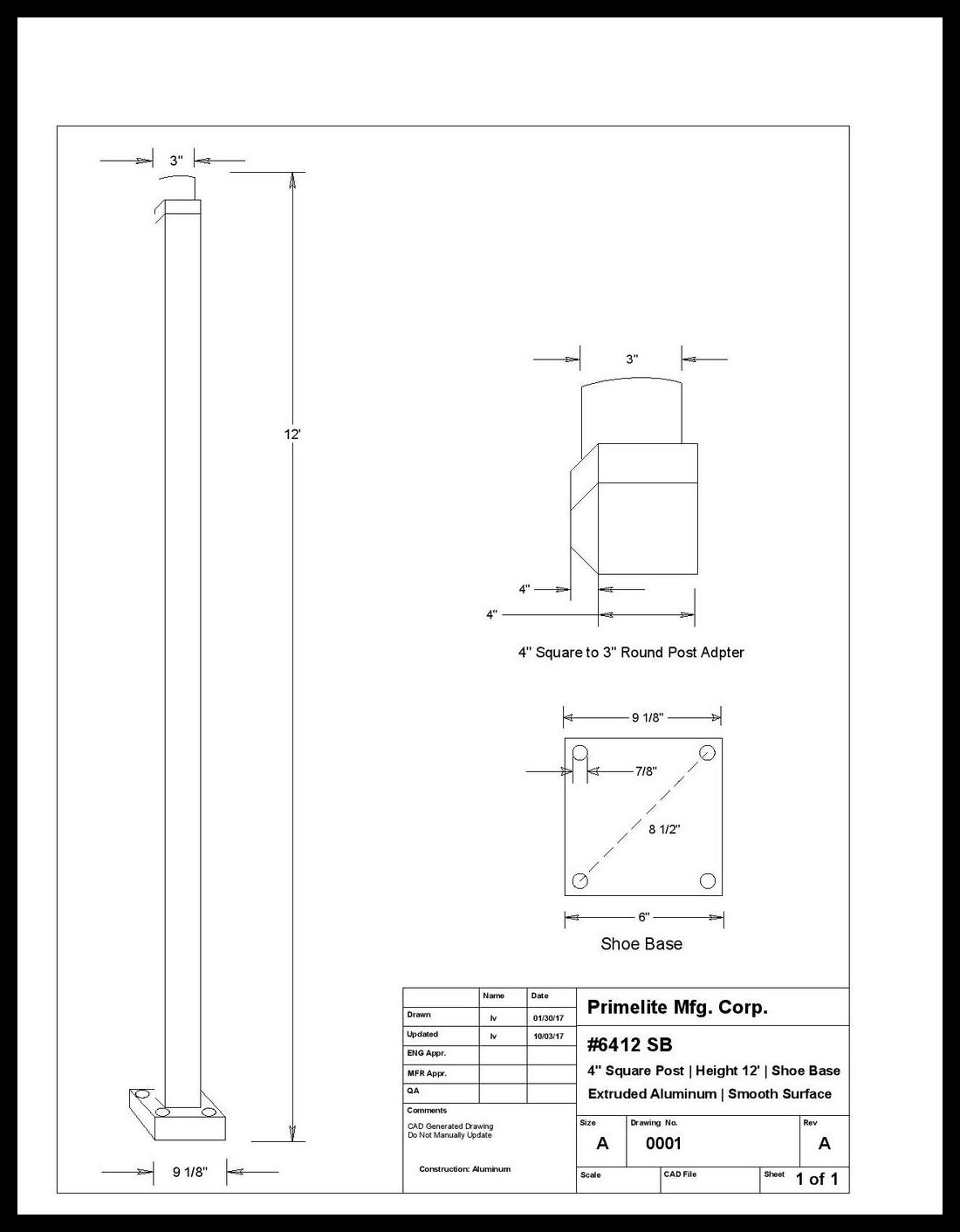

# 6412 SB – Technical Drawing

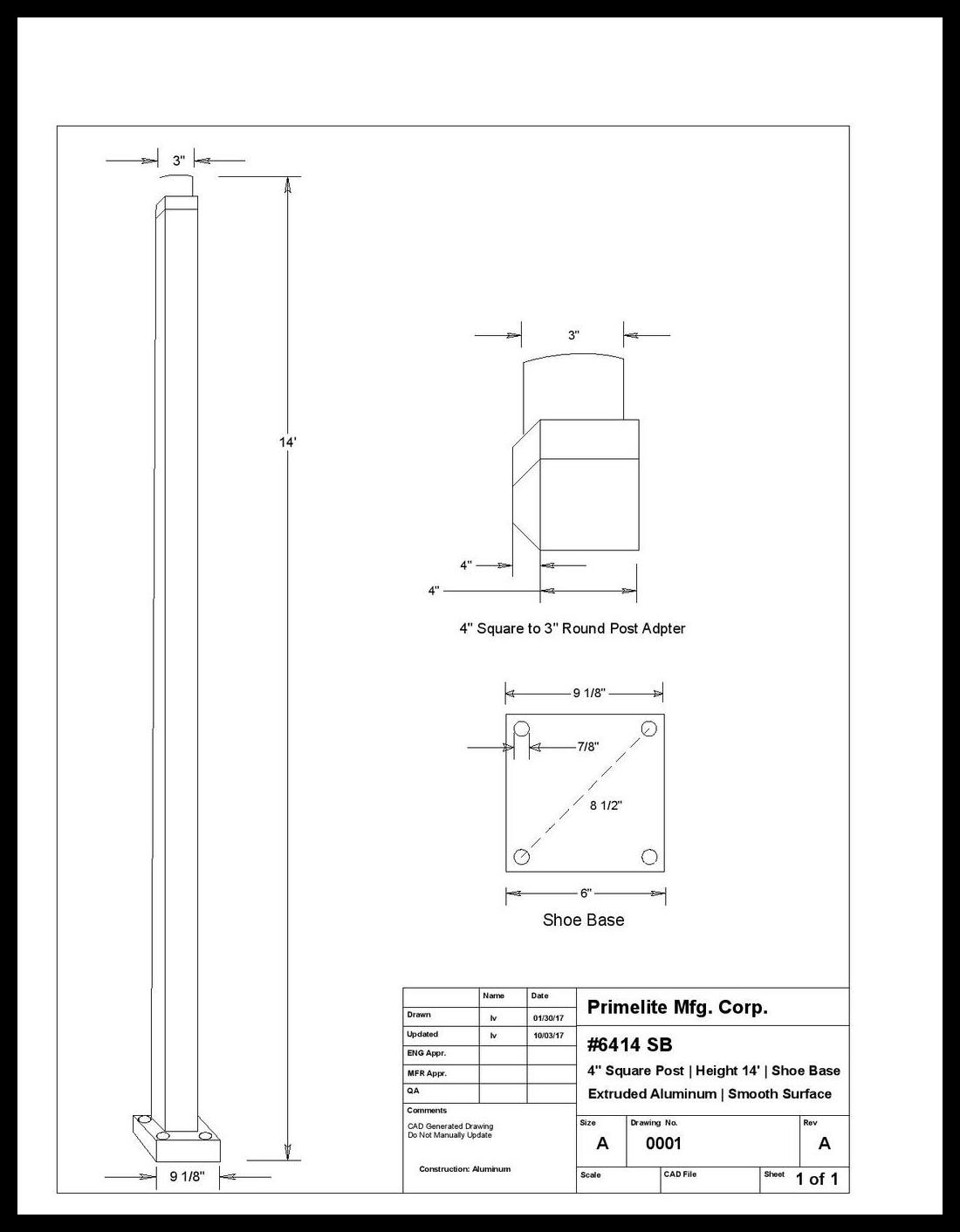

# 6414 SB – Technical Drawing

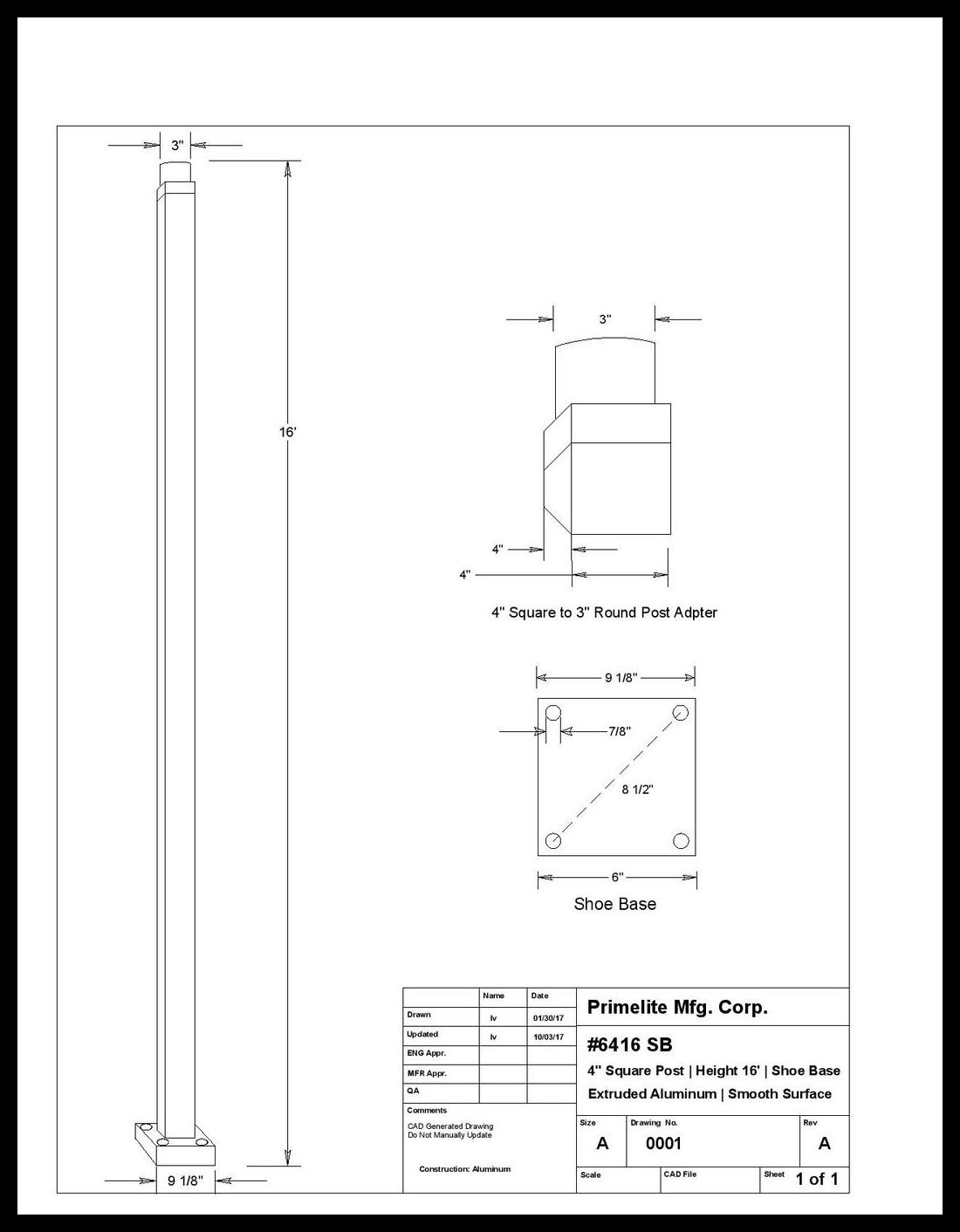

# 6416 SB – Technical Drawing

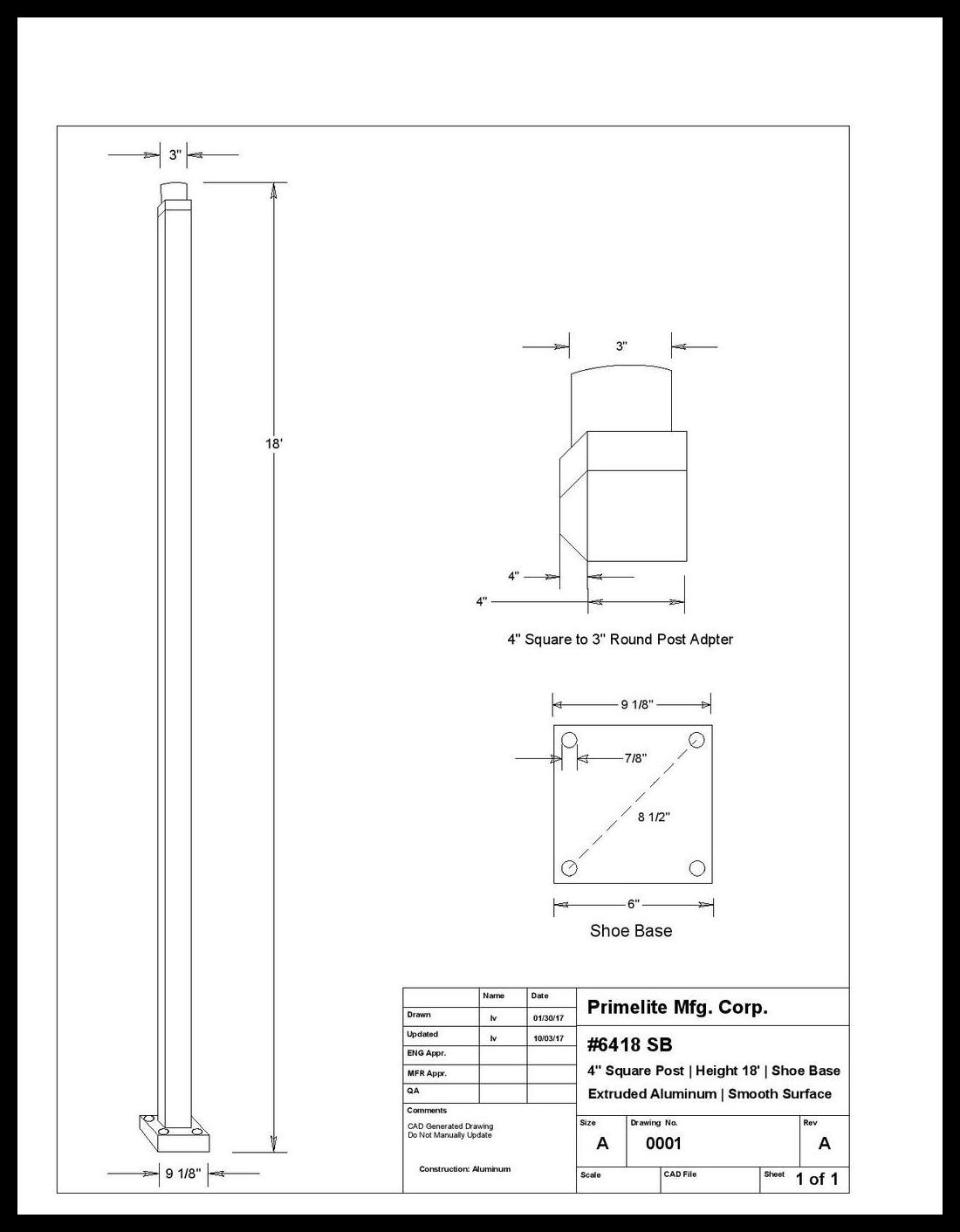

# 6418 SB – Technical Drawing

Color Options

Primelite in Color!

Primelite offers a wide selection of colors, 29 dazzling colors! From red, blue, yellow, orange, to our painted metallic finishes; chrome, galvanized, soft nickel and more. All available at no additional cost, except for Verdi Green Rub. Primelite will also work with you when a custom color is needed. Send us a paint chip or a pantone color, and Primelite will deliver the perfect fixture, color and finish!

Colors (powder coated): White, Matte White, Almond, Gray, Black, Black Gloss, Yellow, Orange, Red, Burgundy, Pink, Light Blue, Dark Blue, Navy Blue, Turquoise, Green, Hunter Green, Verdi Green, Soft Nickel, Aluminum, Chrome, Gold, Antique Brass, Copper, Galvanized, Bronze, Bronze Tone, Brown and Verdi Green Rub.
