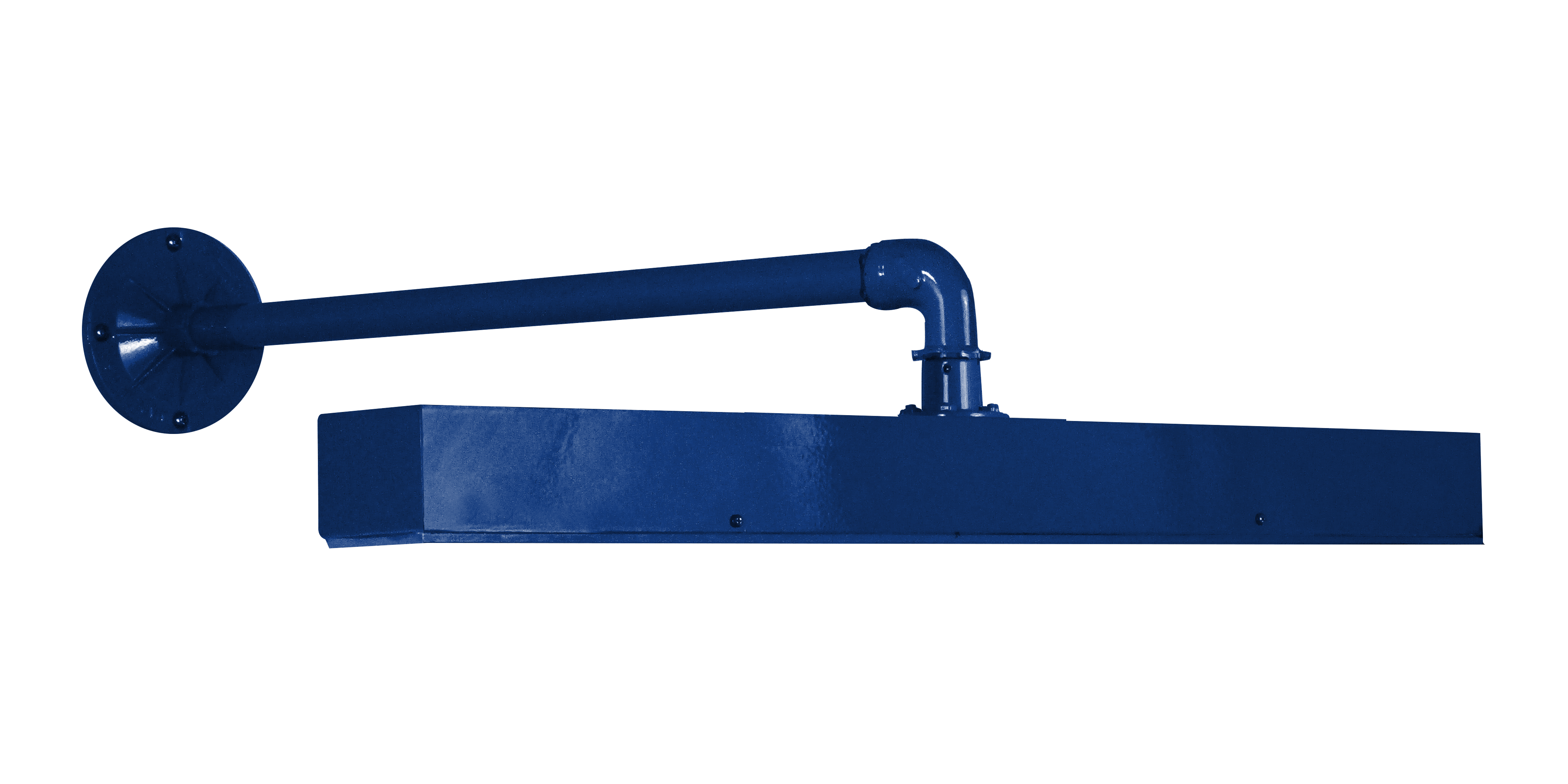

2′ LED Linear Sign Light on Straight Arm

Small linear light with integrated 25W LED strip light, driver, and heat sink on a straight arm. Comes complete and ready to mount onto 4″ octagonal junction boxes with just a simple three-wire connection needed for set-up.

Catalog # 5744/855-13 LED25

Product price
Additional options total:
Order total:
Request a Quote
Categories: , , ,

Description

Catalog # 5744/855-13 LED25

Dimensions: Height: 6 ⅝ ” | Length: 24″ | Extension: 14 ⅛ ” | 4″ Mount for Octagonal Junction Box | 1/2″ Schedule 40 Pipe | Pipe Diameter: 7/8″

Construction: Aluminum | Acrylic

Finishes: Choice of 29 powder-coated color options | Acrylic lens available in White (3), Clear (4), and Frosted (5) finishes | Custom finish upon request.

Lamps: LED 25W

Description: Small linear light with integrated 25W LED strip light, driver, and heat sink on a straight arm. Comes complete and ready to mount onto 4″ octagonal junction boxes with just a simple three-wire connection needed for set-up.

Custom Options Available! Contact Us for a Quote

Product Detail

57744/3-855 LED25 White Acrylic Lens

Height: 6 ⅝ ” | Length: 24″ | Extension: 14 ⅛ ” | 4″ Mount for Octagonal Junction Box | 1/2″ Schedule 40 Pipe | Pipe Diameter: 7/8″

Small linear light with integrated 25W LED strip light, driver, and heat sink on a straight arm. Comes complete and ready to mount onto 4″ octagonal junction boxes with just a simple three-wire connection needed for set-up.
57744/4-855 LED25 Clear Acrylic Lens

Height: 6 ⅝ ” | Length: 24″ | Extension: 14 ⅛ ” | 4″ Mount for Octagonal Junction Box | 1/2″ Schedule 40 Pipe | Pipe Diameter: 7/8″

Small linear light with integrated 25W LED strip light, driver, and heat sink on a straight arm. Comes complete and ready to mount onto 4″ octagonal junction boxes with just a simple three-wire connection needed for set-up.
57744/5-855 LED25 Frosted Acrylic Lens

Height: 6 ⅝ ” | Length: 24″ | Extension: 14 ⅛ ” | 4″ Mount for Octagonal Junction Box | 1/2″ Schedule 40 Pipe | Pipe Diameter: 7/8″

Small linear light with integrated 25W LED strip light, driver, and heat sink on a straight arm. Comes complete and ready to mount onto 4″ octagonal junction boxes with just a simple three-wire connection needed for set-up.

Cut Sheet

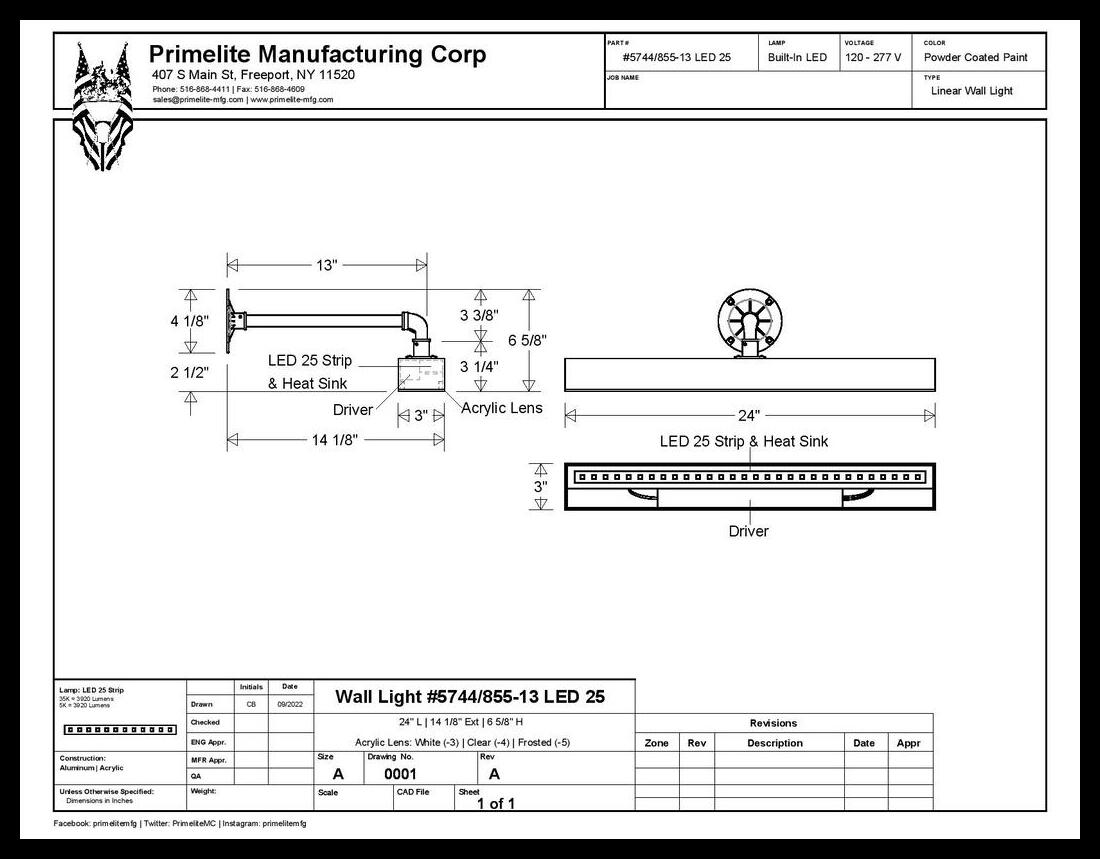

# 5744/855-13 LED25 – Technical Drawing

# 5744A LED25 – Technical Drawing

Color Options

Primelite in Color!

Primelite offers a wide selection of colors, 29 dazzling colors! From red, blue, yellow, orange, to our painted metallic finishes; chrome, galvanized, soft nickel and more. All available at no additional cost, except for Verdi Green Rub. Primelite will also work with you when a custom color is needed. Send us a paint chip or a pantone color, and Primelite will deliver the perfect fixture, color and finish!

Colors (powder coated): White, Matte White, Almond, Gray, Black, Black Gloss, Yellow, Orange, Red, Burgundy, Pink, Light Blue, Dark Blue, Navy Blue, Turquoise, Green, Hunter Green, Verdi Green, Soft Nickel, Aluminum, Chrome, Gold, Antique Brass, Copper, Galvanized, Bronze, Bronze Tone, Brown and Verdi Green Rub.
