Large Cast Aluminum Lantern Wall Bracket

Large four-panel cast aluminum wall bracket lantern on a 4″x6″ square canopy mount.

Catalog # 3231

Product price
Additional options total:
Order total:
    Reset options
Request a Quote

Description

Catalog # 3231

Size: Height: 20″ | Width: 12″ | Extension: 15″

Construction: Cast Aluminum

Finishes: Choice of 29 powder-coated color options. Custom finish upon request.

Lamps: Incandescent | LED | MH | PL-T

Description: Made from sturdy cast aluminum, this wall bracket lantern includes a 4-inch x 6-inch square canopy and can be ordered in your choice of 29 different powder-coated finishes.

Perfect for illuminating and accentuating any outdoor area, our Wall Bracket Lantern # 3231 is available with a standard incandescent E26 lightbulb socket as well in multiple MH, PL-T and LED configurations.

Custom Options Available! Contact Us for a Quote

Lamp Options

This cast wall bracket lantern is available in the following lamp configurations:

3231 Designed for use with an E26 incandescent lightbulb of up to 300 Watts (bulb not included).
3231 LED 16 Includes an integrated 16 Watt LED chip with a 50,000-hour bulb life. Choose between 3000K warm light or 4000K bright light.

1,000 Lumens

3231 LED 40 Includes four integrated 10 Watt LED chips for a total of 40 Watts with a 50,000-hour bulb life. Choose between 3000K warm light or 4000K bright light.

5,100 Lumen output.

3231 LED 68 Includes four integrated 17 Watt LED chips for a total of 68 Watts and a 50,000-hour bulb life. Choose between 3000K warm light or 4000K bright light.

8,000 Lumen output.

3231 LED 124 Includes four integrated 31 Watt LED chips for a total of 124 Watts and 50,000-hour bulb life. Choose between 3000K warm light or 4000K bright light.

16,000 Lumen output.

3231 1/PLT 26-42 Includes ONE PL-T 26-42 ballast that can be used with 26 Watt, 32 Watt or 42 Watt PL-T bulbs (bulbs not included).
3231 2/PLT 42 Includes TWO PL-T 42w ballasts for use with 2x 42 Watt PL-T bulbs (bulbs not included).
3231 50 MH Includes ballast for use with a 50 Watt Metal Halide bulb (bulb not included).
3231 70 MH Includes ballast for use with a 70 Watt Metal Halide bulb (bulb not included).
3231 100 MH Includes ballast for use with a 100 Watt Metal Halide bulb (bulb not included).
3231 150 MH Includes ballast for use with a 150 Watt Metal Halide bulb (bulb not included).
3231 175 MH Includes ballast for use with a 175 Watt Metal Halide bulb (bulb not included).
3231 250 MH Includes ballast for use with a 250 Watt Metal Halide bulb (bulb not included).

Cut Sheet

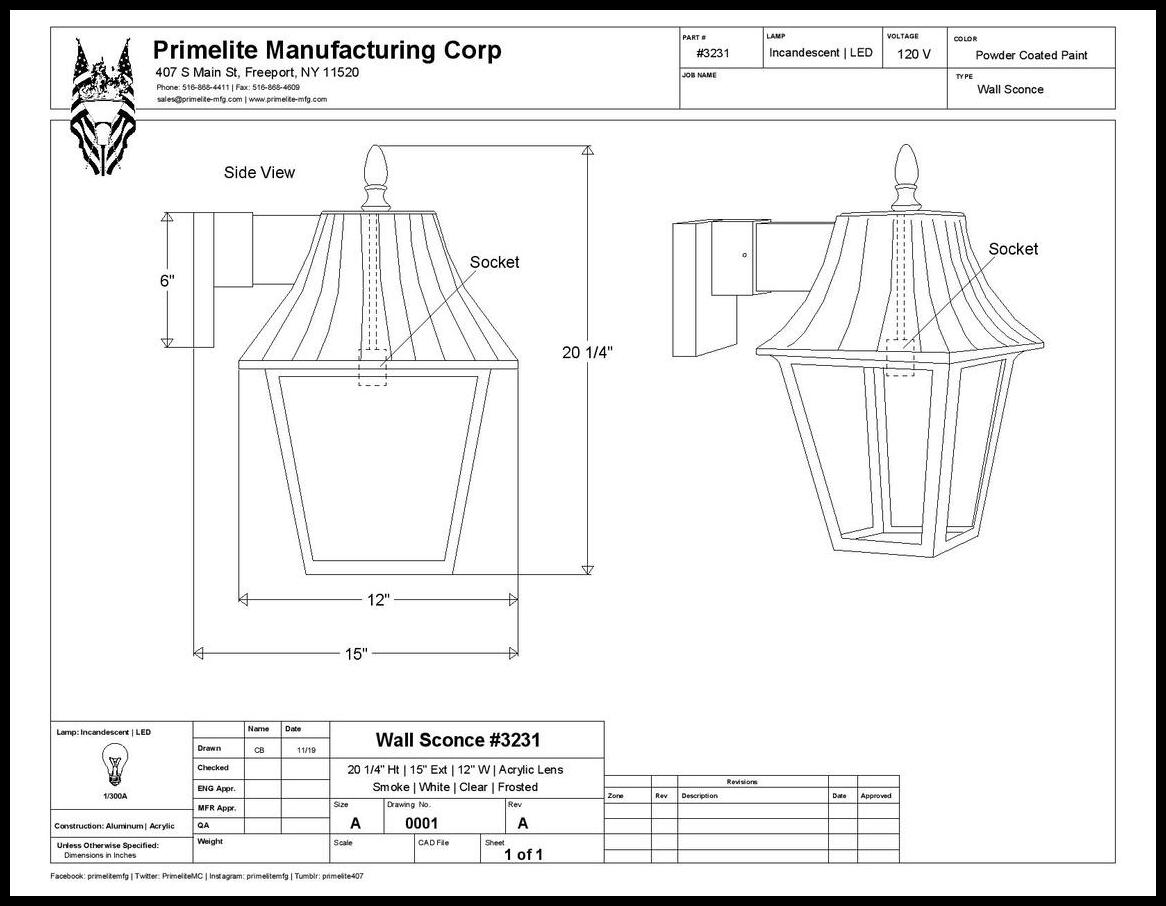

# 3231 Technical Drawing (pdf)

# 3231 LED16 Technical Drawing (pdf)

# 3231 LED40 Technical Drawing (pdf)

Color Options

Primelite in Color!

Primelite offers a wide selection of colors, 29 dazzling colors! From red, blue, yellow, orange, to our painted metallic finishes; chrome, galvanized, soft nickel and more. All available at no additional cost, except for Verdi Green Rub. Primelite will also work with you when a custom color is needed. Send us a paint chip or a pantone color, and Primelite will deliver the perfect fixture, color and finish!

Colors (powder coated): White, Matte White, Almond, Gray, Black, Black Gloss, Yellow, Orange, Red, Burgundy, Pink, Light Blue, Dark Blue, Navy Blue, Turquoise, Green, Hunter Green, Verdi Green, Soft Nickle, Aluminum, Chrome, Gold, Antique Brass, Copper, Galvanized, Bronze, Bronze Tone, Brown and Verdi Green Rub.
