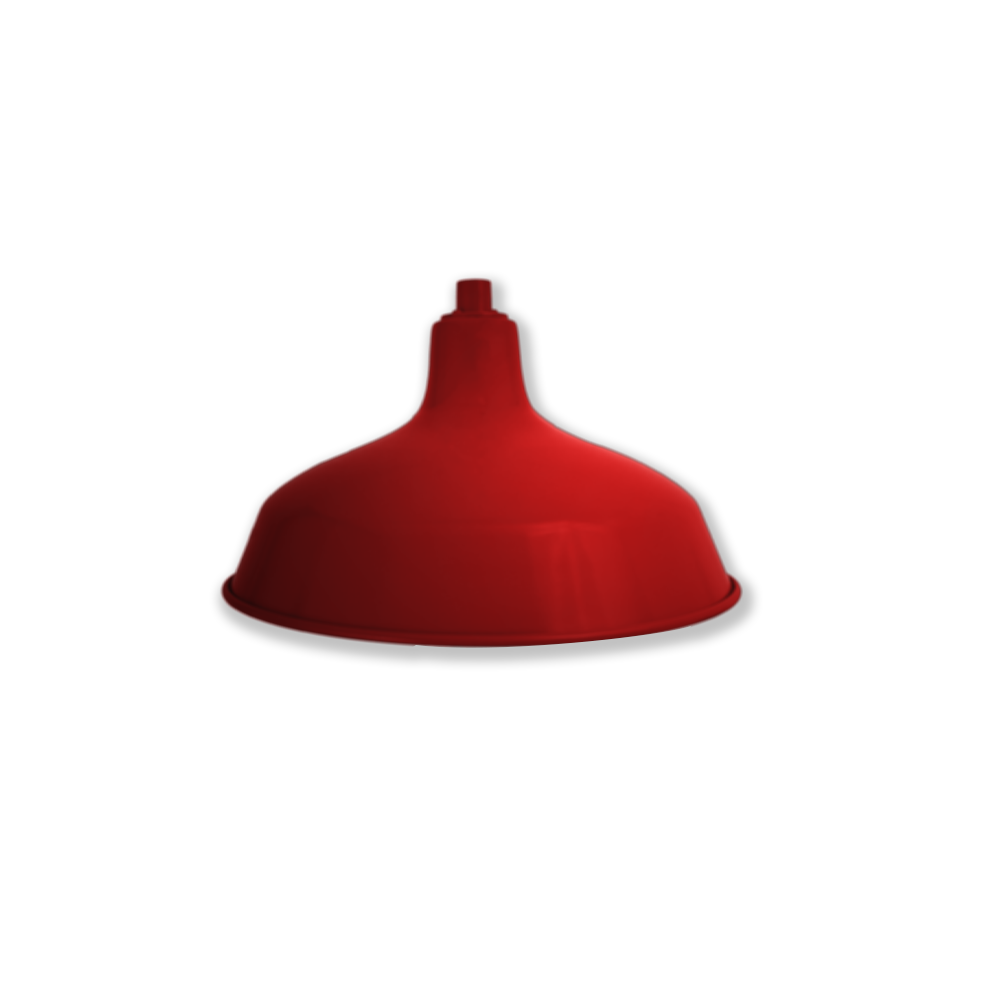

14″ RLM Barn Shade Head

14-inch diameter RLM barn shade with 5 feet leads. Can be installed on your choice of gooseneck wall or post arms. UL Listed.

Catalog # 23/14A

Product price
Additional options total:
Order total:
    Reset options
Request a Quote

Description

Catalog # 23/14A

Dimensions: Diameter: 14″ | Height: 8″ | 1/2″ Female Threaded Coupling

Construction: Aluminum

Finishes: Choice of 29 powder-coated color options. Custom finish upon request.

Lamps: Incandescent | LED

Description: 14-inch diameter RLM barn shade with 5 feet leads. Can be installed on your choice of gooseneck wall or post arms. UL Listed.

Custom Options Available! Contact Us for a Quote

Lamp Options

23/14A Incandescent

For use with one 150 Watt maximum incandescent bulb (bulb not included).

23/14A LED12 LED12

Includes integrated 12 Watt LED with a 3,000K or 4,000K color temperature, 800 Lumen output and 50,000-hour bulb life.

23/14A LED22 LED22

Includes integrated 22 Watt LED with a 3,000K or 4,000K color temperature, 1,800 Lumen output and 50,000-hour bulb life.

Cut Sheet

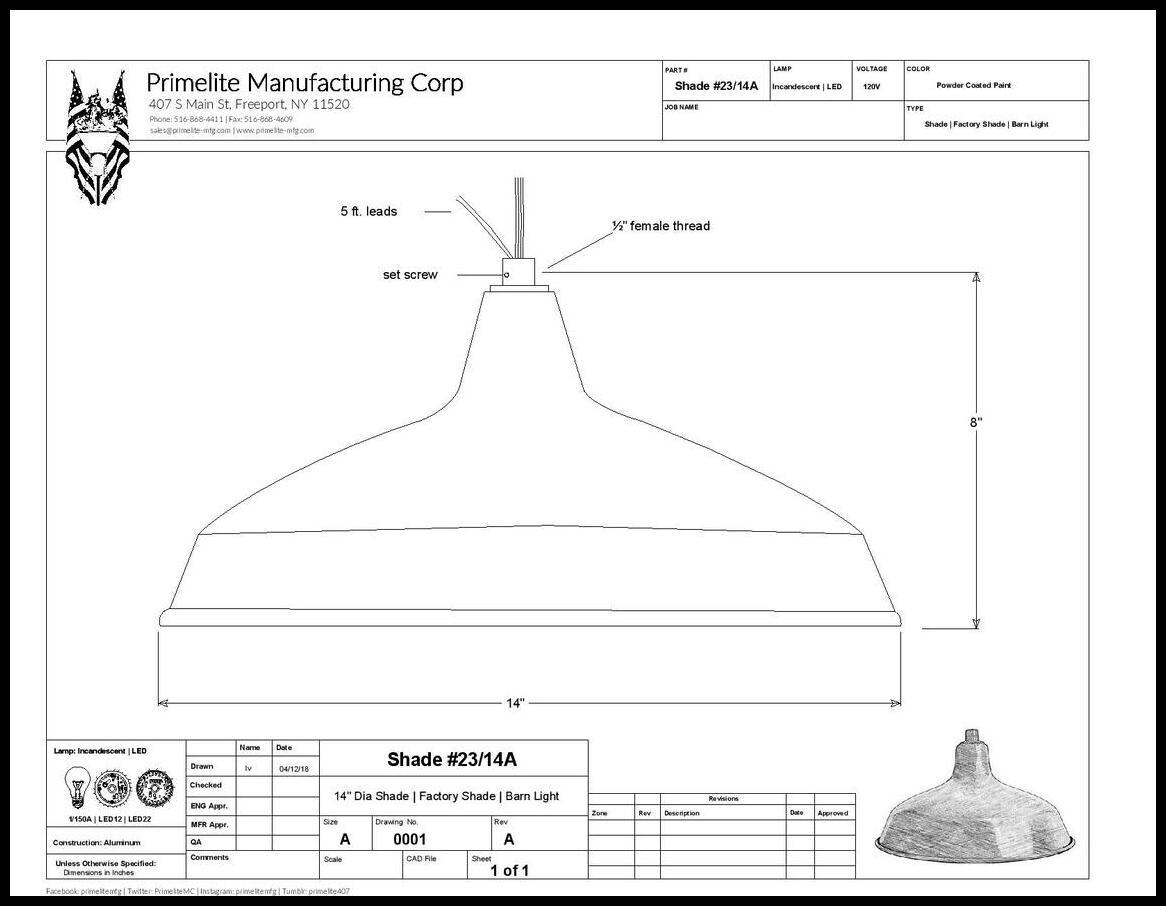

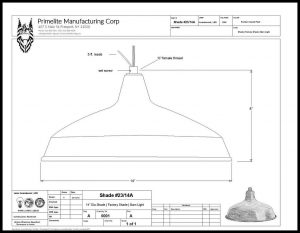

#23/14ATechnical Drawing

#23/14A LED12 – Technical Drawing

#23/14A LED22 – Technical Drawing

Color Options

Primelite in Color!

Primelite offers a wide selection of colors, 29 dazzling colors! From red, blue, yellow, orange, to our painted metallic finishes; chrome, galvanized, soft nickel and more. All available at no additional cost, except for Verdi Green Rub. Primelite will also work with you when a custom color is needed. Send us a paint chip or a pantone color, and Primelite will deliver the perfect fixture, color and finish!

Colors (powder coated): White, Matte White, Almond, Gray, Black, Black Gloss, Yellow, Orange, Red, Burgundy, Pink, Light Blue, Dark Blue, Navy Blue, Turquoise, Green, Hunter Green, Verdi Green, Soft Nickel, Aluminum, Chrome, Gold, Antique Brass, Copper, Galvanized, Bronze, Bronze Tone, Brown and Verdi Green Rub.
