RLM Barn Shade on Small Outdoor Gooseneck Arm

14″ or 16″ RLM warehouse shade on a small gooseneck arm and 4″ round cast canopy. 90° angle ESW swivel option available. UL Listed.

Catalog # 23/850

Product price
Additional options total:
Order total:
    Reset options
Request a Quote

Description

Catalog # 23/14-850 | # 23/16-850

Dimensions: Multiple Sizes Available. See Lamp Option for Details

4″ Mount for Octagonal Junction Box | 1/2″ Schedule 40 Pipe | Pipe Diameter: 7/8″

Construction: Aluminum

Finishes: Choice of 29 powder-coated color options. Custom finish upon request.

Lamps: Incandescent | LED

Available Options: 90° Angle ESW Swivel

Description: 14″ or 16″ RLM warehouse shade on a small gooseneck arm and 4″ round cast canopy. 90° angle ESW swivel option available. UL Listed.

Custom Options Available! Contact Us for a Quote

Product Detail

23/14-850 14″ Incandescent Shade

Shade Diameter: 14″ | Shade Height: 8″ | Extension: 29″

For use with one 150 Watt maximum incandescent bulb (bulb not included).

23/14-850 LED12 14″ LED12 Shade

Shade Diameter: 14″ | Shade Height: 8″ | Extension: 29″

Includes integrated 12 Watt LED with a 3,000K or 4,000K color temperature, 800 Lumen output and 50,000-hour bulb life.

23/14-850 LED22 14″ LED22 Shade

Shade Diameter: 14″ | Shade Height: 8″ | Extension: 29″

Includes integrated 22 Watt LED with a 3,000K or 4,000K color temperature, 1800 Lumen output and 50,000-hour bulb life.

23/16-850 16″ Incandescent Shade

Shade Diameter: 16″ | Shade Height: 9″ | Extension: 30″

For use with one 200 Watt maximum incandescent bulb (bulb not included).

23/16-850 LED12 16″ LED12 Shade

Shade Diameter: 16″ | Shade Height: 9″ | Extension: 30″

Includes integrated 12 Watt LED with a 3,000K or 4,000K color temperature, 800 Lumen output and 50,000-hour bulb life.

23/16-850 LED22 16″ LED22 Shade

Shade Diameter: 16″ | Shade Height: 9″ | Extension: 30″

Includes integrated 22 Watt LED with a 3,000K or 4,000K color temperature, 1800 Lumen output and 50,000-hour bulb life.

23/16-850 ESW 16″ Incandescent Shade with Swivel

Shade Diameter: 16″ | Shade Height: 9″ | Extension: 30″

For use with one 200 Watt maximum incandescent bulb (bulb not included) and a 90° angle ESW swivel.

23/16-850 ESW LED12 16″ LED12 Shade with Swivel

Shade Diameter: 16″ | Shade Height: 9″ | Extension: 30″

Includes integrated 12 Watt LED with a 3,000K or 4,000K color temperature, 800 Lumen output, 50,000-hour bulb life and a 90° angle ESW swivel.

23/16-850 ESW LED22 16″ LED22 Shade with Swivel

Shade Diameter: 16″ | Shade Height: 9″ | Extension: 30″

Includes integrated 22 Watt LED with a 3,000K or 4,000K color temperature, 1800 Lumen output, 50,000-hour bulb life and a 90° angle ESW swivel.

Cut Sheet

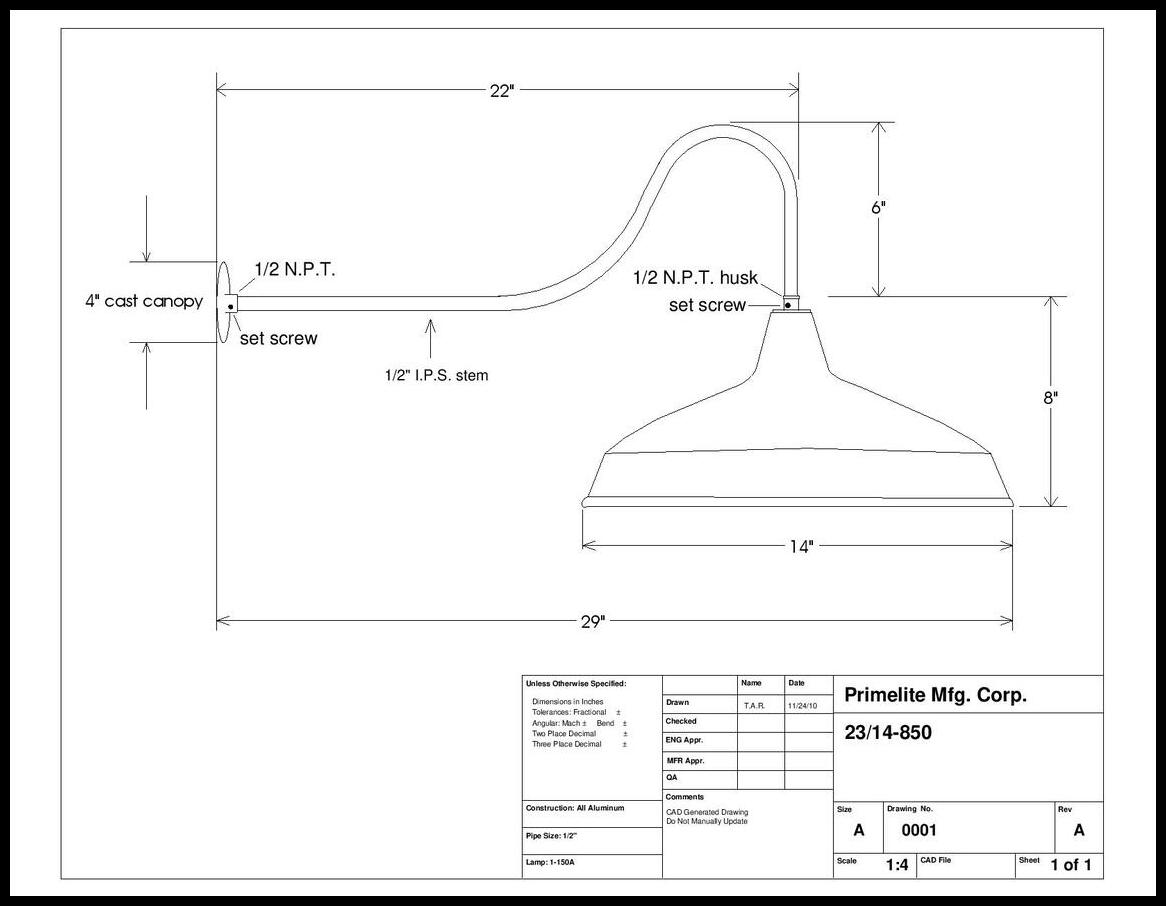

#23/14-850 – Technical Drawing

#23/16-850 Technical Drawing

#23/16-850 LED12 Technical Drawing

#23/16-850 LED22 Technical Drawing

#23/16-850 ESW Technical Drawing

Color Options

Primelite in Color!
Primelite offers a wide selection of colors, 29 dazzling colors! From red, blue, yellow, orange, to our painted metallic finishes; chrome, galvanized, soft nickel and more. All available at no additional cost, except for Verdi Green Rub. Primelite will also work with you when a custom color is needed. Send us a paint chip or a pantone color, and Primelite will deliver the perfect fixture, color and finish!
Colors (powder coated): White, Matte White, Almond, Gray, Black, Black Gloss, Yellow, Orange, Red, Burgundy, Pink, Light Blue, Dark Blue, Navy Blue, Turquoise, Green, Hunter Green, Verdi Green, Soft Nickle, Aluminum, Chrome, Gold, Antique Brass, Copper, Galvanized, Bronze, Bronze Tone, Brown and Verdi Green Rub.
