Angle Shade w/ 90-Degree Swivel on Standard Gooseneck Sign Light

All-aluminum outdoor gooseneck w/ 90-degree swivel on 4″ cast canopy.

Catalog # 20/850 ESW

Product price
Additional options total:
Order total:
Request a Quote


Catalog # 20/850-ESW | # 20/12-850-ESW

Arm Dimensions: 7/8″ Diameter | 22″ Gooseneck Arm Extension | 4″ Cast Canopy for Octagonal Junction Box | 1/2″ Schedule 40 Pipe | 90-degree front bend

Lamp Dimensions: Multiple sizes available, see Fixture Options for details.

Construction: Aluminum

Finishes: Choice of 29 powder-coated color options. Custom finish upon request.

Lamps: Incandescent | LED

Swivel: 90° Angle (ESW)

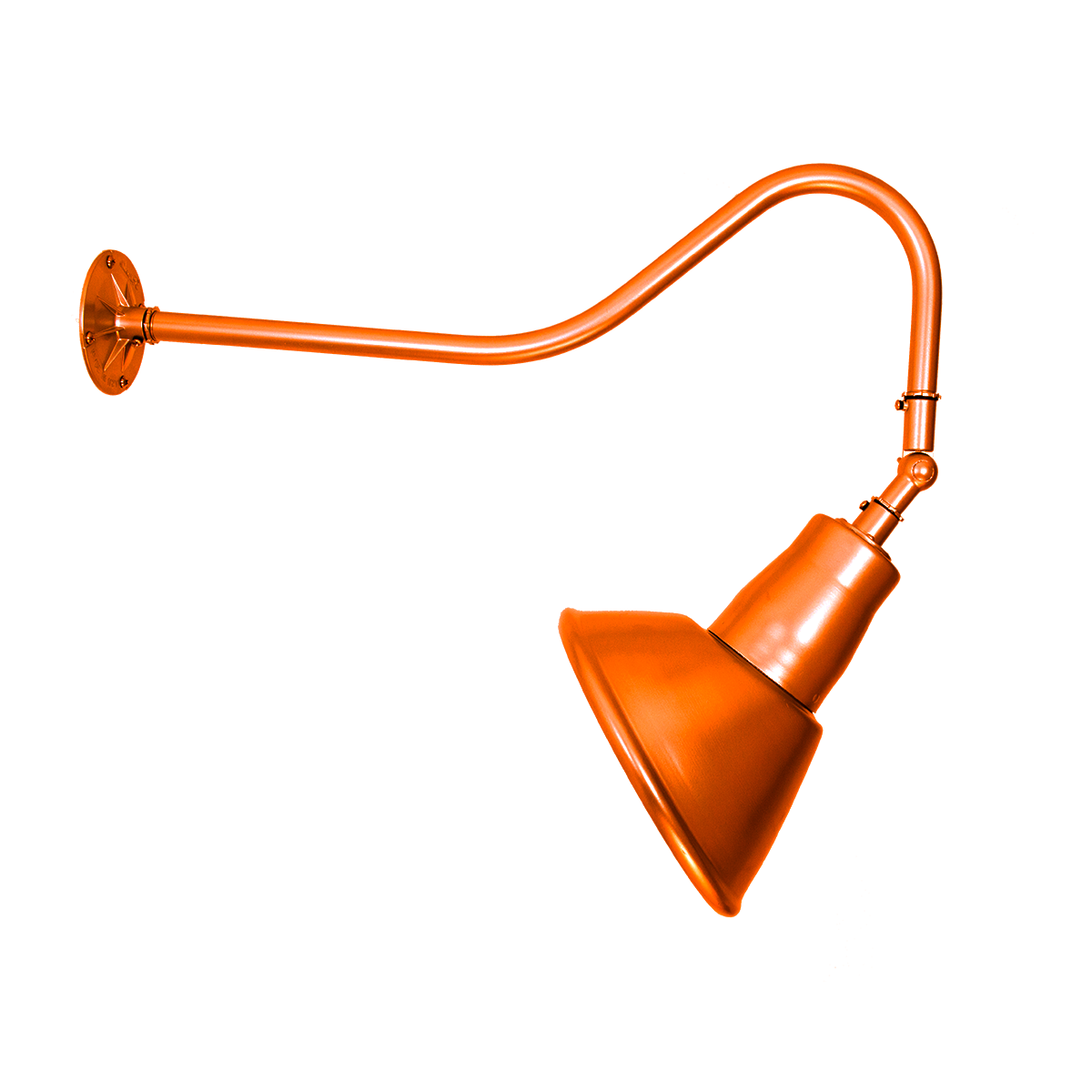

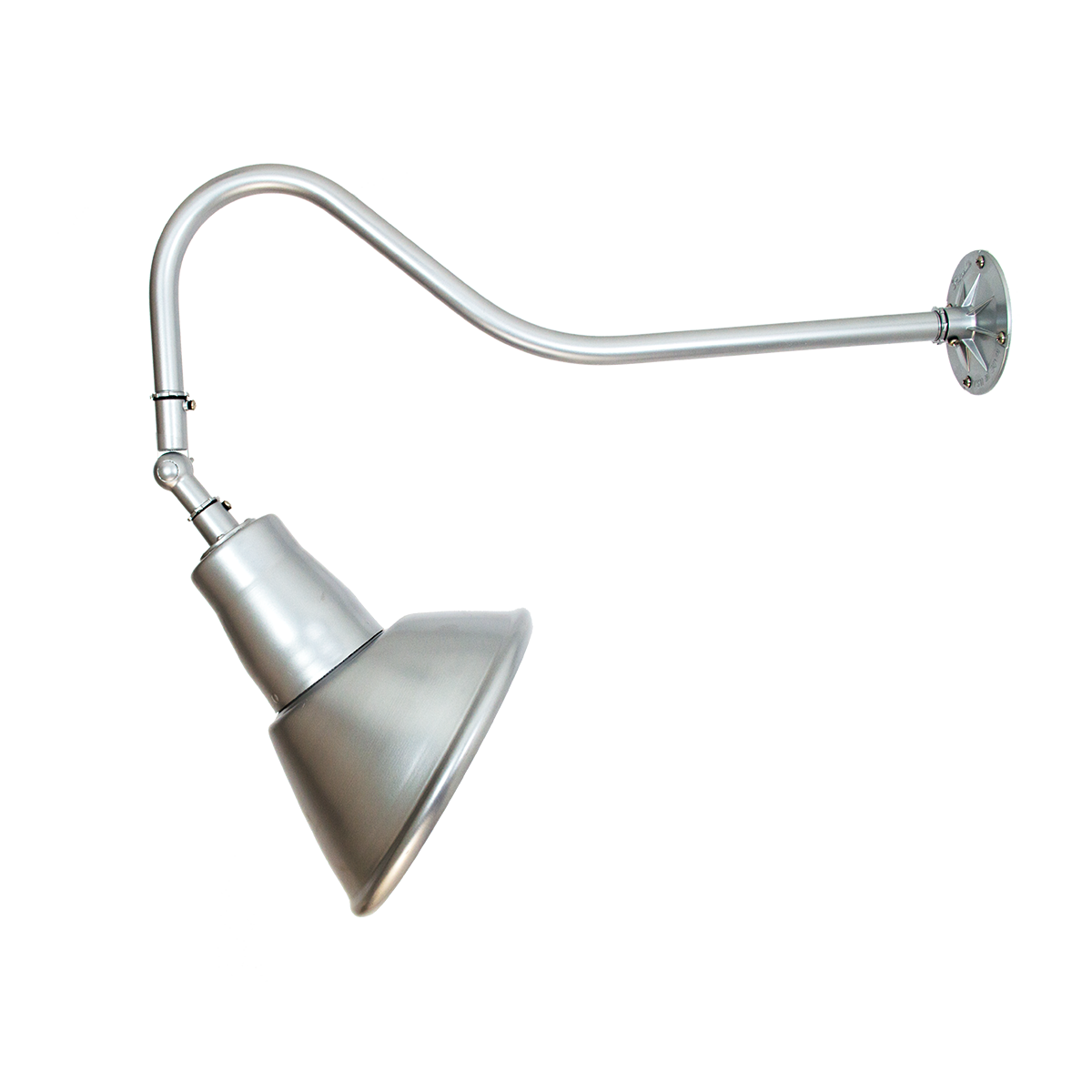

Our #20/850-ESW | #20/12-850-ESW gooseneck light fixtures are among our top-selling and most adaptable designs. Made entirely from aluminum and UL-listed for wet environments, these durable lights are rust-proof and ideal for beautifying any outdoor area. The #20/850-ESW | #20/12-850-ESW models come equipped with heat-resistant porcelain sockets and a 4-inch cast canopy that easily attaches to any 4-inch octagonal junction box. They also include a 90-degree angle ESW swivel.

You can customize the #20/850 ESW and #20/12-850-ESW fixtures with over 29 different powder-coated color options and choose between incandescent and LED lighting setups.

You also have the option to select a shade head size: either a 9.5-inch diameter for the #20/850-ESW model or a 12-inch diameter for the #20/12-850-ESW version.

Custom Options Available! Contact Us for a Quote

Color Options

Primelite in Color!
Primelite offers a wide selection of colors, 29 dazzling colors! From red, blue, yellow, orange, to our painted metallic finishes; chrome, galvanized, soft nickel and more. All available at no additional cost, except for Verdi Green Rub. Primelite will also work with you when a custom color is needed. Send us a paint chip or a pantone color, and Primelite will deliver the perfect fixture, color and finish!
Colors (powder coated): White, Matte White, Almond, Gray, Black, Black Gloss, Yellow, Orange, Red, Burgundy, Pink, Light Blue, Dark Blue, Navy Blue, Turquoise, Green, Hunter Green, Verdi Green, Soft Nickle, Aluminum, Chrome, Gold, Antique Brass, Copper, Galvanized, Bronze, Bronze Tone, Brown and Verdi Green Rub.

Cut Sheet

Gooseneck #20/850-ESW

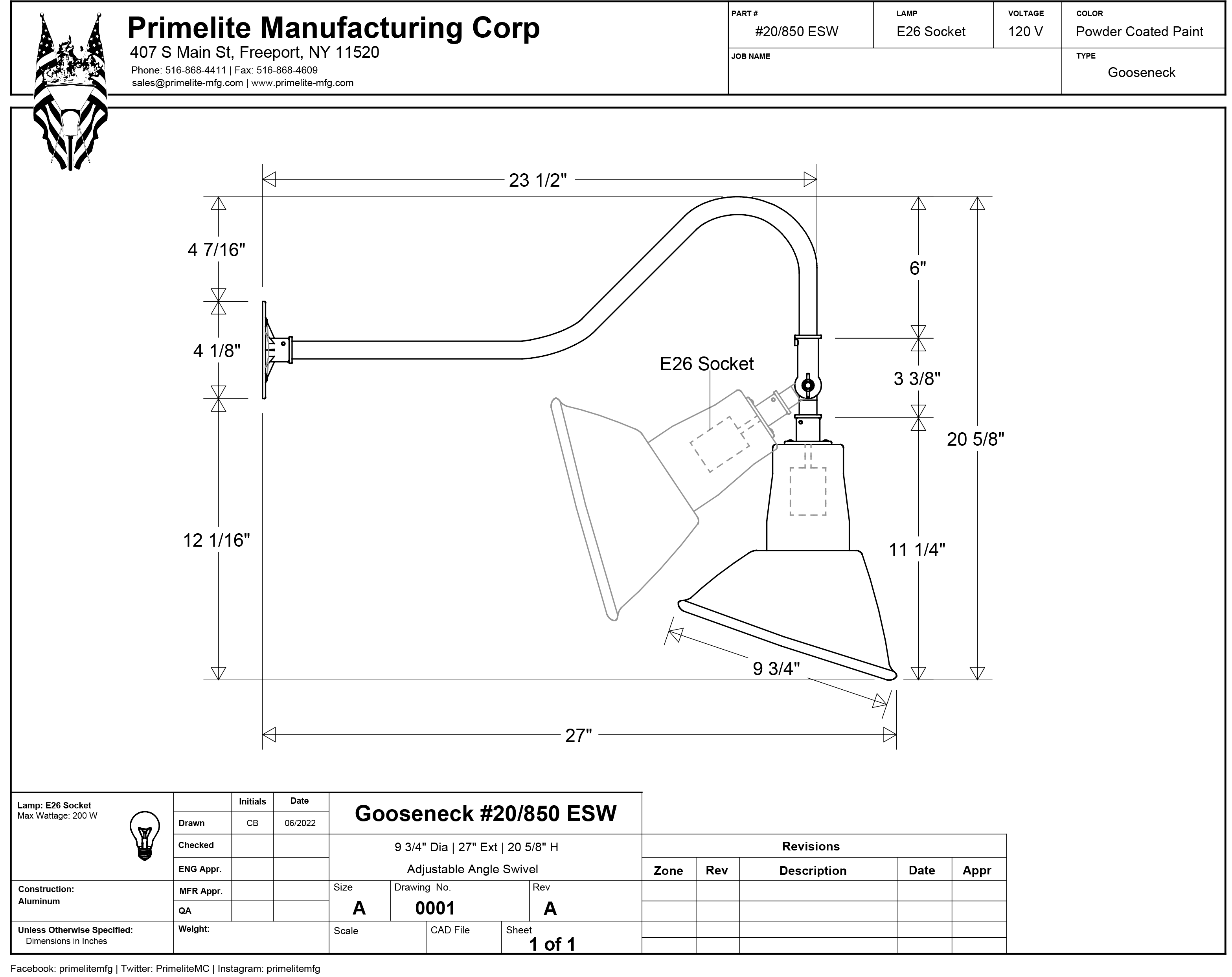

# 20/850 ESW Technical Drawing

# 20/12-850 ESW Technical Drawing
