Acrylic Post Light with Ballast Pot

Acrylic Globe Post Light, aluminum ballast pot holder.

Catalog # 1284B-1306B

Product price
Additional options total:
Order total:
Request a Quote
Categories: , , , , , ,

Description

Catalog # 1284 B | 1286 B | 1288 B | 1290 B | 1292 B | 1294 B | 1297 B | 1300 B | 1306 B

Dimensions: Multiple Sizes Available. See Lamp Option for Details.

Construction: Aluminum and Acrylic Construction

Finishes: Globe available in Smoke (-1), White (-3), and Clear (-4), |  Custom finish upon request

Lamps: Incandescent

Description: Acrylic Globe Post Light, aluminum ballast pot holder.

Features

  • Made in the U.S.A.
  • Aluminum and Acrylic Construction
  • Smoke, White, or Clear Globe
  • Number of Sockets: 1
  • Maximum Wattage per Socket: 150-300 Incandescent
  • 75 Watt – 200 Watt HID Maximum
  • Available as LED
  • Mogul Socket Available
  • Over 25 powder-coated finishes
  • UL Listed
  • Mount: Fits over and secures to 3″ round post

Custom Options Available! Contact Us for a Quote

Product Detail

1284 B 14″ Acrylic Globe Post

Globe Diameter: 3″

HID ballast up to 75 Watt HID available (bulb and ballast not included).
1286 B 16″ Acrylic Globe Post

Globe Diameter: 3″

HID ballast up to 100 Watt HID available (bulb and ballast not included).
1288 B 18″ Acrylic Globe Post

Globe Diameter: 3″

HID ballast up to 175 Watt HID available (bulb and ballast not included).
1290 B 20″ Acrylic Globe Post

Globe Diameter: 3″

HID ballast up to 175 Watt HID available (bulb and ballast not included).
1292 B 22″ Acrylic Globe Post

Globe Diameter: 3″

HID ballast up to 175 Watt HID available (bulb and ballast not included).
1294 B 24″ Acrylic Globe Post

Globe Diameter: 3″

HID ballast up to 200 Watt HID available (bulb and ballast not included).
1297 B 27″ Acrylic Globe Post

Globe Diameter: 3″

HID ballast up to 200 Watt HID available (bulb and ballast not included).
1300 B 30″ Acrylic Globe Post

Globe Diameter: 3″

HID ballast up to 200 Watt HID available (bulb and ballast not included).
1306 B 36″ Acrylic Globe Post

Globe Diameter: 3″

HID ballast up to 200 Watt HID available (bulb and ballast not included).

Cut Sheet

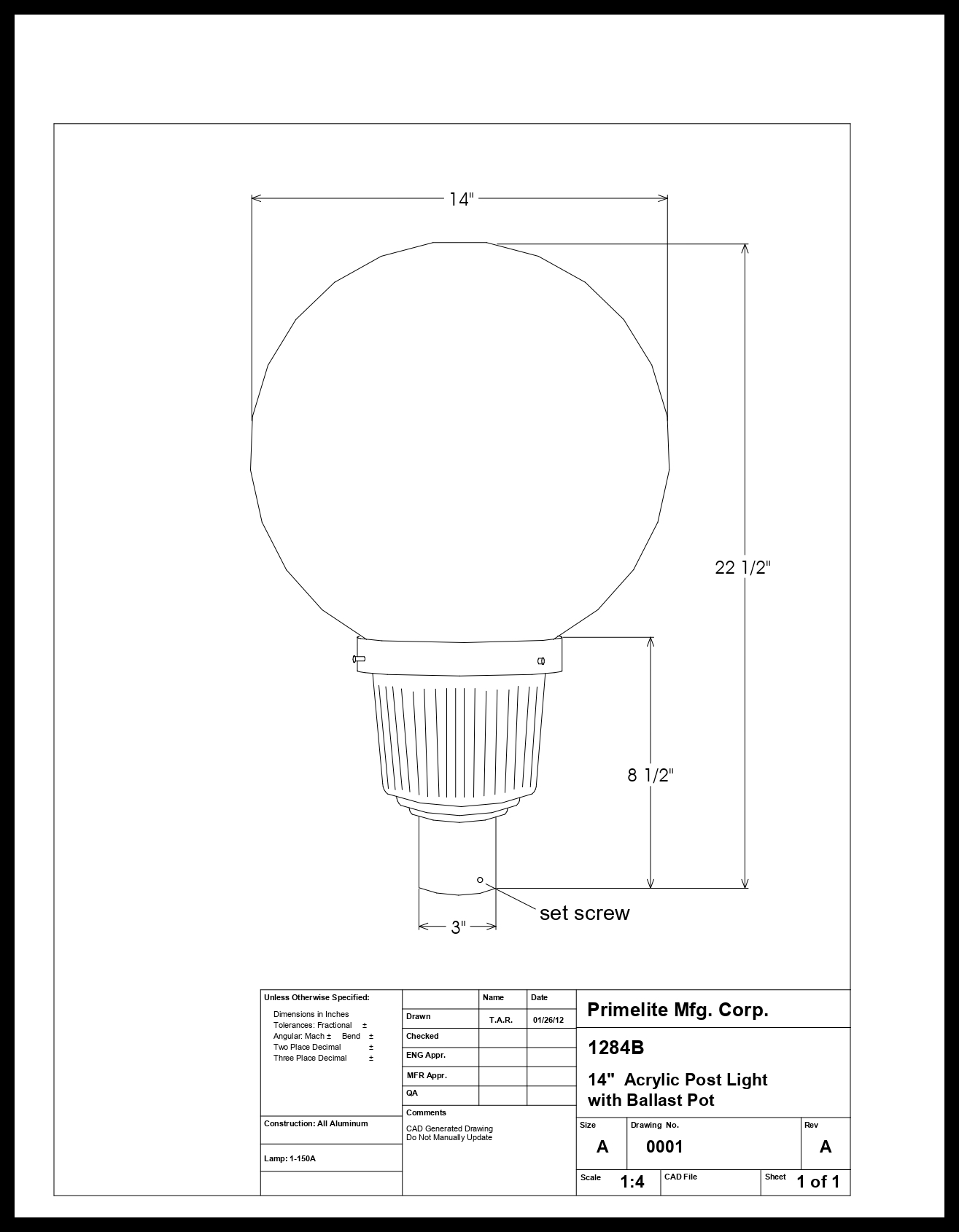

# 1284 B – Technical Drawing

# 1286 B – Technical Drawing

# 1288 B – Technical Drawing

# 1290 B – Technical Drawing

# 1292 B – Technical Drawing

# 1294 B – Technical Drawing

# 1300 B – Technical Drawing

# 1306 B – Technical Drawing

Color Options

Primelite in Color!
Primelite offers a wide selection of colors, 29 dazzling colors! From red, blue, yellow, orange, to our painted metallic finishes; chrome, galvanized, soft nickel and more. All available at no additional cost, except for Verdi Green Rub. Primelite will also work with you when a custom color is needed. Send us a paint chip or a pantone color, and Primelite will deliver the perfect fixture, color and finish!
Colors (powder coated): White, Matte White, Almond, Gray, Black, Black Gloss, Yellow, Orange, Red, Burgundy, Pink, Light Blue, Dark Blue, Navy Blue, Turquoise, Green, Hunter Green, Verdi Green, Soft Nickle, Aluminum, Chrome, Gold, Antique Brass, Copper, Galvanized, Bronze, Bronze Tone, Brown and Verdi Green Rub.
