SuperLex Post Light with Ballast Pot

Superlex Globe with an aluminum ballast pot holder.

Catalog # 1784B-1794B

Product price
Additional options total:
Order total:
Request a Quote
Categories: , , , , , ,

Description

Catalog # 1784 B | 1786 B | 1788 B | 1790 B | 1792 B | 1794 B

Dimensions: Multiple Sizes Available. See Lamp Option for Details.

Construction: Aluminum and Superlex Construction

Finishes: Globe available in Smoke (-1), White (-3), and Clear (-4), |  Custom finish upon request

Lamps: Incandescent

Description: Superlex Globe with an aluminum ballast pot holder.

Features

  • Made in the U.S.A.
  • Aluminum and Superlex Construction
  • Smoke, White, or Clear Globe
  • Number of Sockets: 1
  • Maximum Wattage per Socket: 200-500 Incandescent
  • 150 Watt – 400 Watt HID Maximum
  • Available as LED
  • Mogul Socket Available
  • Over 25 powder-coated finishes
  • UL Listed
  • Mount: Fits over and secures to 3″ round post

Custom Options Available! Contact Us for a Quote

Product Detail

1784 B 14″ Superlex Globe

Globe Diameter: 3″

one 150 Watt maximum HID (Bulb and Ballast not included).
1786 B 16″ Superlex Globe

Globe Diameter: 3″

One 175 Watt maximum HID (Bulb and Ballast not included).
1788 B 18″ Superlex Globe

Globe Diameter: 3″

One 250 Watt maximum HID (bulb and ballast not included).
1790 B 20″ Superlex Globe

Globe Diameter: 3″

One 200 Watt maximum HID (bulb an ballast not included).
1792 B 22″ Superlex Globe

Globe Diameter: 3″

One 250 Watt maximum HID (bulb and ballast not included).
1794 B 24″ Superlex Globe

Globe Diameter: 3″

One 400 Watt maximum HID (bulb and ballast not included).

Cut Sheet

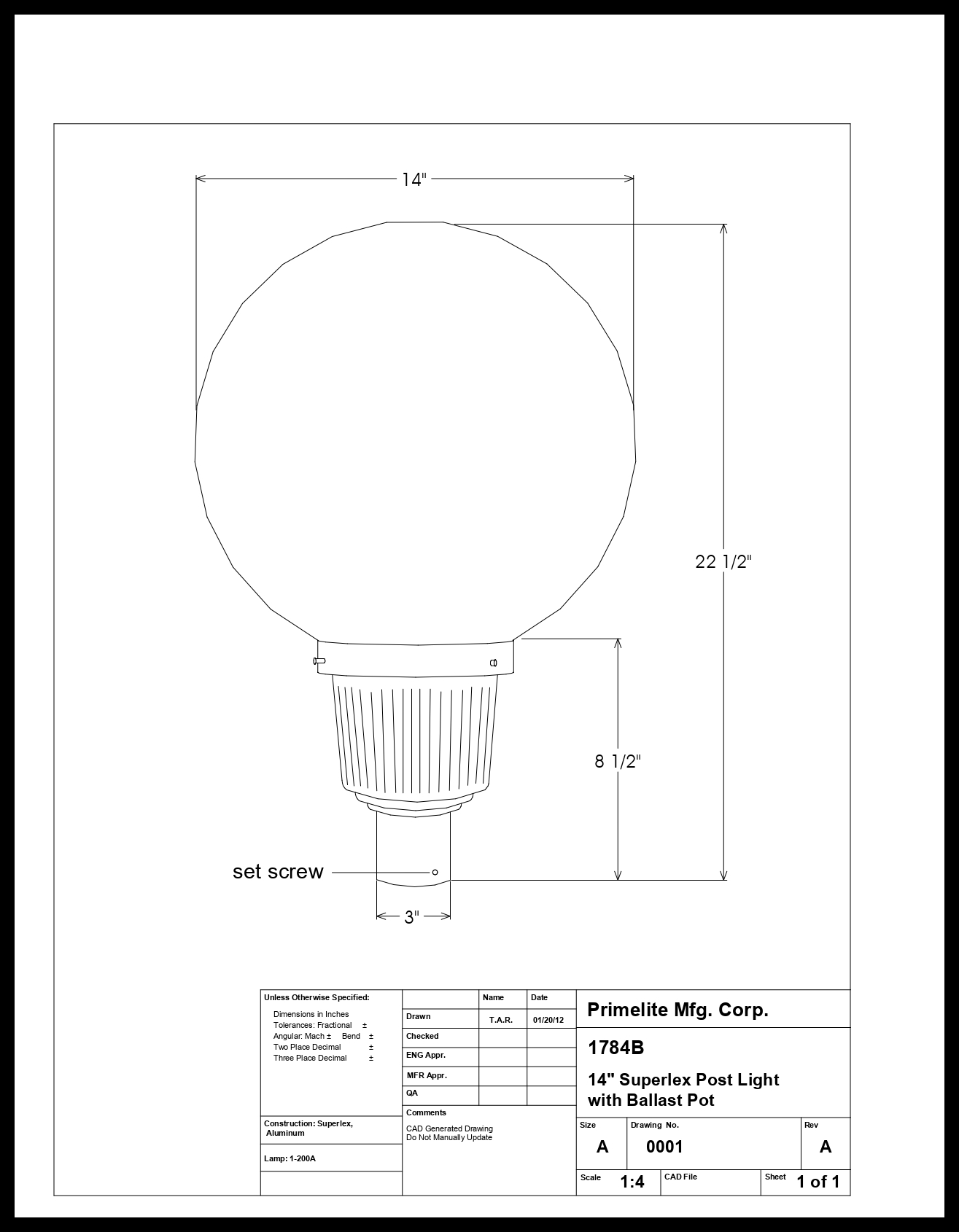

# 1784 B – Technical Drawing

# 1786 B – Technical Drawing

# 1788 B – Technical Drawing

# 1790 B – Technical Drawing

# 1792 B – Technical Drawing

# 1794 N – Technical Drawing

Color Options

Primelite in Color!
Primelite offers a wide selection of colors, 29 dazzling colors! From red, blue, yellow, orange, to our painted metallic finishes; chrome, galvanized, soft nickel and more. All available at no additional cost, except for Verdi Green Rub. Primelite will also work with you when a custom color is needed. Send us a paint chip or a pantone color, and Primelite will deliver the perfect fixture, color and finish!
Colors (powder coated): White, Matte White, Almond, Gray, Black, Black Gloss, Yellow, Orange, Red, Burgundy, Pink, Light Blue, Dark Blue, Navy Blue, Turquoise, Green, Hunter Green, Verdi Green, Soft Nickle, Aluminum, Chrome, Gold, Antique Brass, Copper, Galvanized, Bronze, Bronze Tone, Brown and Verdi Green Rub.
